Overview
Quick Details
- Place of Origin:
- Shanghai, China
- Brand Name:
- SK(ShangKai)
- Model Number:

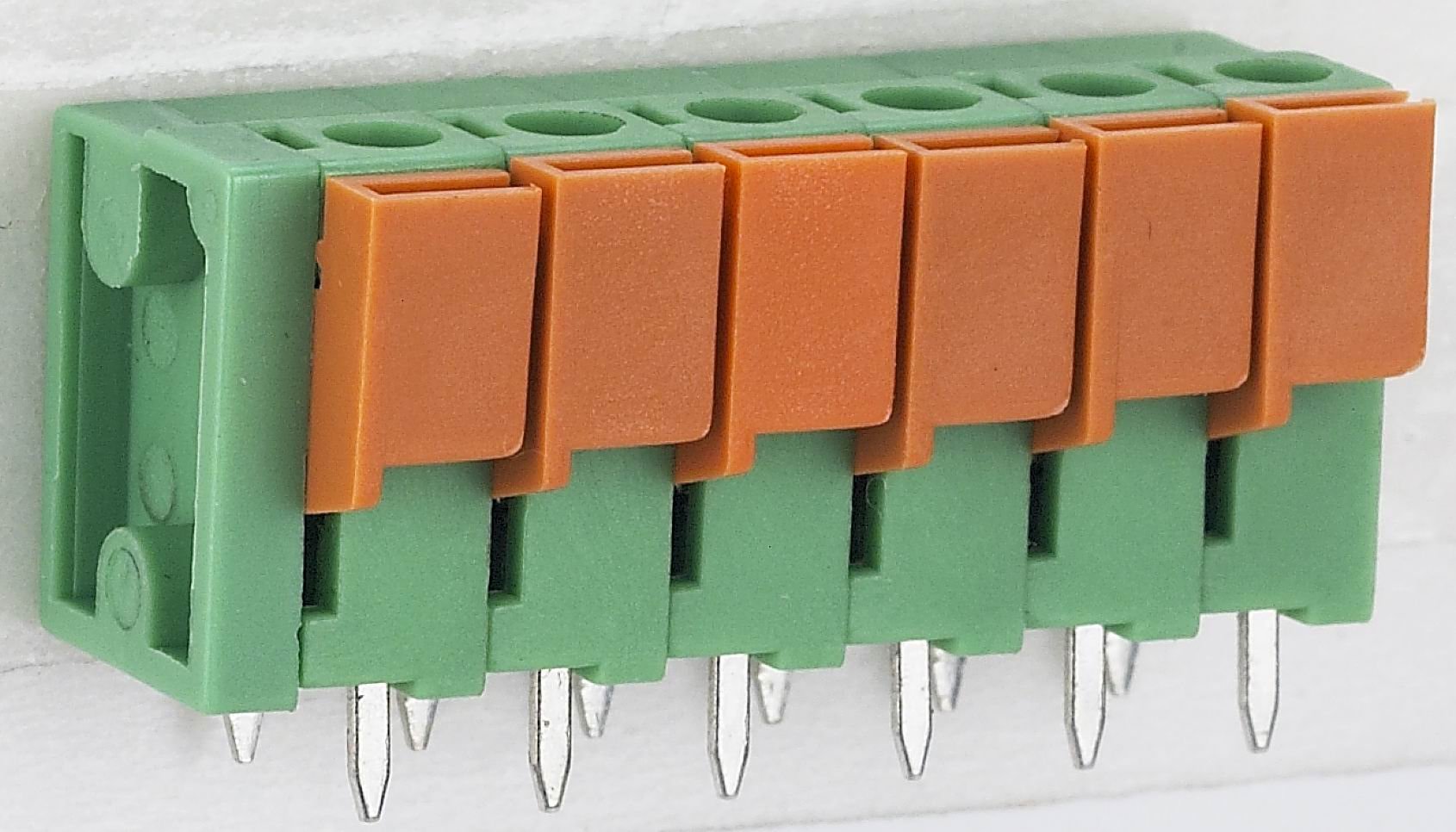

- YC020-508-6P
- Number of Contacts:
- 1 - 10
- Conductor Size:
- 21 - 30 AWG
- Type:
- PCB
- Color:
- Red, Yellow ,Green, Black, White, Blue, Gray, Orange
- Material:
- PA66,UL94V-0
- Current:
- 16A
- Certification:
- CQC CE ROHS
- Poles:
- 2-3
- insulation resistance:
- >5000MΩ DC500V
- Voltage:
- 250V~450V
- Pitch:
- 5.08mm
- MaCare clamp:
- Brass,Tin Plated
- Operation temperature:
- -40℃~+150℃
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 40X40X40 cm
- Single gross weight:
- 0.07 kg
- Package Type:
- Usually we use Bubble bag+Carton,also can change the pacage according to the requirments of customers
- Picture Example:
- Lead Time:
Quantity(Piece) 1 - 2000 >2000 Est. Time(days) 25 To be negotiated
