Click on the image to view the original image
Overview
Quick Details
- Place of Origin:
- Shanghai, China
- Brand Name:
- shangkai(SK)
- Model Number:
- AD16-002L2D-G
- Protection Level:
- IP40
- Max. Current:
- 3A
- Max. Voltage:
- 250V
- Certification:
- CCC,CQC, CE, RoHS, ENEC, UL,KEMA
- Indication voltage::
- 2V, 6V, 12V, 24V, 110V, 220V
- Color:
- red green yellow blue orange white
- Input Voltage:
- 2V,6V,12V,24V,110V,220V
- Operating temperature:
- -5℃~+75℃
- Panel cutout:
- 16mm
- Lamp Body Material:
- Plastic
- name:

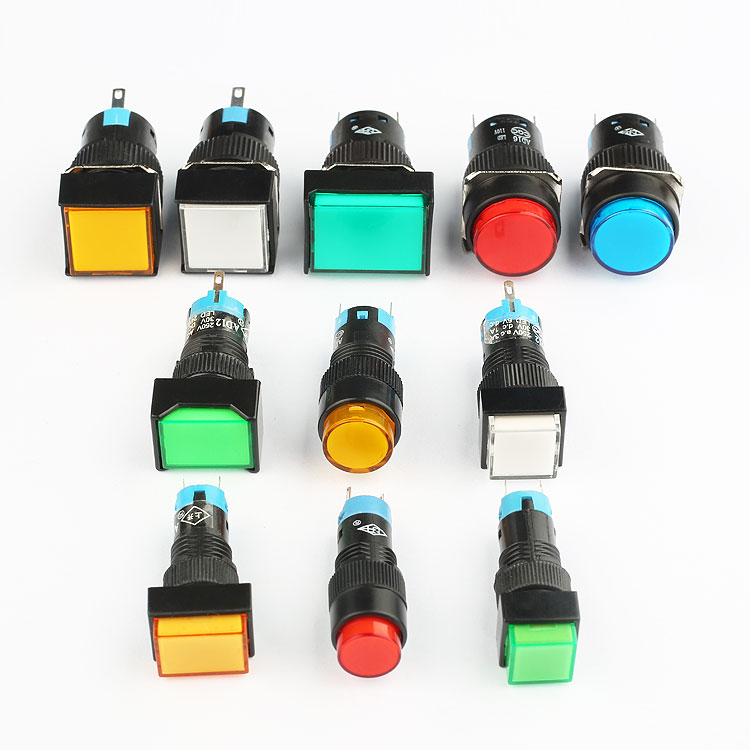

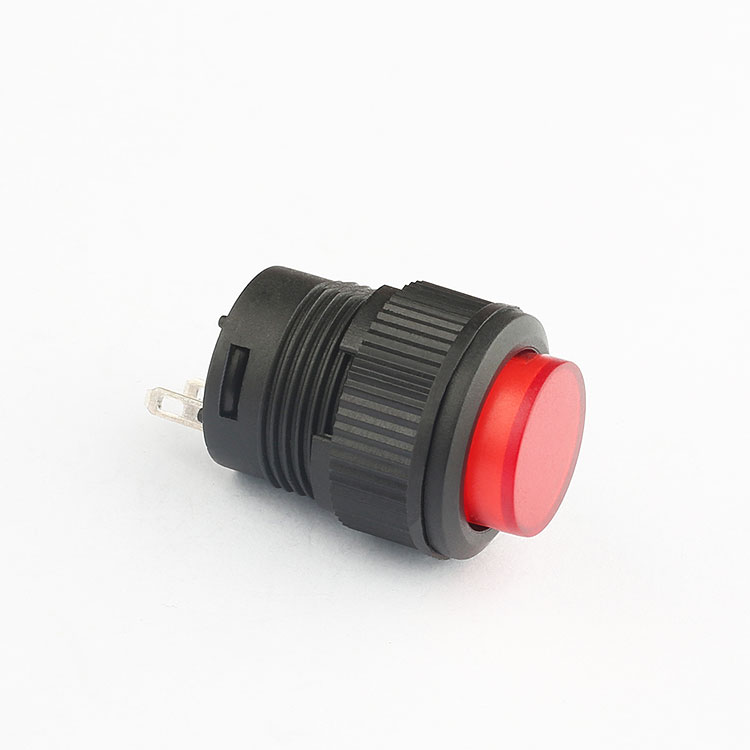

- High quality 16mm/12mm/10mm IP40 mini led push button
- Contact Resistance:
- ≤50mΩ
- Dielectric Strength:
- 1500V
Supply Ability
- Supply Ability:
- 100000 Piece/Pieces per Week Micro Switch Button
Packaging & Delivery
- Packaging Details
- 50Pieces in one box,1000pieces in one Standard export carton for High quality 16mm/12mm/10mm IP40 mini led push button
- Port
- shanghai
