Home > Products > 16a 250v waterproof 2 pin 3 pin ip44 rocker switch

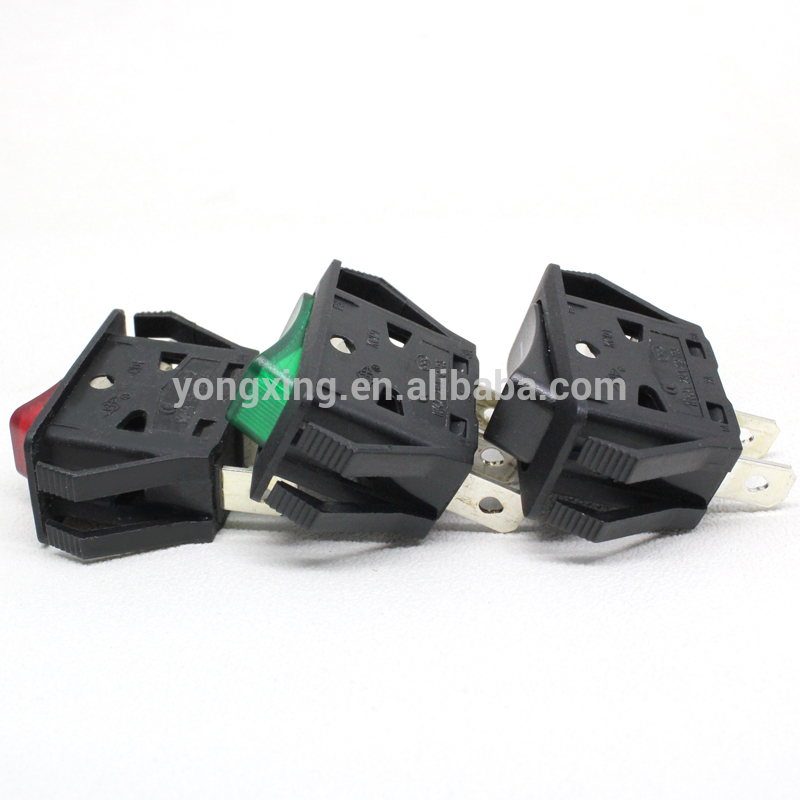

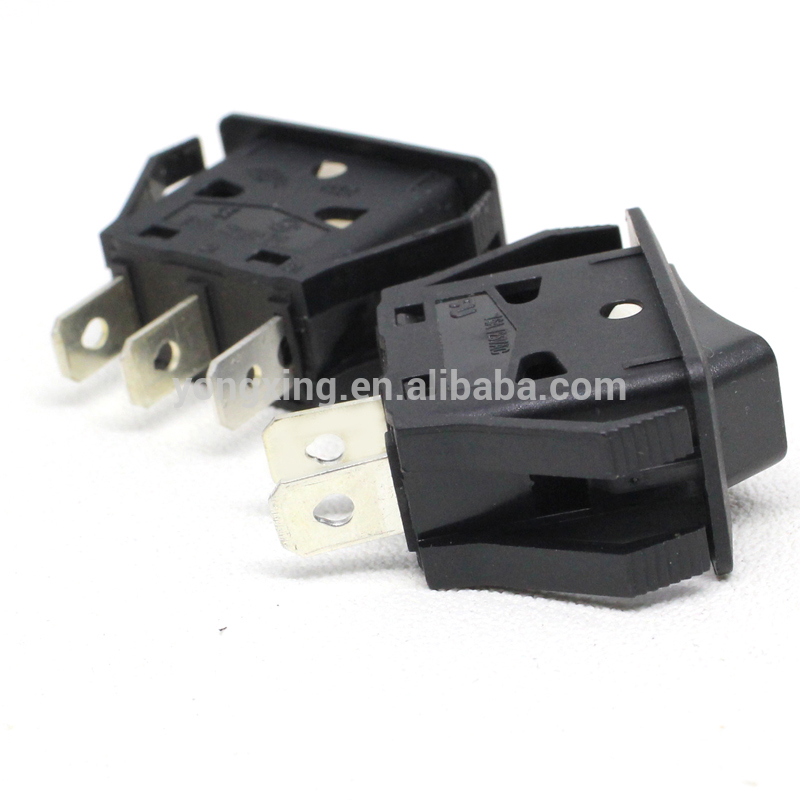

16a 250v waterproof 2 pin 3 pin ip44 rocker switch
Click on the image to view the original image
Product： views：116a 250v waterproof 2 pin 3 pin ip44 rocker switch
Branch： Shangkai
Size： 57X36X33 cm
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-11-19 20:40
  Negotiated
Product Details
Overview
Quick Details
Brand Name:
Shangkai
Model Number:
KCD1
Max. Current:
16A
Max. Voltage:
250V AC
Mechanical Life:
100000 Cycles
Certification:
CQC, CE, UL,RoHs
Actuator color:
red green yellowblue orangeblack gray white
Contact Resistance:
≤50mΩ
Insulation Resistance:
≥1000MΩ
DIELECTRIC STRENGTH:
1500V AC,1min
Lamp voltage:
6 12 24 110 220V
Housing color:
red green yellowblue orangeblack gray white
Function:
SPST
Pins:
2/3

Packaging & Delivery

Selling Units:
Single item
Single package size:
57X36X33 cm
Single gross weight:
13.0 kg
Package Type:
100pcs one bag and 1000 pcs in one master carton
Lead Time:
Quantity(Piece)1 - 1000>1000
Est. Time(days)20To be negotiated
