Overview
Quick Details
- Place of Origin:
- Shanghai, China
- Brand Name:
- Shangkai(SK)
- Model Number:
- YX122-016-3P
- Number of Contacts:
- 2-16
- Conductor Size:
- 22-14
- Type:
- Spring
- name:

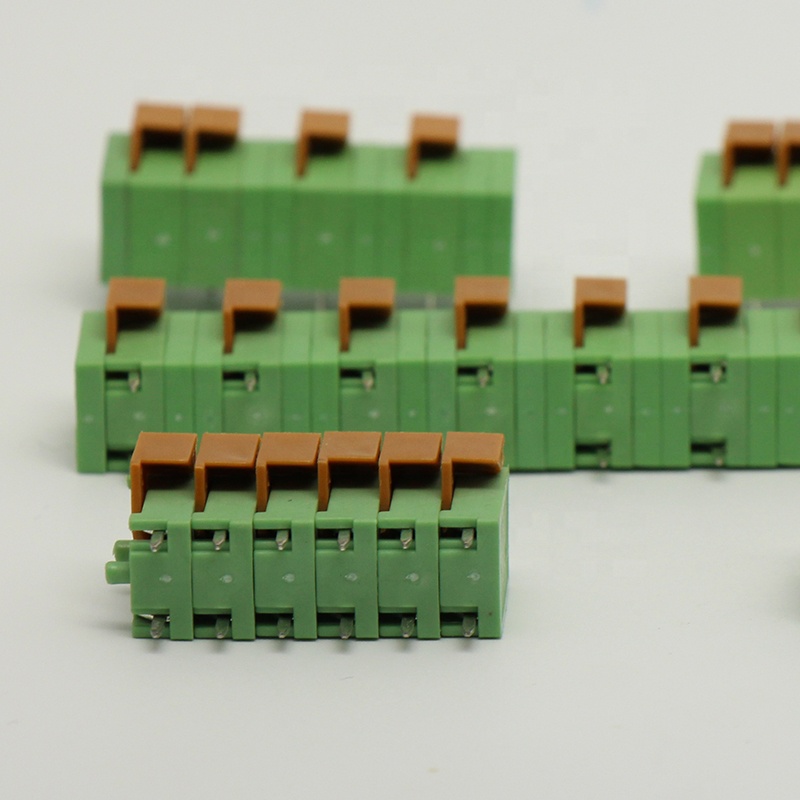

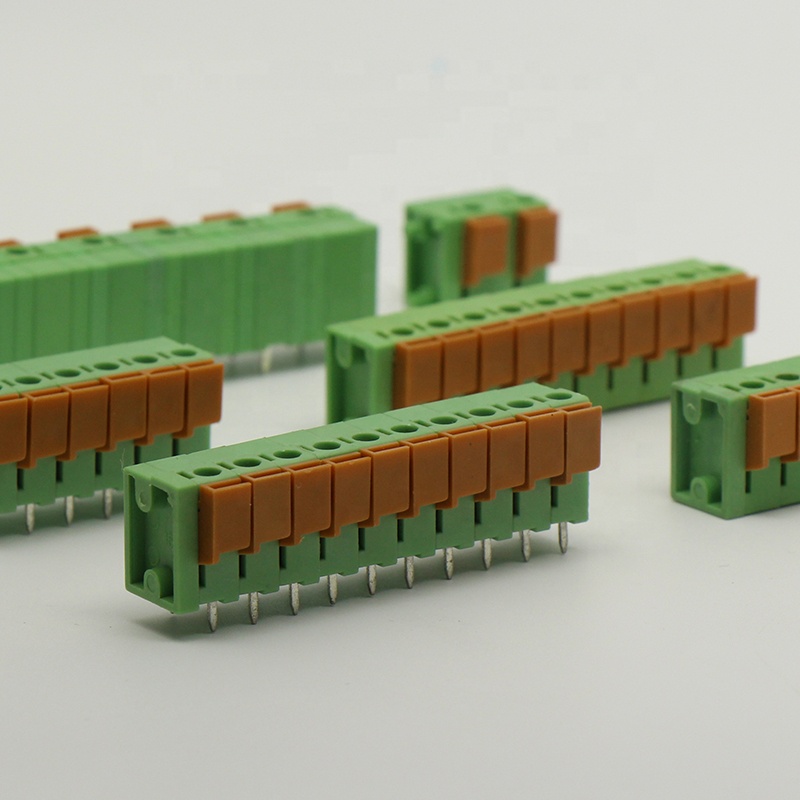

- 8 pin spring terminal block speaker connector8 pin wire connector
- color:
- Red, Yellow ,Green, Black, White, Blue, Gray, Orange
- current:
- 10A
- voltage:
- 300V
- pole:
- 2-16poles
- pitch:
- 10.16mm
- Operation temperature:
- -40℃~+150℃
- Housing:
- PA66,UL94V-0
- Strip length:
- 6-7mm
- insulation resistance:
- >5000MΩ DC500V
Supply Ability
- Supply Ability:
- 10000000 Piece/Pieces per Week
Packaging & Delivery
- Packaging Details
- 8 pin spring terminal block speaker connector8 pin wire connector
100Pieces in one box,1000pieces in one Standard export carton
- Port
- Shanghai
