Home > Products > 24V 12V Normal close reliable water latching washing machine solenoid valve

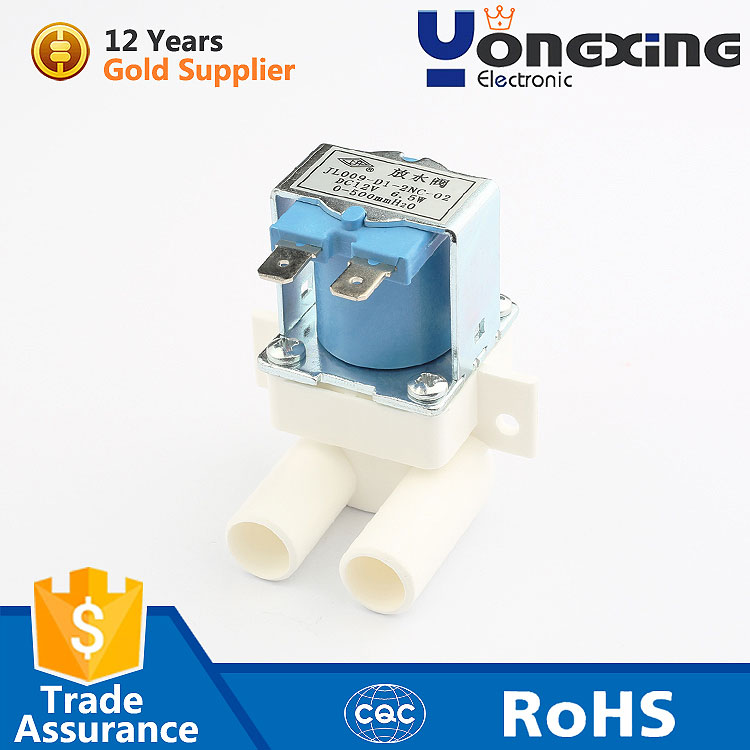

24V 12V Normal close reliable water latching washing machine solenoid valve
Click on the image to view the original image
Product： views：124V 12V Normal close reliable water latching washing machine solenoid valve
Branch： Shangkai
Type： Normal close
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-11-19 20:40
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Shanghai, China
Brand Name:
Shangkai
Model Number:
JL009
Application:
General
Material:
Plastic
Temperature of Media:
60℃
Pressure:
Medium Pressure
Power:
Solenoid
Media:
Water
Port Size:
Standard
Structure:
Shutoff
Standard or Nonstandard:
Standard
Certification:
CCC,CQC, CE, RoHS, UL
Rating voltage:
12VDC,24VDC
Ambient temperature:
-25℃~+55℃
ROHS/Sanitation grade:
Comply with ROHS
Max.Medium Temperature:
60℃
name:
Normal close reliable water latching miniature solenoid valve
Body material:
POM
Port size:
G1/4""3/8"quick connector
Type:
Normal close
Supply Ability
Supply Ability:
10000000 Piece/Pieces per Week Normal close reliable water latching miniature solenoid valve
Packaging & Delivery
Packaging Details
128 pieces in one Standard export carton for 24V 12V Normal close reliable water latchingwashing machine solenoid valve
Port
Shanghai
Lead Time:
Quantity(Pieces)1 - 3000 >3000
Est. Time(days)20To be negotiated
Video Description
Solenoid valve

JL009 Solenoid Valve

USE:

Water purifier

Boiler

Wasging machine

Bidet

Product parameters
Other Products

JL010

JL009

JL008

JL007

JL006

JL003

JL002

JL000


Principle
Straight type,Pilot type
Type
Normal close,Normal open
Rating voltage
12VDC,24VDC,110VAC/50HZ,200-240VAC/50HZ
Medium
Liquid water,Underground water,Juice(No particles)
Max.medium Temp
JL002,JL009,JL010:60℃
JL000,JL003,JL006,JL007,JL008:90℃
Ambient Temp
-25℃~55℃
Interface size
1/4“,3/8"
Insulation class
Class“B"(130℃）/”F“（155℃）/“H”（180℃）
Pressure range
1.0.02-0.8MPa(0.2-8bar)/0.02-1.0MPa(0.2-10bar)
2.M.O.P.D:1200mmH2O(0-0.012Mpa)(Straight typt);0.02-0.8MPa(0.2-8bar)(Pilot type).
3.M.O.P.D:300mmH2O(0-0.003Mpa)(Straight typt)
4.M.O.P.D:500mmH2O(0-0.005Mpa)(Straight typt)
5.Part of the custom
Duty cycle
JL002,JL009,JL010:
100% at 25℃（for medium Temp）;Intermittent operation at 60℃（for medium Temp）

JL000,JL003,JL006,JL007,JL008:
100% at 25℃（for medium Temp）;Intermittent operation at 90℃（for medium Temp）
ROHS/Sanitation grade
Comply with ROHS.Accroding to FDA&drinking water quality for The material of touching the medium.
Port size/amounting
G1/4 fast inssert series
G1/4 quick connector
G1/4 solenoid connector
Hose connection
Our company
Company strength
FAQ

Q1: Why choose your company?
A1: (1) We have all kinds of customized products with professional and exquisite.
(2) Any inquiries will be replied within 24 hours. Our sales team will try our best to support you.
(3) We strictly control every detail of production, and every product is inspected 100% by our QC team before delivery.
Moreover, our production is abided by ISO9001, CQC, CE, UL, RoHS, ENEC and so on.

Q2: What’s the advantages of your company?
A2:(1)30-year experience in manufacturer switches, more than 10-year experience on export.
(2)We design goods for the company of Extron, Midea, Philips, Povos and so on.
(3)Original manufacturer with direct factory price, Competitive & Fashionable
(4)Safe payment terms: T/T
(5)We offer EXW, FOB, CIF, etc.
(6)OEM available, Customers" designs are warmly welcome

Q3:What’s your mainly products?
A3:We Produce and sell high quality electronic switches, more than 20 categories, including pushbutton switches, rocker switches, rotary switches, key lock switches, dip switches, slide switches, refrigerator switches, micro and mini switches, indicators, buzzes, terminal blocks, solenoid valves and so on.

Q4:How do I know that you have sent the products out?
A4:Once the products are sent out, a tracking number will be provided so that you can check where your goods at all times.

Q5:How you will send the goods to us?
A5:For urgent orders, we will send to your door by air. For bulk orders, it’s a good way send to you by sea but will take much time. For small orders, express will be best.We can send the goods to you by DHL, FEDEX, UPS, EMS etc
