Overview
Quick Details
- Place of Origin:
- Shanghai, China
- Brand Name:
- Shining Key (SK)
- Model Number:
- YE040-508-6P
- Number of Contacts:
- 11 - 20
- Conductor Size:
- 11 - 20 AWG
- Type:
- PCB
- Name:

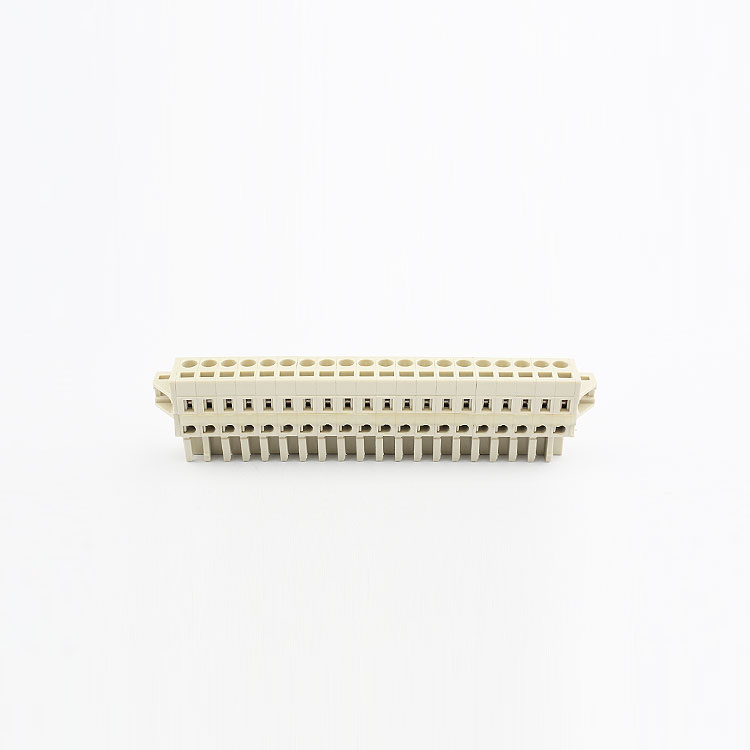

- electrical connector pin connector 8 pin connector
- Care clamp:
- Brass,Ni Plated
- Housing:
- PA66 UL94V-0
- Pitch:
- 5.08mm
- Pole:
- 2-24
- Withstanding voltage:
- AC2000V/Min
- Operation temperature:
- -40℃~+150℃
- Strip length:
- 6-7mm
- insulation resistance:
- >5000MΩ DC500V
- name:
- UL pin connector wire connector 3 pin led strip connector
Packaging & Delivery
- Selling Units:
- Multiple of
- Volume per batch:
- 3000 cm3
- Gross weight per batch:
- 3.0 kg
- Package Type:
- 100pcs in a plastic bag, and then 10pcs bags in a carton box We can customize the carton box as your requirements.
- Lead Time:
Quantity(Piece) 1 - 300000 >300000 Est. Time(days) 20 To be negotiated
