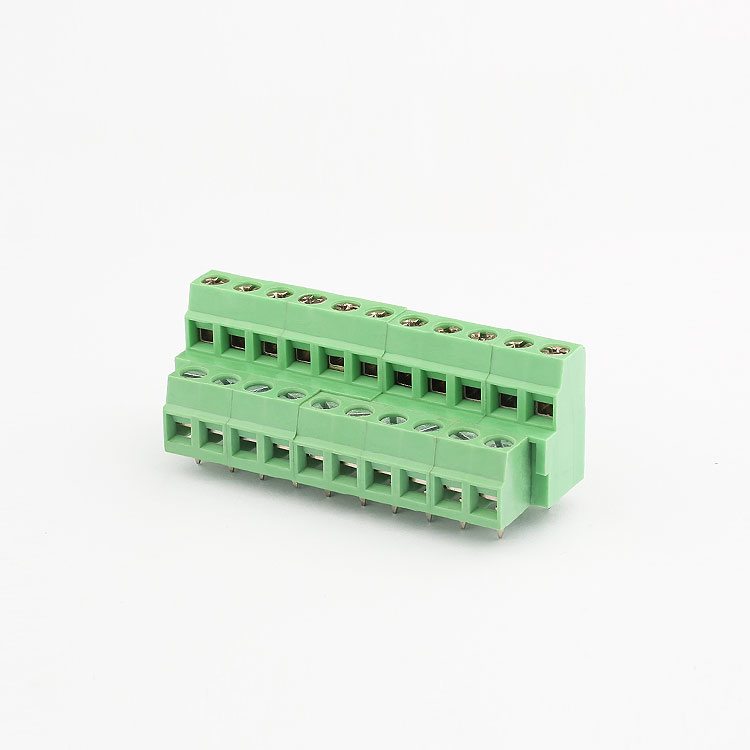

Click on the image to view the original image
Overview
Quick Details
- Place of Origin:
- Shanghai, China
- Brand Name:
- (SK)shangkai
- Model Number:
- YE030-508-8P
- Number of Contacts:
- 2-24
- Conductor Size:
- 11 - 20 AWG
- Type:
- Plug-in
- color:
- Red, Yellow ,Green, Black, White, Blue, Gray, Orange
- dimension:
- 5.08mm
- Current:
- 16A
- Housing:
- PA66,UL94V-0
- Withstanding voltage:
- AC2000V/Min
- Operation temperature:
- -40℃~+150℃
- Certification:
- CCC,CQC, CE, RoHS, ENEC, UL,KEMA
- insulation resistance:
- >5000MΩ DC500V
- name:
- power cable terminal block
- Short-time temperature:
- +250°C for 5 sec
Supply Ability
- Supply Ability:
- 1000000 Piece/Pieces per Week of Hot sale power cable terminal block
Packaging & Delivery
- Packaging Details
- Hot sale power cable terminal block of 100Pieces in one box,1000pieces in one Standard export carton
- Port
- Shang Hai
- Picture Example:
- Lead Time:
Quantity(Pieces) 1 - 3000 >3000 Est. Time(days) 25 To be negotiated
