Overview
Quick Details
- Place of Origin:
- Shanghai, China
- Brand Name:
- SK(shangkai)
- Model Number:
- YE160-508
- Number of Contacts:
- 2-24
- Conductor Size:
- 11 - 20 AWG
- Type:
- Plug-in
- Color:
- Red, Yellow ,Green, Black, White, Blue, Gray, Orange
- Current:
- 16A
- Certification:
- CCC,CQC, CE, RoHS, ENEC, KEMA
- Poles:
- 2-24poles
- Operation temperature:
- -40℃~+150℃
- Withstanding voltage:
- AC2000V/Min
- Strip length:
- 6-7mm
- Housing:
- PA66,UL94V-0
- insulation resistance:
- >5000MΩ DC500V
- name:

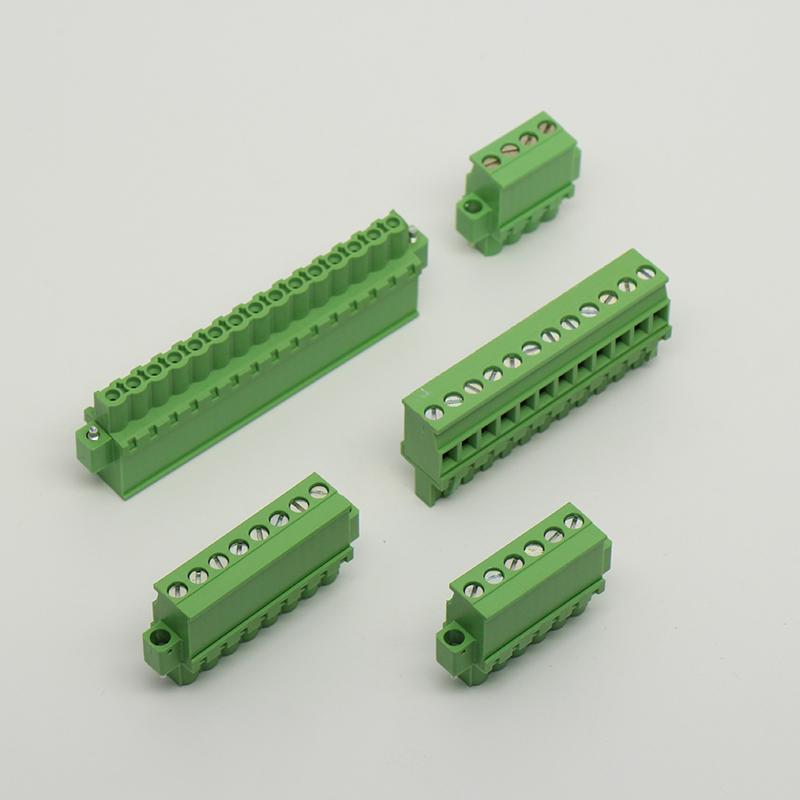

- terminal block electrical terminal connector wiring connector
Supply Ability
- Supply Ability:
- 100000 Piece/Pieces per Month
Packaging & Delivery
- Packaging Details
- 100pcs in a plastic bag, and then 10pcs bags in a carton box
We can customize the carton box as your requirements.
- Port
- Shanghai
- Picture Example:
- Lead Time:
Quantity(Pieces) 1 - 30 >30 Est. Time(days) 25 To be negotiated
