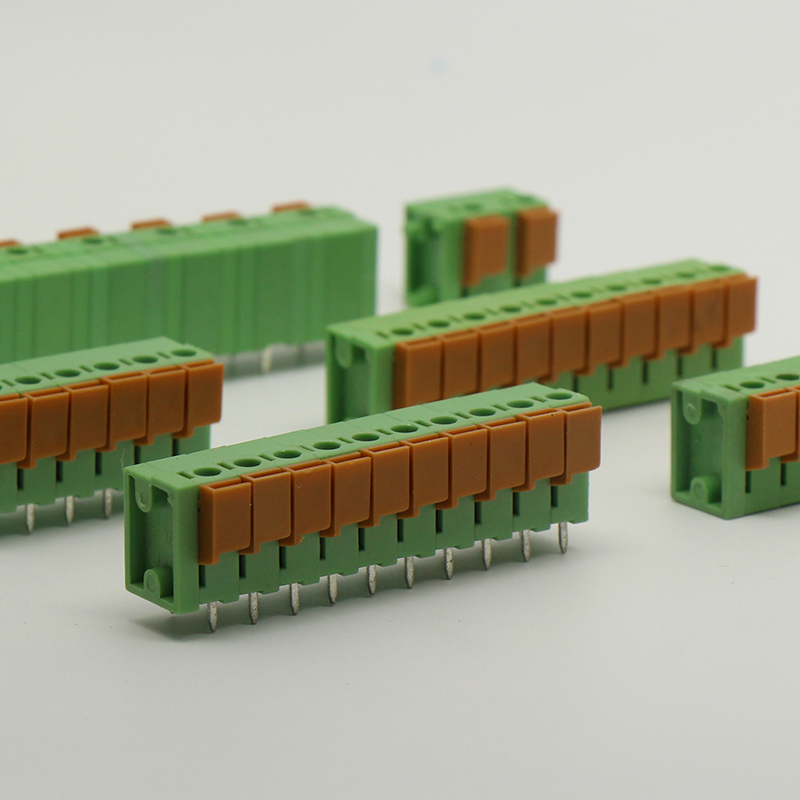

Click on the image to view the original image
Overview
Quick Details
- Place of Origin:
- Shanghai, China
- Brand Name:
- SK(ShangKai)
- Model Number:
- YC020-508-3P
- Number of Contacts:
- 1 - 10
- Conductor Size:
- 5 - 10 AWG
- Type:
- PCB
- Color:
- Red, Yellow ,Green, Black, White, Blue, Gray, Orange
- Certification:
- CCC,CQC, CE, RoHS, ENEC, KEMA
- Current:
- 16A
- Voltage:
- 300V AC
- Care clamp:
- brass, tin plated
- Pitch:
- 5.00mm 5.08mm
- Pole:
- 2-5poles
- insulation resistance:
- >5000MΩ DC500V
- name:
- 16 amp terminal block
- Operation temperature:
- -40℃~+150℃
Supply Ability
- Supply Ability:
- 10000000 Piece/Pieces per Week 100 amp terminal block
Packaging & Delivery
- Packaging Details
- 100Pieces in one box,1000pieces in one Standard export carton
- Port
- Shanghai
- Picture Example:
![package-img]()
![package-img]()
- Lead Time:
Quantity(Pieces) 1 - 3000 >3000 Est. Time(days) 25 To be negotiated

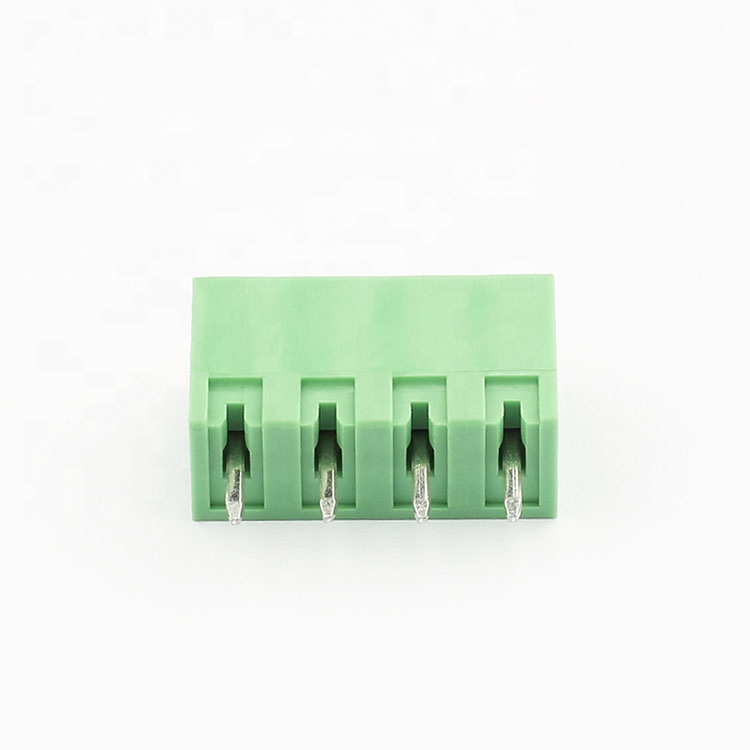

factory high quality pcb screw 2-24pin terminal block / 16 amp terminal block
Product Description
| Material | |
| Contact | Brass, Tin Plated |
| Housing | PA66 ,UL94V-0 |
| Color | Green 10 pin connectors |
| Environmental | |
| Operating temperature | -40°C ~ 150°C |
| Short-time temperature | +250°C for 5 sec |
| Electrical | |
| Rated voltage | 300V |
| Rated current | 16A screw clamp wire connectors |
| Contact resistance | 20mΩ |
| Insulation resistance | >5000MΩ DC500V |
| Withstanding voltage | AC2000V/Min terminal connectors |
