Overview
Quick Details
- Place of Origin:
- Shanghai, China
- Brand Name:
- SK(ShangKai)
- Model Number:
- YB of 2 pin 12v green electrical busbar connectors terminal blocks
- Number of Contacts:
- 2-27
- Conductor Size:
- 26-14WAG
- Type:
- PCB
- Product name:

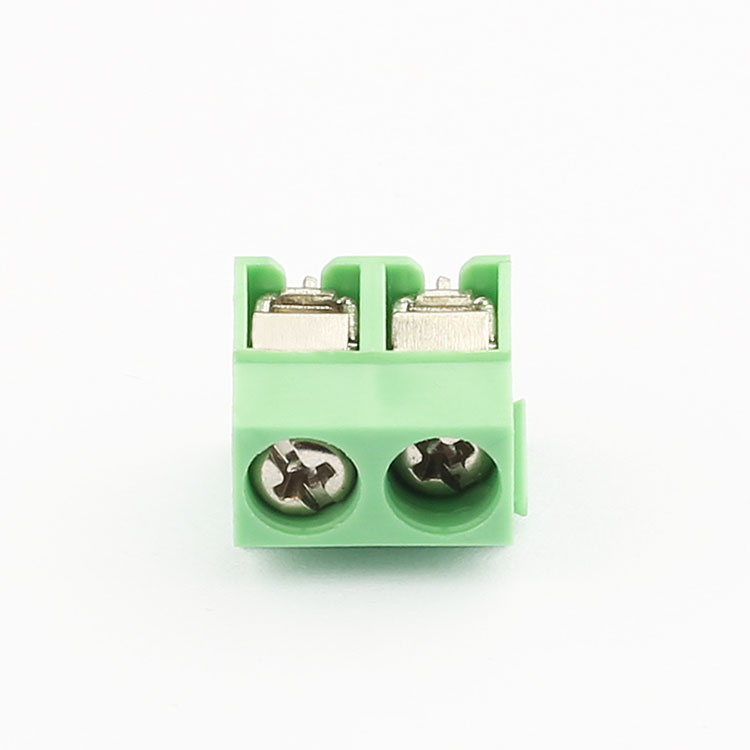

- 2 pin 12v green electrical busbar connectors terminal blocks
- Color:
- Green2 pin 12v connectors
- Pitch:
- 3.5mm/3.81mm
- Material:
- PA66plastic
- Rated voltage:
- 300Velectrical busbar connectors
- Rated Current:
- 16A
- Poles:
- 2P-24P
- Certificate:
- CQCterminal blocks
- Screw:
- Copper Zin plated
- Contatct resistance:
- 20mΩ
Supply Ability
- Supply Ability:
- 10000000 Piece/Pieces per Week of 2 pin 12v green electrical busbar connectors terminal blocks
Packaging & Delivery
- Packaging Details
- 100Pieces in one box,1000pieces in one Standard export carton
2 pin 12v green electrical busbar connectors terminal blocks,
terminal block
- Port
- Shang Hai
