Click on the image to view the original image
- Place of Origin:
- Shanghai, China
- Brand Name:
- (SK)shangkai
- Model Number:
- YE430-381-12P
- Number of Contacts:
- 2-24
- Conductor Size:
- 5 - 10 AWG
- Type:
- Plug-in
- current:
- 12A 300V
- care clamp:
- Brass,Ni Plated
- housing:
- PA66 UL94V-0
- pitch:
- 3.81mm
- pole:
- 2-24
- Operation temperature:
- -40℃~+150℃
- Certification:
- CCC,CQC, CE, RoHS, ENEC, KEMA
- Color:
- Red, Yellow ,Green, Black, White, Blue, Gray, Orange
- insulation resistance:
- >5000MΩ DC500V
- Name:
- Hot sales of 3.81mm 12A 300V PCBterminal block connector
- Supply Ability:
- 10000000 Piece/Pieces per Week
- Packaging Details
- Hot sales of 3.81mm 12A 300V PCBterminal block connectorthe packing is 100Pieces in one box,1000pieces in one Standard export carton
- Port
- Shanghai
- Picture Example:
![package-img]()
![package-img]()
- Lead Time:
Quantity(Pieces) 1 - 3000 >3000 Est. Time(days) 25 To be negotiated

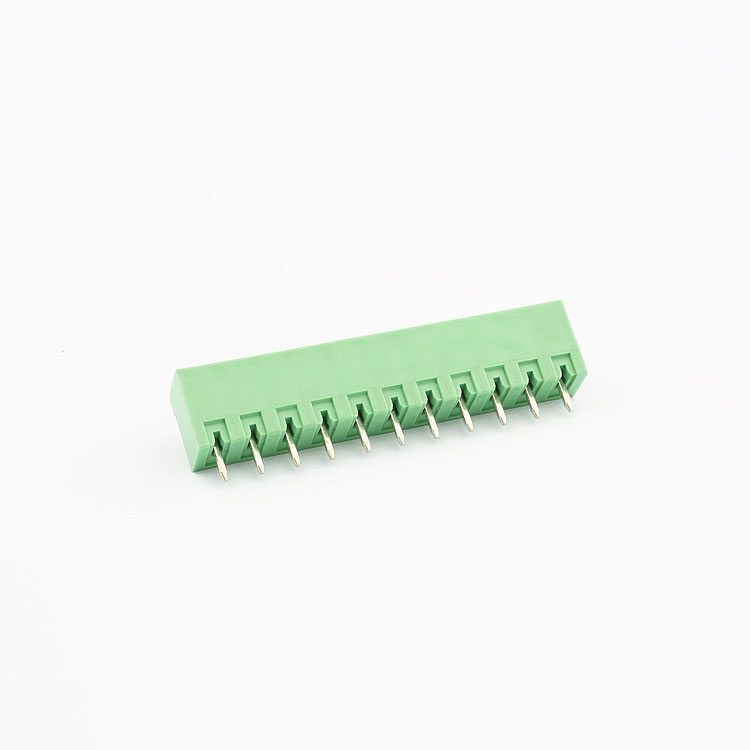

sampls for free 3.81mm 12A 300V PCB plastic green terminal block connector
| Material | |
| Contact | Brass, Tin Plated |
| Housing | PA66 ,UL94V-0 |
| Color | Green 10 pin connectors |
| Environmental | |
| Operating temperature | -40°C ~ 150°C |
| Short-time temperature | +250°C for 5 sec |
| Electrical | |
| Rated voltage | 300V |
| Rated current | 16A screw clamp wire connectors |
| Contact resistance | 20mΩ |
| Insulation resistance | >5000MΩ DC500V |
| Withstanding voltage | AC2000V/Min terminal connectors |
It has passed the certification of ISO9001:2008 Quality Management System and many of its products have passed the quality certification of authoritative certification bodies such as CQC,UL and ENEC,CE,ROHS.
Q1: Why choose your company?
A1:(1) We have all kinds of customized products with professional and exquisite.
(2) Any inquiries will be replied within 24 hours. Our sales team will try our best to support you.
(3) We strictly control every detail of production, and every product is inspected 100% by our QC team before delivery.Moreover, our production is abided by ISO9001,CQC, CE, UL, RoHS, ENEC and so on.
Q2: What’s the advantages of your company?
A2:(1) 30-year experience in manufacturer switches, more than 10-year experience on export.
(2) We design goods for the company of Extron, Midea, Philips, Povos and so on.
(3) Original manufacturer with direct factory price, Competitive & Fashionable
(4) Safe payment terms: T/T
(5) We offer EXW, FOB, CIF, etc.
(6) OEM available, Customers" designs are warmly welcome.
Q3:What’s your mainly products?
A3:We Produce and sell high quality electronic switches, more than 20 categories, including pushbutton switches, rocker switches, rotary switches, key lock switches, dip switches, slide switches, refrigerator switches, micro and mini switches, indicators,buzzers, terminal blocks, solenoid valves and so on.
Q4:How do I know that you have sent the products out?
A4:Once the products are sent out, a tracking number will be provided so that you can check where your goods at all times.
Q5:How you will send the goods to us?
A5:For urgent orders, we will send to your door by air. For bulk orders, it’s a good way send to you by sea but will take much time. For small orders, express will be best. We can send the goods to you by DHL, FEDEX, UPS, EMS etc
Send your inquiry Detail in the Below for free samples,Click “Send” NOW
