Overview
Quick Details
- Place of Origin:
- Shanghai, China
- Brand Name:
- SK(ShangKai)
- Model Number:
- YB422B-508-3P
- Number of Contacts:
- 1 - 10
- Conductor Size:
- 5 - 10 AWG
- Type:
- PCB
- Color:
- green
- Housing:
- PA66,UL94V-0
- Dimension:
- 3.00/3.08/5.00/5.08/7.62mm
- Pole:
- 2-3POLES
- Certification:
- CCC,CQC, CE, RoHS, ENEC, KEMA
- insulation resistance:
- >5000MΩ DC500V
- Contact resistance:
- 20mΩ screw clamp wire connectors
- Name:
- terminal block pluggable terminal block screw terminal block
- Rated voltage:
- 300V
- Rated Current:
- 12A terminal connectors
Supply Ability
- Supply Ability:
- 100000 Piece/Pieces per Month
Packaging & Delivery
- Packaging Details
- 100pcs in a plastic bag, and then 10pcs bags in a carton box
We can customize the carton box as your requirements.
- Port
- Shanghai
- Picture Example:
![package-img]()
![package-img]()
- Lead Time:
Quantity(Pieces) 1 - 3000 >3000 Est. Time(days) 25 To be negotiated

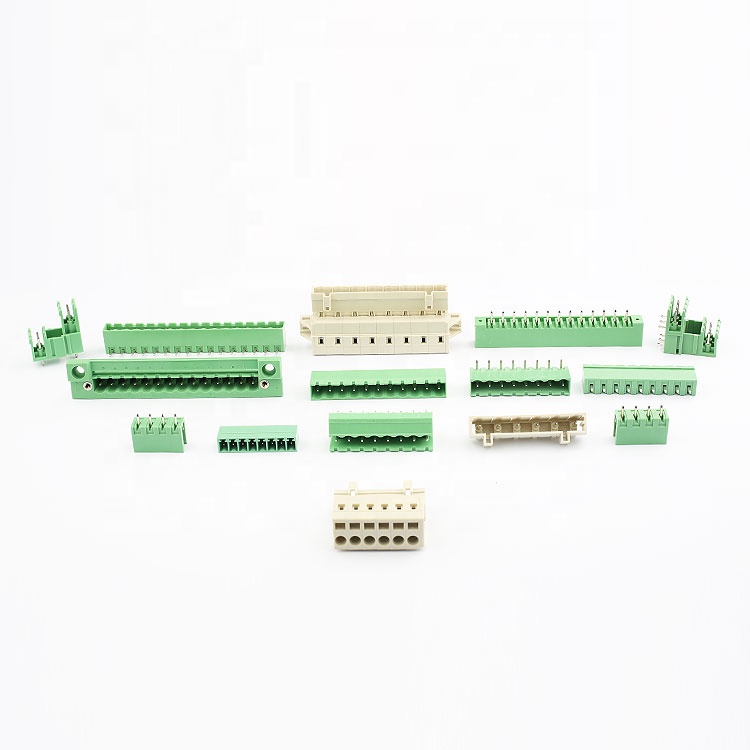

factory supplier 2 3 4 Pole 5mm Pitch PCB Mount pluggable terminal block
Product Description
| Material | |
| Contact | Brass, Tin Plated |
| Housing | PA66 ,UL94V-0 |
| Color | Green 10 pin connectors |
| Environmental | |
| Operating temperature | -40°C ~ 150°C |
| Short-time temperature | +250°C for 5 sec |
| Electrical | |
| Rated voltage | 300V |
| Rated current | 16A screw clamp wire connectors |
| Contact resistance | 20mΩ |
| Insulation resistance | >5000MΩ DC500V |
| Withstanding voltage | AC2000V/Min terminal connectors |
Packaging & Shipping
Please contact our online customer service if you want know more information
