Click on the image to view the original image
- Place of Origin:
- Shanghai, China
- Brand Name:
- SK(ShangKai)
- Model Number:
- key push button switch
- Max. Current:
- 15A
- Max. Voltage:
- 380V AC
- name:
- 10A380V 22mm3 position key switch
- Certificate:
- CQC ,CE .ROSH
- Protection Level:
- IP65
- Position:
- 2/3position
- Current:
- 10/15A
- Life:
- 300,000 for latching, 1,000,000 for momentary
- Contact Resistance:
- ≤50mΩ
- Insulation Resistance:
- ≥100MΩ
- Dielectric Strength:
- 2,500V
- Max.Rating Current&Voltage:
- 10A660V AC
- Supply Ability:
- 10000000 Piece/Pieces per Week of 22mm 1normal close machine 3 position key push button switch

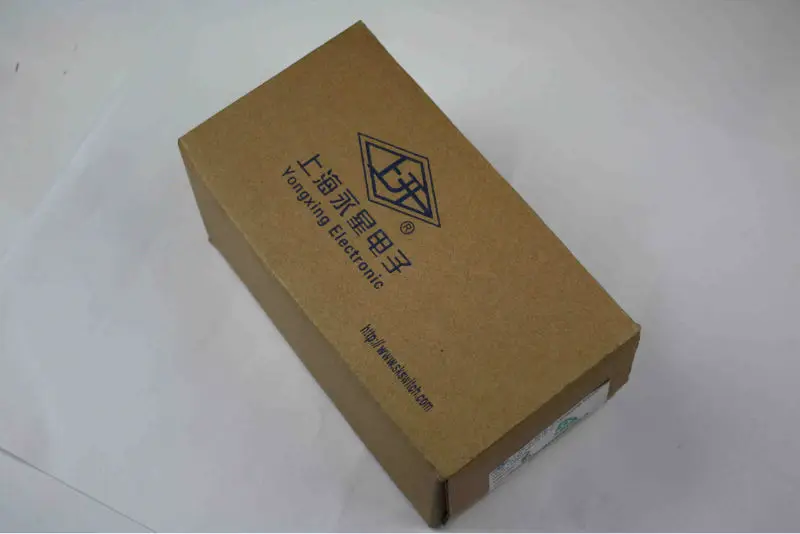

- Packaging Details
- 10A380V 22mm3 position key switch the packing is
10Pieces in one box,1000pieces in one Standard export carton
push button switch
- Port
- Shanghai
- Picture Example:
![package-img]()
![package-img]()
- Lead Time:
Quantity(Pieces) 1 - 2000 >2000 Est. Time(days) 15 To be negotiated

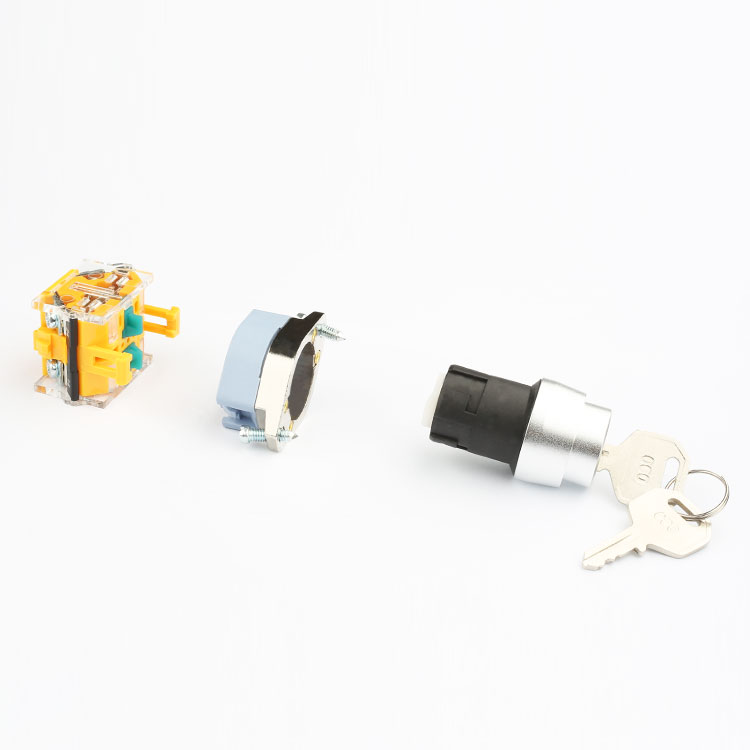

provide samples for free 10A 380V 22mm 3 position big key switch lock on off
| Operating temperature | -25°c~+55°c |
| Installation group | III Class |
| Degree of pollution | Level 3 |
| Installation height | ≤2000m |
| Vibration | 10~200HZ.1mm.15g |
| Relative humidity | ≤98% |
| Protection degree | IP40 or IP65 or IP67 |
| Rated Insulation Voltage | AC660V |
| Rated Thermal current | 10A |
| Max insulation voltage | 2500V/min |
| Usage Category | AC-15 DC-13 |
| Pusgbutton Mushrrom-head pushbutton&illuminated pushbutton actuator | 1 million |
| Rotary switch,Key switches&Maintained action actuator | 0.3 million |
Shanghai Yongxing Electronic Switch CO.,Ltd,founded in 1985.We provide: button switches,ship type switches,seesaw switches,connecting terminals,micro-switches,refrigeraror door switches,small-size toggle witches,indicator lights,fuse holders,junction boxes and buzzers and there are more than 4,000 kinds of derived productions.The productions are widely applied to various fields such as electronics,electrical appliance and instruments,communication,audio and video,household appliances and medical equipment.
Our quality policy is:"Make progress by Technology,Create Brand by Quality".You have seen our successful past and we are striving to achieve what you expect.Let us go hand in hand and make sincere cooperation for a glorious future.
1 provide the samples.
2 Professional pre-sales team, to provide comprehensive product solutions and friendly factory price.
3 Independent customer service, Rapid response, we"ll do what"s necessary to remedy your problem.
4 Emergency contact, our cell phones to keep online.
It has passed the certification of ISO9001:2008 Quality Management System and many of its products have passed the quality certification of authoritative certification bodies such as CQC,UL and ENEC,CE,ROHS.
Q1: Why choose your company?
A1:(1) We have all kinds of customized products with professional and exquisite.
(2) Any inquiries will be replied within 24 hours. Our sales team will try our best to support you.
(3) We strictly control every detail of production, and every product is inspected 100% by our QC team before delivery.Moreover, our production is abided by ISO9001, CQC, CE, UL, RoHS, ENEC and so on.
Q2: What’s the advantages of your company?
A2:(1) 30-year experience in manufacturer switches, more than 10-year experience on export.
(2) We design goods for the company of Extron, Midea, Philips, Povos and so on.
(3) Original manufacturer with direct factory price, Competitive & Fashionable
(4) Safe payment terms: T/T
(5) We offer EXW, FOB, CIF, etc.
(6) OEM available, Customers" designs are warmly welcome.
Q3:What’s your mainly products?
A3:We Produce and sell high quality electronic switches, more than 20 categories, including pushbutton switches, rocker switches, rotary switches, key lock switches, dip switches, slide switches, refrigerator switches, micro and mini switches, indicators, buzzes, terminal blocks, solenoid valves and so on.
Q4:How do I know that you have sent the products out?
A4:Once the products are sent out, a tracking number will be provided so that you can check where your goods at all times.
Q5:How you will send the goods to us?
A5:For urgent orders, we will send to your door by air. For bulk orders, it’s a good way send to you by sea but will take much time. For small orders, express will be best. We can send the goods to you by DHL, FEDEX, UPS, EMS etc
