Overview
Quick Details
- Place of Origin:
- Shanghai, China
- Brand Name:
- Yongxing
- Model Number:
- KD2-B2
- Protection Level:
- IP40
- Max. Current:
- 3A
- Max. Voltage:
- 250V AC
- name:
- Shanghai Yongxing KD2
- Operating temperature:
- -25℃~+55℃
- Material:
- plastic Push Button Switch
- Electric LIfe:
- 10000 cycles
- Mechanical Life:
- 50000 cycles
- Max Rating Current & Voltage:
- 3A 250V AC
- Contact resistance:
- ≤50mΩ
- Insulation Resistance:
- ≥100MΩ
- Dieelectric Strength:
- 1500V

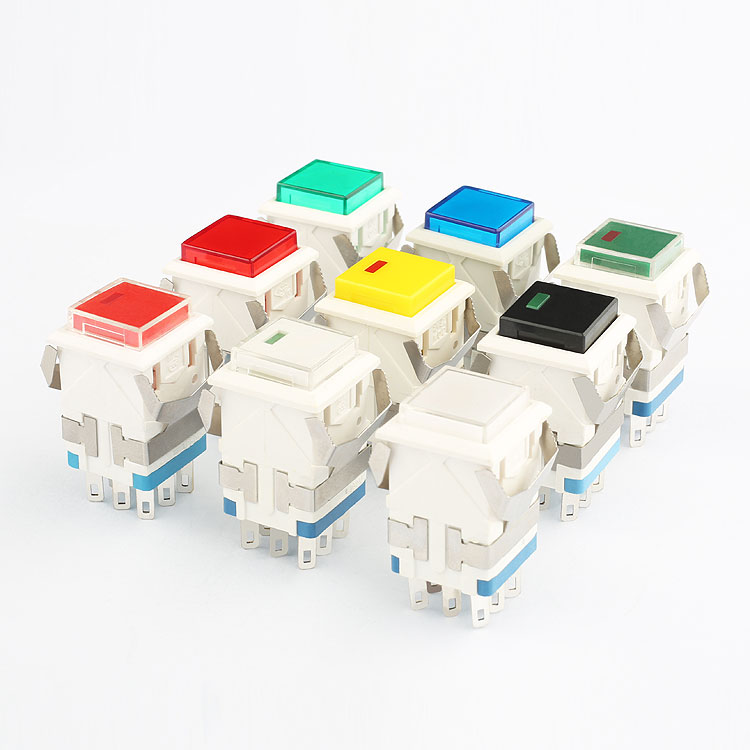

- LED color:
- Red.yellow.green.white.blue
Supply Ability
- Supply Ability:
- 100000 Piece/Pieces per Year ofElectronic Auto Reset Momentary Push Button S
Packaging & Delivery
- Packaging Details
- Surface Illuminated Electronic Auto Reset Momentary Push Button Switch
25pieces in one tray,
Push Button Switch
- Port
- Shanghai
- Picture Example:
- Lead Time:
Quantity(Pieces) 1 - 3000 >3000 Est. Time(days) 30 To be negotiated
