Home > Products > 22mm key changeover switch 3 way rotary switch 3 position key switch

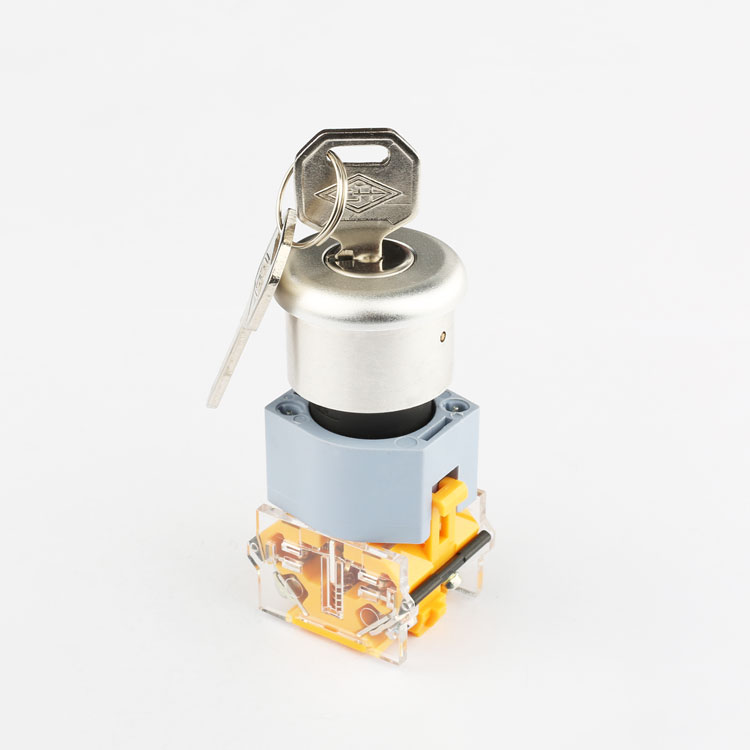

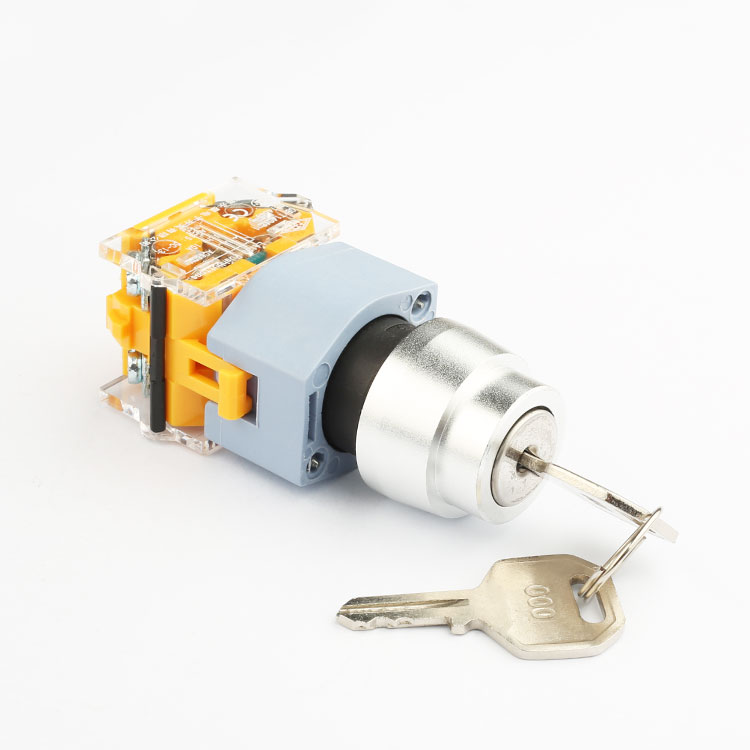

22mm key changeover switch 3 way rotary switch 3 position key switch
Click on the image to view the original image
Product: views:522mm key changeover switch 3 way rotary switch 3 position key switch
Branch: shangkai
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-11-19 20:40
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Shanghai, China
Brand Name:
shangkai
Model Number:
LA133-A2.Y
Max. Current:
10A
Max. Voltage:
660V
certification:
CQC, CE, RoHS
Supply Ability
Supply Ability:
1000000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
10Pieces in one box,1000pieces in one Standard export carton
Port
Shanghai
Lead Time:
Quantity(Pieces)1 - 1000 >1000
Est. Time(days)20To be negotiated

22mm key changeover switch 3 way rotary switch 3 position key switch



Product Description



Operating temperature-25°c~+55°c
Installation groupIII Class
Degree of pollutionLevel 3
Installation height≤2000m
Vibration10~200HZ.1mm.15g
Relative humidity≤98%
Protection degreeIP40 or IP65 or IP67
Rated Insulation VoltageAC660V
Rated Thermal current10A
Max insulation voltage2500V/min
Usage CategoryAC-15  DC-13
Pusgbutton Mushrrom-head pushbutton&illuminated pushbutton actuator1 million
Rotary switch,Key switches&Maintained action actuator0.3 million



Company Information
Company was founded in 1985, The company has a history of 30 years.which is famous switch manufacturer in China, and has 650 employees with 60 engineer. 20 workshops, 80pcs injection molding machines. Perfect quality control.
Please view our factory and company video.



Our quality policy is:"Make progress by Technology,Create Brand by Quality".You have seen our successful past and we are striving to achieve what you expect.Let us go hand in hand and make sincere cooperation for a glorious future.



More types products













Certifications

It has passed the certification of ISO9001:2008 Quality Management System and many of its products have passed the quality certification of authoritative certification bodies such as CQC,UL and ENEC,CE,ROHS.

Packaging & Shipping

We supply sample service and the sample can be sent to u by express very fast, please contact us.



Our bulk goods are usually shipped by sea, and will arrive in 30days, if u set a small order, we can ship them by express or air.
