Overview
Quick Details
- Place of Origin:
- Shanghai, China
- Brand Name:
- ShangKai(SK)
- Model Number:
- KA5
- Protection Level:
- IP40
- Max. Current:
- 1A
- Max. Voltage:
- 250V
- Name:

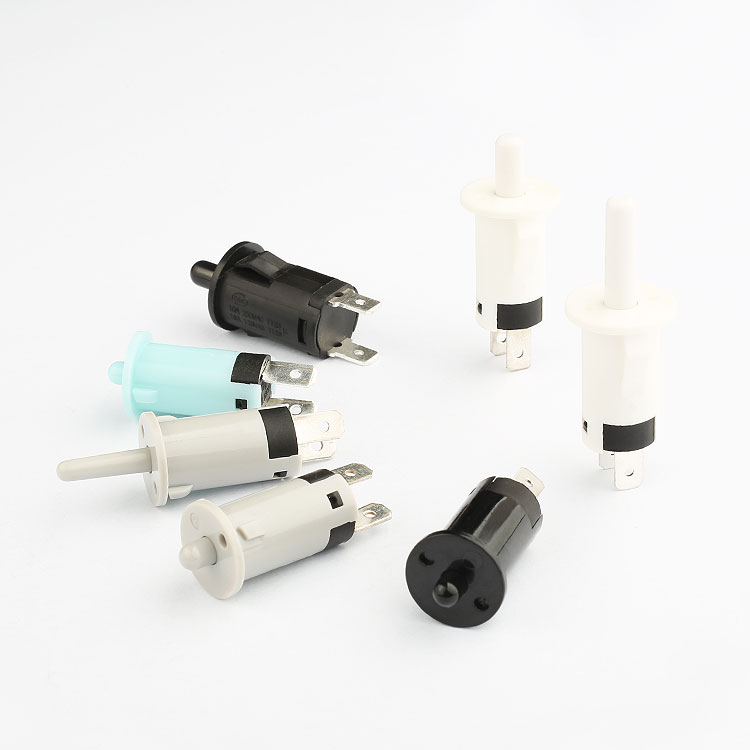

- Yongxing KA5 push button switch
- Color:
- Red, Yellow ,Green, Black,etc
- Certification:
- CQC, CE
- Mechanical life:
- 50000cycles
- Electronic life:
- 10000cycles
- Operating temperature:
- -25℃~+55℃
- Contact Resistance:
- ≤50MΩ
- Insulation Resistance:
- ≥100MΩ
- Dielectric Resistance:
- 1,500V
- IP code:
- IP40
Supply Ability
- Supply Ability:
- 10000000 Piece/Pieces per Week of mechanism long stem tact mini normal open push button switch
Packaging & Delivery
- Packaging Details
- The goods are packed in uniform export packing boxes.
- Port
- shanghai
- Picture Example:
- Lead Time:
Quantity(Pieces) 1 - 30000 >30000 Est. Time(days) 30 To be negotiated
