IR series can be connected to five types of LED strip:
DIM/CCT/RGB/RGBW/RGB+CCT
| 17-key Dimmer LED Controller Color Temperature Adjustable LED Strip Light Controller |
Mini IR + 3-key Controller
Products Description

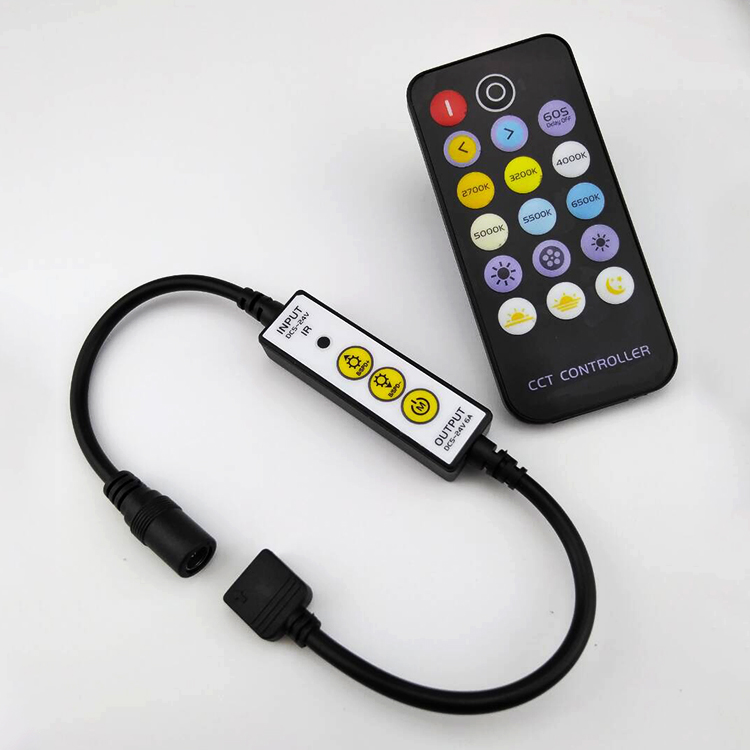

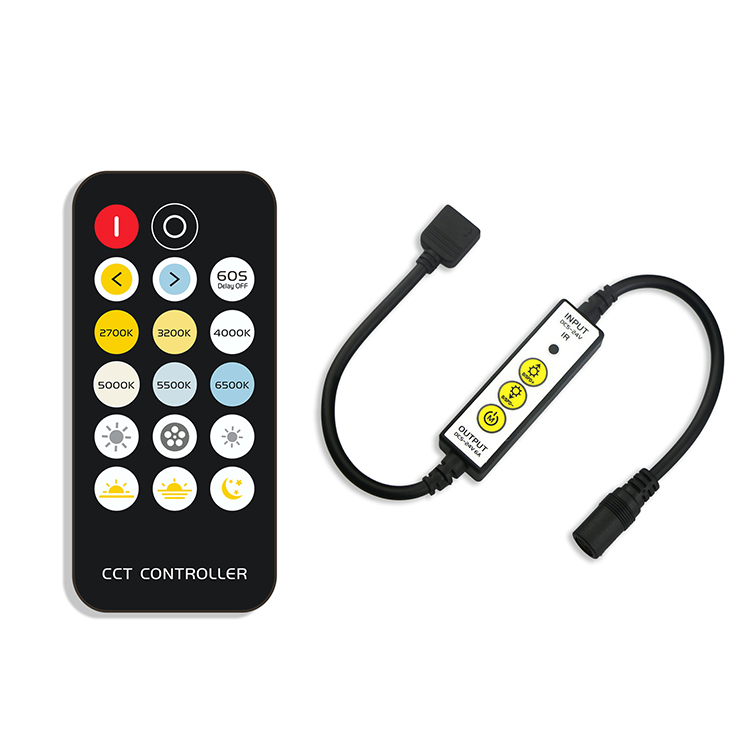

IR CCT LED Strip Controller
Product model: IR-K02
Power supply voltage: DC5-24V
Working Tmep.: -20-60℃
Connection method: Common AnodeController size: L55.7 × W16.6 × H10.7mmNet weight: 32GGross weight: 42GStatic power consumption: <0.5WOutput current: <2A/CH Maximum: 6A (bold wire, high quality PCB, chip, MOS tube, full load wiring)Output power: Maximum: 5V: <30W, 12V: <72W, 24V: <144W
Details
Dimensions
Stylish and beautiful design, small and portable
Interface Description
Power input: 5.5*2.1mm DC interface input (customized thick wire, can withstand 6A, ordinary connector can only withstand 3A)
Interface Description
Load output: 4P terminal output (with custom thickened copper wire for full load access)
Wiring Instructions
If the controller output line sequence you are using is different from the reference line order above, please select the line order according to the actual corresponding LED strip to ensure that the arrow on the controller output connector is inserted with the arrow of the LED input connector .
Applications
Certifications
Company Information
Our Service
FAQ
Q1. You are manufacturer or trading company?
A: We are manufacturer, our price will be very competitive and we are flexible. Also we have great sales team providing professional service.
Q2. What you do?
A: 4 categories of products: Lighting source, Indoor Lighting, Outdoor Lighting and Commercial Lighting. And also we are Lighting solution provider. You may tell us your specific requirements, I can give you customized proposal.
Q3. Do you provide OEM/ODM services?
A: We have factories with specialized R&D teams focusing on design, engineering, electronics, optics and processing, as well as lighting solutions, so definitely we can provide OEM and ODM services.
Q4. Do you have to sign a confidentiality agreement?
A: CE Lighting pays high attention to intellectual property of both parties, so we will sign a confidentiality agreement to protect our intellectual property. For your ODM/new items, we promise you that we will never show it in public or show it to other clients.
Q5. About Payment or other question:
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
