IR series can be connected to five types of LED strip:
DIM/CCT/RGB/RGBW/RGB+CCT
| Infrared and 3 Keys LED Light Controller 14-key Mini IR LED Controller |
Infrared Mini Controller
Products Description

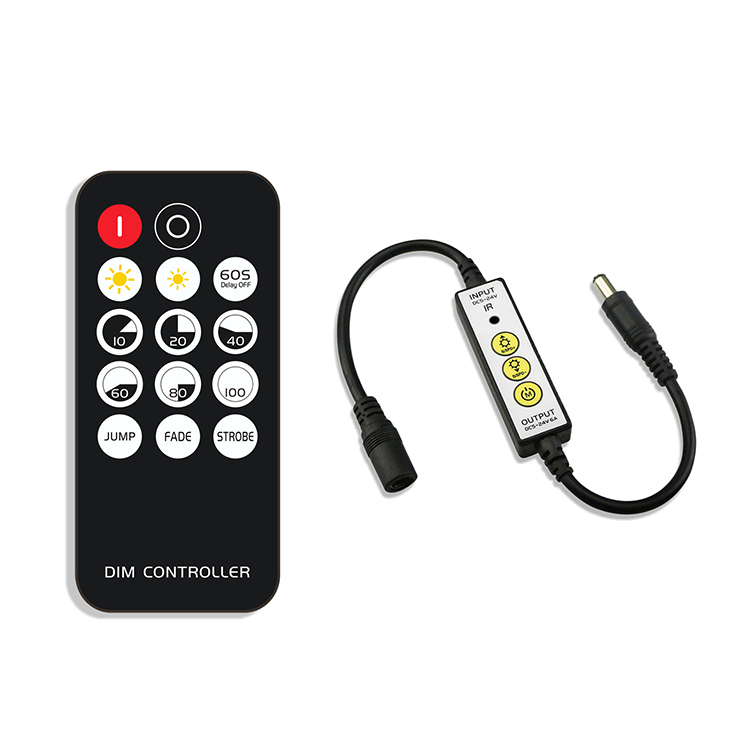

Wireless IR DIM LED Controller
Product model: IR-K01
Power supply voltage: DC5-24V
Working Tmep.: -20-60℃
Connection method: Common AnodeController size: L55.7 × W16.6 × H10.7mmNet weight: 30GGross weight: 42GStatic power consumption: <0.5WOutput current: <2A/CH Maximum: 6A (bold wire, high quality PCB, chip, MOS tube, full load wiring)Output power: Maximum: 5V: <30W, 12V: <72W, 24V: <144W
Details
Dimensions
Stylish and beautiful design, small and portable
Interface Description

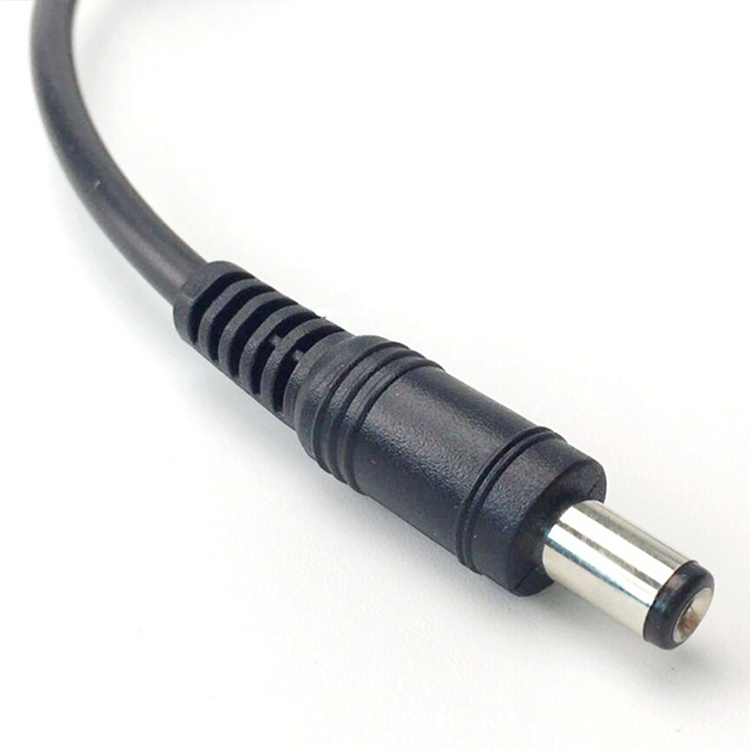

Power input: 5.5*2.1mm DC interface input (customized thick wire, can withstand 6A, ordinary connector can only withstand 3A)
Interface Description
Load output: 5.5*2.1mm DC interface output(with custom thickened copper wire for full load access)
Wiring Instructions
If the controller output line sequence you are using is different from the reference line order above, please select the line order according to the actual corresponding LED strip to ensure that the arrow on the controller output connector is inserted with the arrow of the LED input connector .
