Overview
Quick Details
- Type:
- Aviation Obstruction Lights
- Input Voltage(V):
- 12;24;48VDC,110-220VAC
- Lamp Power(W):
- 4
- Lamp Luminous Flux(lm):
- 10cd
- Lamp Luminous Efficiency(lm/w):
- 100
- CRI (Ra):
- 100
- Color Temperature(CCT):
- Red(customizable)
- Beam Angle(°):
- 360 Horizontal Beam Angle
- IP Rating:
- IP65
- Certification:
- BV, CE, SASO
- Emitting Color:
- Red
- Lamp Body Material:
- Aluminium alloy
- Base Type:
- LED
- Light Source:
- LED
- Place of Origin:
- Hunan, China
- Brand Name:
- YUAN SHENG
- Warning lamp:
- 0.9kg
- Color:
- Red(customizable)
- International standard:
- ICAO FAA Low Intensity Obstruction Light
Packaging & Delivery
- Packaging Details
- carton

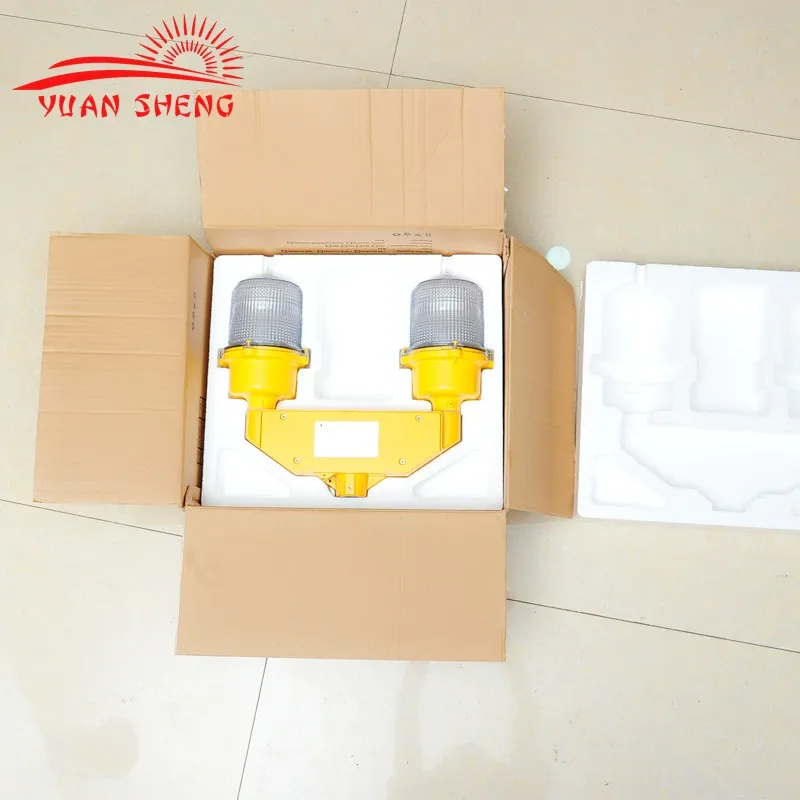

- Picture Example:
![package-img]()
- Lead Time:
Quantity(Pieces) 1 - 1000 >1000 Est. Time(days) 20 To be negotiated
Specifications
| Description | Parameter |
| LIGHT OUTPUT | YOL10D(Service+Standby) YOL10D(Service+Service) |
| Effective Intensity | 10 Candela 10 Candela |
| Power Consumption | 4W 12W |
| Weight | 3.5KG 3.5KG |
| Standard | Compliant to the ICAO(low intensity type A) and FAA-L810 |
| Vertical degree | ≥10° |
| Light source | LED |
| Horizontal degree | 360° |
| LED color | Red(customizable) |
| Flash Pattern | Steady burning(default) |
Input voltage | 110-220VAC, 50/60 Hz;12VDC;24VDC;48VDC |
| LED life | ≥100,000h |
| Operating temperature | -40℃ ~ +55℃ |
| IP Protection | IP65 |
| Relative humidity | 100% with condensation |
| Material | Base:Die casting aluminum, housing: PC |
| Warranty | 5years |
