Home > Products > Spots Ceiling Downlight LED, 7 Watt LED Downlight COB, Mini COB LED Downlight Ceiling 5W 7W
Spots Ceiling Downlight LED, 7 Watt LED Downlight COB, Mini COB LED Downlight Ceiling 5W 7W
Click on the image to view the original image
Product： views：3Spots Ceiling Downlight LED, 7 Watt LED Downlight COB, Mini COB LED Downlight Ceiling 5W 7W
Branch： YUSING
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 16:44
  Negotiated
Product Details
Overview
Quick Details
Light Source:
LED
Input Voltage(V):
220-240
Lamp Luminous Flux(lm):
450/600
CRI (Ra>):
80
Working Lifetime(Hour):
15000
Lamp Body Material:
Aluminum
IP Rating:
IP20, IP20/IP44
Certification:
CE
Model Number:
DL1100
Place of Origin:
Zhejiang, China
Brand Name:
YUSING
Application:
office
Color Temperature(CCT):
Pure White
LED Light Source:
Imitating COB
Material:
Aluminum+PC
Color Body:
Different Ring colors optional
Body Material:
Die-casting Aluminum
Surface:
Spray painting/Electroplating
LED Type:
Replaceable module
Driver:
Built-in driver
Warranty(Years):
2
Product Certification Verified
CE Certified.
Supply Ability
Supply Ability:
300000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
1Pcs/White Box Or 1Pcs/Color Box;
Port
Ningbo/Shanghai/Shenzhen
Lead Time:
Quantity(Pieces)1 - 100 >100
Est. Time(days)30To be negotiated
Specification

Spots Ceiling Downlight LED, 7 Watt LED Downlight COB, Mini COB LED Downlight Ceiling 5W 7W

Setting Information
process
Spray painting/Electroplating
rated voltage
220-240V
material
5W/7W
light color
White/Black/Chrome/Gold/Silver
installation
embedded
temperature
3000K/4000K/6500K
Hole diameter
70-75MM
Shelf life
2 years
Product Description

Light Source Replacement

This spotlight features replaceable modulelight source, Imitating COB lens, built-in driver pass EMC, ERP, with terminal block

 Light Source

Different Ring colors optional

White/ Black/ Chrome/ Satin Nickel/ Gold/ Silver/ Gunmetal/ Green Antique Brass/ Red Antique Brass

Product Choice

DL1100
DL1101
DL1102
DL1103

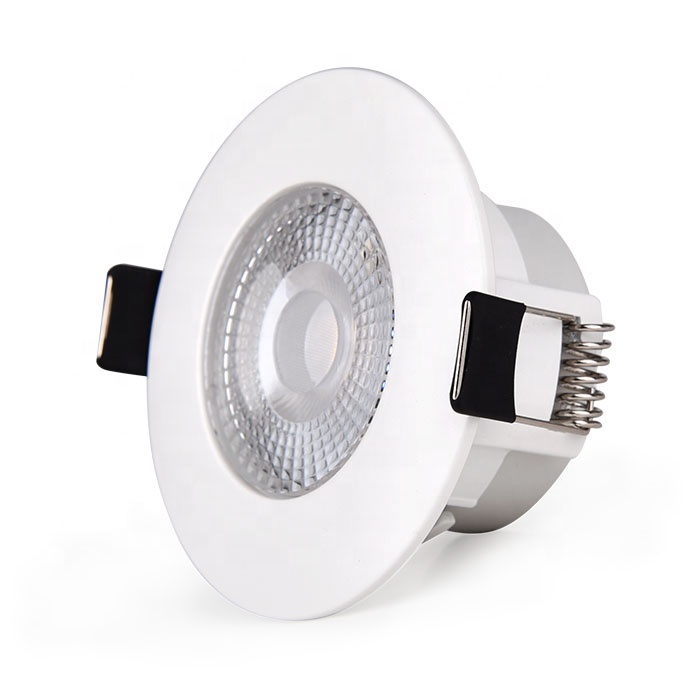

Single Ring-Round
Double Rings-Round

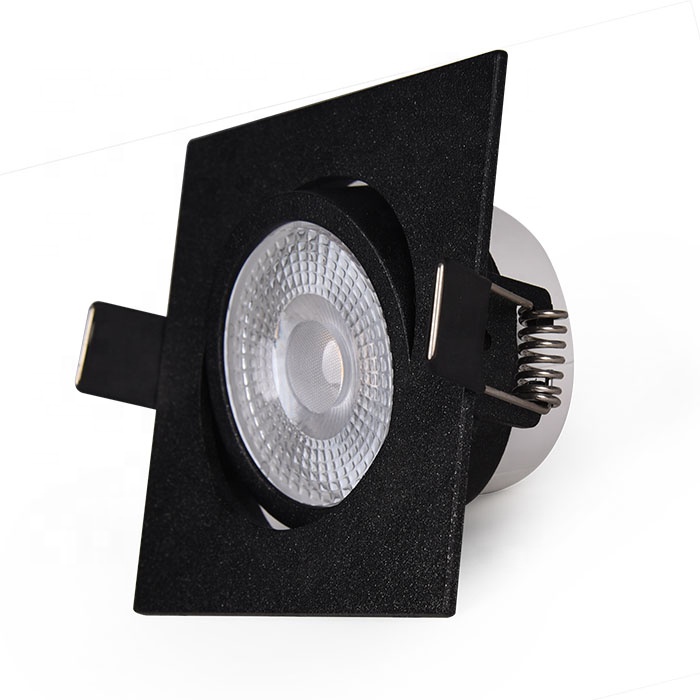

Single Ring-Square
Double Rings-Spuare
Cutout: Dia 70-75mm
Cutout: Dia 75-80mm
Cutout: Dia 70-75mm
Cutout: Dia 75-80mm
Dia 80*40mm
Dia 84*40mm
74*74*40mm
84*84*40mm

Dimmable (Optional)

This Spotlight can be made in two dimming modes

1. Dimmable (Triac): 5%-100%

2. 3 Levels Dimmable by switch: 15%-50%-100%

Waterproof (IP20/ IP44 Optional)

This Spotlight can be added with rubber gaskets for waterproof function.

Certifications
Company Information
Trade Assurance



How to place order online?


FAQ

Q1. You are manufacturer or trading company?

A: We are factory. Welcome to visit our factory at anytime.

Q2. Where is your factory?

A:Our factory located in No. 1199, Mingguang Road, Jiangshan Town, Yinzhou District, Ningbo, China.

Q3. Do you provide NEW Design led desk lamp OEM services?

A: Yes, we have more than 10 years rich experiences, we often cooperate with some famous foreign companies.

Q4. How to proceed an order for led light?

A: Firstly let us know your requirements or application.

Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q5. Is it OK to print my logo on led light product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q6. Do you offer guarantee for the products?

A: Yes, we offer 2-5 years warranty to our products.
