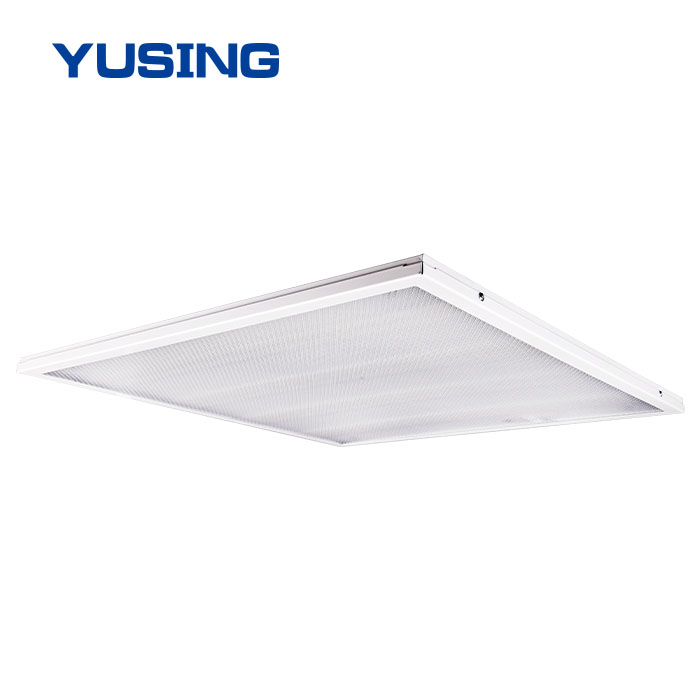

Frosted LED Grille Panel Light, SMD Panel Lamp LED Light, Office 36W Backlight LED Panel Lamp

Click on the image to view the original image

Product：	views：4Frosted LED Grille Panel Light, SMD Panel Lamp LED Light, Office 36W Backlight LED Panel Lamp
Branch：	YUSING
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 16:44

Product Details

Overview

Quick Details

Input Voltage(V):: 180-245

Lamp Luminous Flux(lm):: 2700

CRI (Ra>):: 80

Working Temperature(℃):: -20 - 45

Working Lifetime(Hour):: 30000

Lamp Body Material:: Iron

IP Rating:: IP20

Certification:: CE

Place of Origin:: Zhejiang, China

Brand Name:: YUSING

Model Number:: PL2002

Application:: HOTEL

Light Source:: LED

Warranty(Year):: 2-Year

Color Temperature(CCT):: Cool White

Lamp Luminous Efficiency(lm/w):: 75

Key Words:: led panel lamp

Body Material:: Iron + PS

Body Color:: White

Style:: Super Slim

Size:: 600x600x19mm

Beam Angle:: 120°

PF:: >0.9

Luminous Efficiency:: 75lm/w

Product Certification Verified

EMC Certified.

Supply Ability

Supply Ability:: 50000 Piece/Pieces per Month

Packaging & Delivery

Packaging Details: white box or color box

Port: Ningbo/Shanghai/Shenzhen

Product Description

Code

Power

Consumption

Lumen

(lm)

Material Body

LED Type

Size:L*W*H
(mm)

PL2002

24W

1800

Iron+PS

SMD 2835

600x600x15

PL2002

36W

2700

Iron+PS

SMD 2835

600x600x19

Details

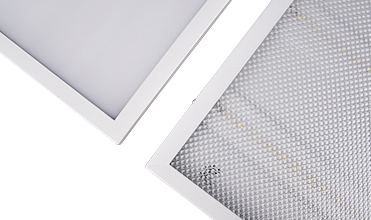

	Diamond panel or Frosted panel can be choice.
Frame Good aluminum frame Beautiful ladder design Shockproof worry free lens
	Back details Iron body Quick click installation
Wiring Advanced super longlife and stable driver. No delay on start, no warm up time required, no noise, no flickering.

Features

Testing reports are available.
Energy saved up to 50%.
Advanced super longlife and stable driver.
No delay on start, no warm up time required, no noise, no flickering.
No UV or IR radiation in the beam, mercury free, lead free.
Special circuit design, every LED can work separately, so it can avoid be influenced by a broken LED cause.

Typical Applications

Commercial Lighting ;
Office Lighting ;
Hospital Lighting ;
Supermarket Lighting ;
School lighting ;
Home lighting ;
Supermarket, etc.

Illustration For LED Panel Light Installation
