DC12V 6500K SMD LED Strip Lights, Single-color 120LEDs/m White Light Strip
Click on the image to view the original image
Product： views：2DC12V 6500K SMD LED Strip Lights, Single-color 120LEDs/m White Light Strip
Branch： YUSING
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 16:45
  Negotiated
Product Details
Overview
Quick Details
Support Dimmer:
No
Input Voltage(V):
DC12V
Lamp Power:
9.6W/M
Lamp Luminous Flux(lm):
20~22lm/LED
CRI (Ra>):
80
Working Temperature(℃):
-10 - 45
Working Lifetime(Hour):
30000
Lamp Body Material:
Copper
Certification:
CE, RoHS
Place of Origin:
Zhejiang, China
Brand Name:
YUSING
Model Number:
LR1133
Application:
HOTEL
Light Source:
LED
Warranty(Year):
2-Year
Color Temperature(CCT):
2700-6500K
LED Light Source:
SMD 2835
IP Rating:
IP20 / IP65
Max. quantityper powerinput:
5m
Operating temperature:
-10℃ til +45℃
Width*Height:
8*1.8mm / 11*5mm
Cuttable:
6 LEDs
Beam angle:
120°
LED Qty:
120LEDs/M
Supply Ability
Supply Ability:
300000 Meter/Meters per Month for flexible led strip
Packaging & Delivery
Packaging Details
5M/Roll,1Roll/Anti-static Bag
Port
Ningbo/Shanghai/Shenzhen

DC12V 6500K SMD LED Strip Lights, Single-color 120LEDs/m White Light Strip

Product Description

Data

SMD3528 120LEDs/Meter

Model NO.

Wattage

[W/Meter]

LED

[Qty/Meter]

Luminous Flux

[lm/LED]

Color

LR11339.612020~226000-6500K
LR11339.612020~223000-3200K
LR11339.6120/Red (617-627K)
LR11339.6120/Green (514-534K)
LR11339.6120/Blue (450-474K)

Features
  • Available in full range of single-color (red, green, blue, cool white, warm white);
  • Easy to install by the 3M tape on the FPC back;
  • Low power consumption,high intensity and stability;
  • PCB colour: Brown, white and black colour optional;
  • Easy connection with snap-in connectors;

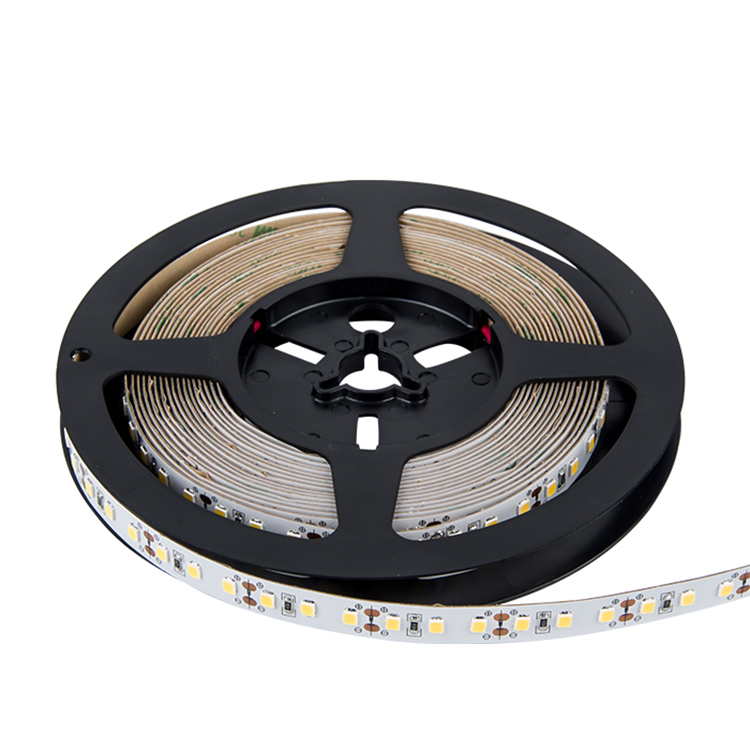

  • Flexible & slim form, 5 meters/roll;

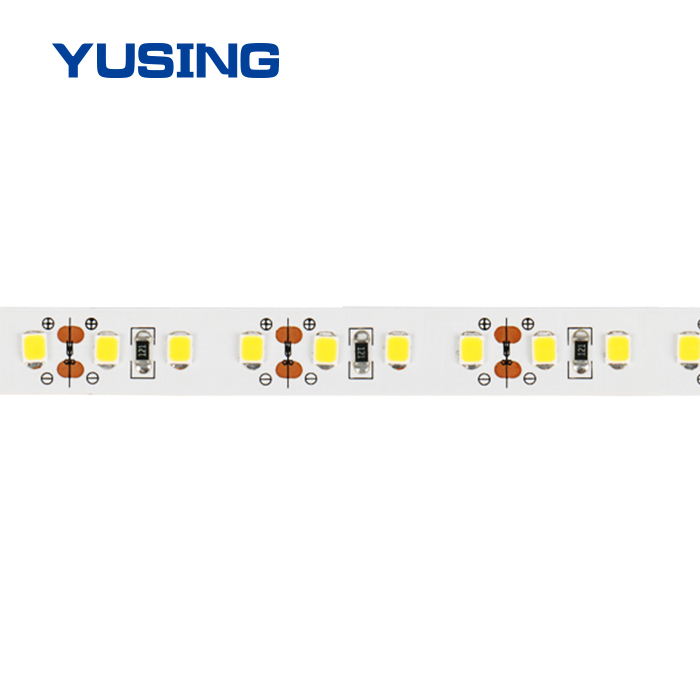

  • Every six LED lights can form a loop,every three or six LED lights can be cut along any of the above tangent, without damaging other parts.

Easy Connect



Installation

Alu Profiles
Typical Applications
  • Stairway Accent Lighting;
  • Auditorium Walkway Lighting;
  • Backlighting For Signage Letters,Signboard;
  • Architectural Decorative Lighting;
  • Emergency Hallway,Exit Path Lighting ;
  • Theater And Archway, Canopy And Bridge Edge Lighting;
  • Construction,bridge,road,garden lighting etc.
