- Support Dimmer:
- No
- Input Voltage(V):
- DC12V
- Lamp Power:
- 14.4W/M
- Lamp Luminous Flux(lm):
- 10~12lm/LED
- CRI (Ra>):
- 60
- Working Temperature(℃):
- -10 - 45
- Working Lifetime(Hour):
- 30000
- Lamp Body Material:
- Copper
- Certification:
- CE, RoHS
- Place of Origin:
- Zhejiang, China
- Brand Name:
- YUSING
- Model Number:
- LR1321
- Application:
- HOTEL
- Light Source:
- LED
- Warranty(Year):
- 1-year
- Color Temperature(CCT):
- 2700-6500K
- LED Light Source:
- SMD 5050
- IP Rating:
- IP20 / IP65
- Max. quantityper powerinput:
- 5m
- Operating temperature:
- -10℃ til +45℃
- Width*Height:
- 10*2mm / 12*3mm
- Cuttable:
- 3 LEDs
- Beam angle:
- 120°
- LED Qty:
- 60LEDs/M
- Supply Ability:
- 300000 Meter/Meters per Month for 5050 led strip
- Packaging Details
- 5M/Roll,1Roll/Anti-static Bag
- Port
- Ningbo/Shanghai/Shenzhen

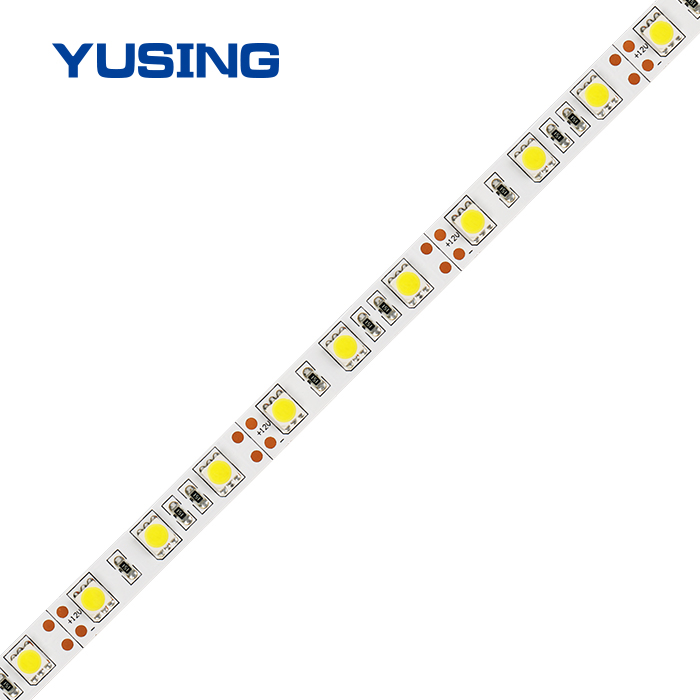

5M 14.4W/M Strip LED, Single Color Waterproof Flexible LED Light Strip, 12V SMD 5050 Waterproof LED Flexible Strip Light
Setting Information | |
Item No. | LR1321 |
Voltage | 12/24V |
Wattage | 14.4W |
Light Color | Red/Blue/Green/Cool White/Warm White |
LED Type | SMD5050 |
LED Qty. | 60LEDs/M |
Cut | 3 LEDs /6 LEDs |
IP Rating | IP20/IP65/IP67/IP68 |
1. Available in full range of single-color (red, green, blue, cool white, warm white);
2. Easy to install by the 3M tape on the FPC back;
3. Low power consumption,high intensity and stability;
4. Every three LED lights can form a loop,every three or six LED lights can be cut along any of the above tangent, without damaging other parts.

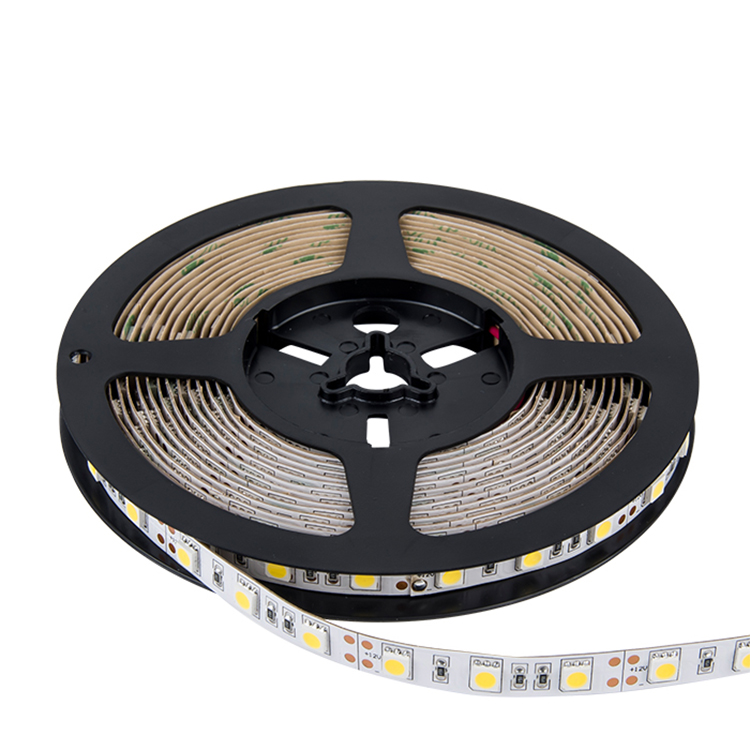

Flexible & slim form, 5 meters/roll
Aluminum Profiles
Easy connection with snap-in connectors
Easy connection with snap-in connectors
R9 refers to a saturated red, with wavelength of 650nm, when the R9<0, the light is not enough, the red serious distortion, so the lamp can render in red color naturally. The number more bigger the reducibility of red is more better. All in all, the R9 more big the effect on irradation in fruit and flowers more better, they are more bright-cloured.
Wattage[W/Meter] | LED[Qty/Meter] | Luminous Flux[lm/LED] | Color |
14.4 | 60 | 10~12 | 6000-6500K |
14.4 | 60 | 10~12 | 3000-3200K |
14.4 | 60 | / | Red(617-627K) |
14.4 | 60 | / | Green(514-534K) |
14.4 | 60 | / | Blue(450-474K) |
1. Indoor Installation
When used the led strip indoor, it will not have rain and wind, so it will be much easier. Every led strip will be 3M tape on the backside of the strip FPC, when installation, you can uncover the 3M tape, and stick the strip on the installation site. When meet the corner or the led strip is too long, as led strip in made up from many unit with 3 or 6 LEDs, you can just cut the strip by every unit.
2. Outdoor Installation
When used the led strip outdoor, it will go through the rain and wind, many temperature change, after some time, the adhesiveness of 3M tape will become lower, so that the led strip will be fall from the installation site. So it is better to use some plastic buckles to fasten the strip. The way to cut and connect the strip will be same as the indoor use. Better to use some glue on the connect site to keep it all waterproof.
