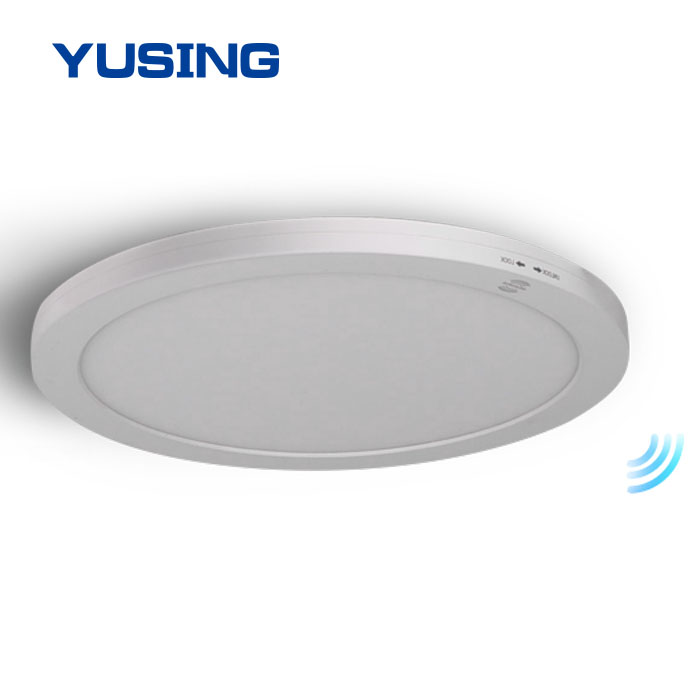

1.8cm Ultra Thin CCT Adjustable 24W Surface Mount LED Downlight Slim With CE TUV
Click on the image to view the original image
Product： views：21.8cm Ultra Thin CCT Adjustable 24W Surface Mount LED Downlight Slim With CE TUV
Branch： Yusing
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 16:45
  Negotiated
Product Details
Overview
Quick Details
Light Source:
LED
Input Voltage(V):
AC100-240V
Lamp Luminous Flux(lm):
1920
CRI (Ra>):
80
Working Lifetime(Hour):
25000
Lamp Body Material:
Aluminum
IP Rating:
IP20
Certification:
CE, EMC, LVD, RoHS, SAA
Model Number:
AL1029CA-24W
Place of Origin:
Zhejiang, China
Brand Name:
Yusing
Application:
Residential
Color Temperature(CCT):
adjustable
LED Light Source:
SMD2835
Lamp Luminous Efficiency(lm/w):
80
Working Temperature(℃):
-20 - 45
Power:
18W/24W
Size:
Dia 330*18mm
PF:
PF>0.9
Beam Angle:
120 Degree
Flicker:
Free
IP:
IP20
Item Type:
Downlights
Warranty(Years):
2 Years
Supply Ability
Supply Ability:
100000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Quantity less than 2000PCS,white box+Label
Quantityno less than 2000PCS,OEM color box
1PCS/Inner box
15PCS/CTN
15KG/CTN
0.058Cubic meter/CTN
Port
Ningbo
Lead Time:
Quantity(Pieces)1 - 10001001 - 2000 >2000
Est. Time(days)2535To be negotiated
Specification

1.8cm Ultra Thin CCT Adjustable 24W Surface Mount LED Downlight Slim With CE TUV

Setting Information
Item NO.
AL1029
Voltage
100-240V
Lifespan
25,000 Hours
Waterproof
IP20
Sensor
Microwave Sensor Optional
PF
RA>80, PF>0.9
Function
CCT Adjustable
Installation
Surface Mounted
Product Description
Item No.
Wattage
Lumen
Size
AL1029
18W
1440lm
Φ220x18mm
AL1029
24W
1920lm
Φ330x18mm

AL1029 Surface mounted down light

Ordinary ceiling lamp

AL1029 Surface mounted downlight

infrared sensor ceiling lamp

1. Thinner, save 5 times the packing area.

2. Microwave sensor does not affect the appearance, modeling simple. Infrared sensor unaesthetic.

3. Microwave sensor sensitivity is 100%. The infrared sensor is out of order when the weather is hot.

4. The downlight is 100% bright in the sensor zone. After leaving the sensing area, the downlight will be extinguished in 30 seconds.

Stocks are not at risk

Color temperature adjustable: 3000K/Warm white; 4000K/Naturally white; 6500K/Cool white.

Installation diagram

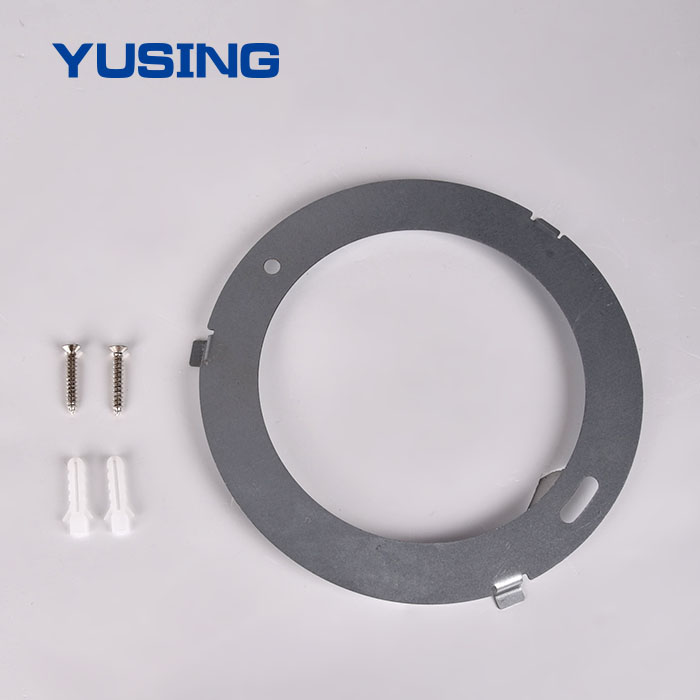

1. Fix the base with screws

2. Connect the two wires of the power supply

3. Set the lamp to the base and rotate it

4. The installation is compltet

Applications
Hot Sale

6W/12W/18W

Aluminum + PC

Recessed, Surface Mounted optional

32W/36W/40W/45W

Size: 600x600x12mm

Ceiling, Embedded or Suspended

10W/18W/27W/36W

Iron + PC

Ra>70, PF>0.5

10W/14W/18W/24W

IP44 IP Rating

Color Temp. Adjustable, Dimmable

40 Watt

IP65 IP Rating

Ceiling or Embedded Installation

20W/40W

220° Beam Angle

Emergency Duration: 2 hours
