Home > Products > Ultra Slim LED Downlight 18W Motion Sensor CCT Adjustable Dimmable Surface Mounted LED Downlight With CE TUV

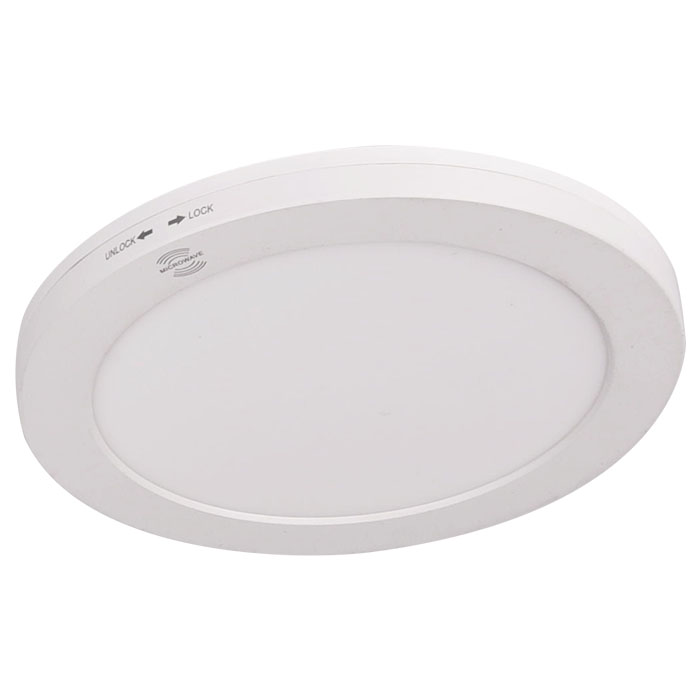

Ultra Slim LED Downlight 18W Motion Sensor CCT Adjustable Dimmable Surface Mounted LED Downlight With CE TUV
Click on the image to view the original image
Product： views：2Ultra Slim LED Downlight 18W Motion Sensor CCT Adjustable Dimmable Surface Mounted LED Downlight With CE TUV
Branch： Yusing
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 16:45
  Negotiated
Product Details
Overview
Quick Details
Light Source:
LED
Input Voltage(V):
AC100-240V
Lamp Luminous Flux(lm):
1440
CRI (Ra>):
80
Working Lifetime(Hour):
25000
Lamp Body Material:
Aluminum
IP Rating:
IP20
Certification:
CE, EMC, LVD, RoHS, SAA
Model Number:
AL1029
Place of Origin:
Zhejiang, China
Brand Name:
Yusing
Application:
HOTEL
Color Temperature(CCT):
adjustable
LED Light Source:
SMD2835
Lamp Luminous Efficiency(lm/w):
80
Working Temperature(℃):
-20 - 45
Size:
220*18mm
PF:
PF>0.9
Beam Angle:
120 Degree
IP:
IP20
Driver:
Non-flicker
Material:
PC+Aluminum
Item Type:
Downlights
Warranty(Years):
3 Years
Supply Ability
Supply Ability:
150000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Quantity less than 2000PCS,white box+Label
Quantityno less than 2000PCS,OEM color box
1PCS/Inner box
40PCS/CTN
19KG/CTN
0.074Cubic meter/CTN
Port
Ningbo
Lead Time:
Quantity(Pieces)1 - 10001001 - 2000 >2000
Est. Time(days)2535To be negotiated
Specification

Ultra Slim LED Downlight 18W Motion Sensor CCT Adjustable Dimmable Surface Mounted LED Downlight With CE TUV

Setting Information
Item NO.
AL1029
Voltage
100-240V
Lifespan
25,000 Hours
Waterproof
IP20
Sensor
Microwave Sensor
PF
RA>80, PF>0.9
Function
CCT Adjustable
Installation
Surface Mounted
Product Description
Item No.
Wattage
Lumen
Size
AL1029
18W
1440lm
Φ220x18mm
AL1029
24W
1920lm
Φ330x18mm

AL1029 Surface mounted down light

Ordinary ceiling lamp

AL1029 Surface mounted downlight

infrared sensor ceiling lamp

1. Thinner, save 5 times the packing area.

2. Microwave sensor does not affect the appearance, modeling simple. Infrared sensor unaesthetic.

3. Microwave sensor sensitivity is 100%. The infrared sensor is out of order when the weather is hot.

4. The downlight is 100% bright in the sensor zone. After leaving the sensing area, the downlight will be extinguished in 30 seconds.

Stocks are not at risk

Color temperature adjustable: 3000K/Warm white; 4000K/Naturally white; 6500K/Cool white.

Installation diagram

1. Fix the base with screws

2. Connect the two wires of the power supply

3. Set the lamp to the base and rotate it

4. The installation is compltet
