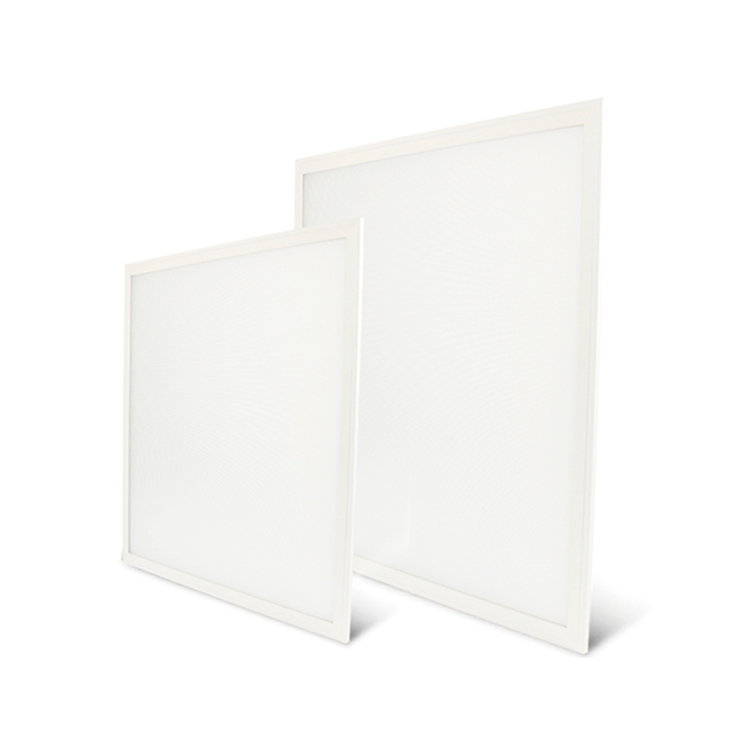

90lm/W UGR<16 9mm 40W 4014SMD Ultra Thin LED Light Panel 600x600

Click on the image to view the original image

Product：	views：290lm/W UGR<16 9mm 40W 4014SMD Ultra Thin LED Light Panel 600x600
Branch：	YUSING
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 16:45

Product Details

Overview

Quick Details

Input Voltage(V):: AC220-240V

Lamp Luminous Flux(lm):: 3600

CRI (Ra>):: 80

Working Temperature(℃):: -10 - 45

Working Lifetime(Hour):: 50000

Lamp Body Material:: Aluminum

IP Rating:: IP20

Certification:: CE, RoHS

Place of Origin:: Zhejiang, China

Brand Name:: YUSING

Model Number:: PL1002B-40W

Application:: office, Meeting Room

Light Source:: LED

Warranty(Year):: 3-YEAR

Color Temperature(CCT):: 2700~6500K

Lamp Luminous Efficiency(lm/w):: 90

Key Words:: led light panel

Style:: UGR <16

Size:: 600x600x9mm

Beam Angle:: 120°

PF:: >0.9

Luminous Efficiency:: 90lm/W

LED Light Source:: SMD 4014

Supply Ability

Supply Ability:: 50000 Piece/Pieces per Month for led light panel

Packaging & Delivery

Packaging Details: led light panel:
white box or color box

Port: Ningbo/Shanghai/Shenzhen

Product Description

90lm/W UGR < 16 9mm 40W 4014SMD Ultra Thin LED Light Panel 600x600

Code

Power

Consumption

Lumen

(lm)

Material Body

LED Type

Size:L*W*H
(mm)

PL1002B

32W

3600

Aluminum

SMD 4014

600x600x9

Details

Frame

Good aluminum frame
Beautiful ladder design
Shockproof worry free lens
White color frame or silver color frame can be choice.

Back details

Aluminum body

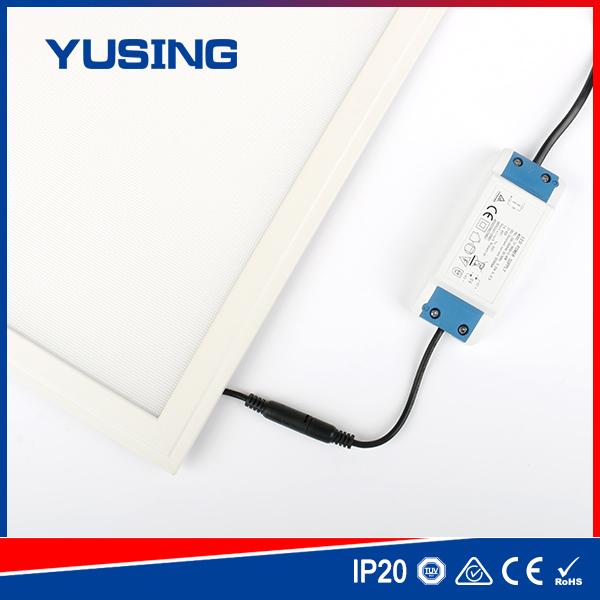

Driver

Quick click installation
Advanced super longlife and stable driver.
No delay on start, no warm up time required, no noise, no flickering.

Features

Testing reports are available.
Energy saved up to 50%.
Advanced super longlife and stable driver.
No delay on start, no warm up time required, no noise, no flickering.
No UV or IR radiation in the beam, mercury free, lead free.
Special circuit design, every LED can work separately, so it can avoid be influenced by a broken LED cause.

Typical Applications

Commercial Lighting ;
Office Lighting ;
Hospital Lighting ;
Supermarket Lighting ;
School lighting ;
Home lighting ;
Supermarket, etc.

Illustration For LED Panel Light Installation
