Home > Products > Slim Round Integrated Downlight LED 18W, LED Recessed Downlight Dimmable With CE

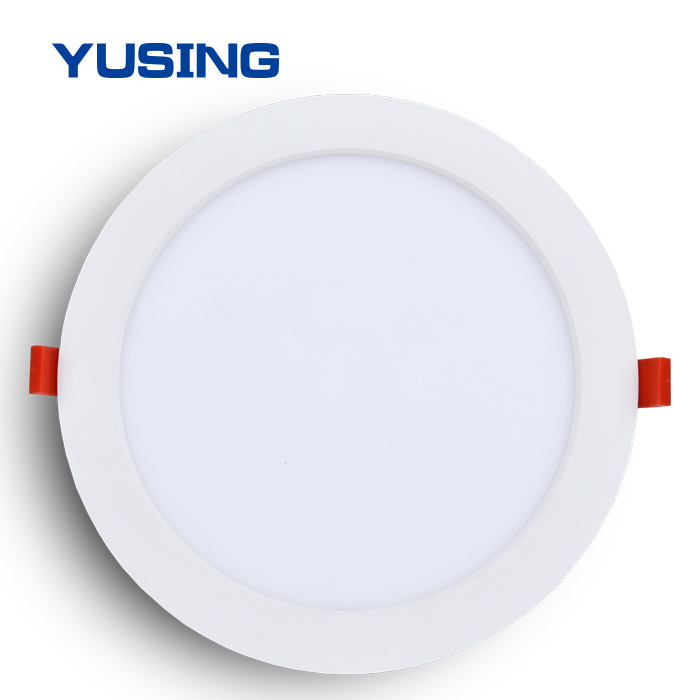

Slim Round Integrated Downlight LED 18W, LED Recessed Downlight Dimmable With CE
Click on the image to view the original image
Product： views：2Slim Round Integrated Downlight LED 18W, LED Recessed Downlight Dimmable With CE
Branch： Yusing
Type： Ultra Thin LED Downlight
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 16:45
  Negotiated
Product Details
Overview
Quick Details
Light Source:
LED
Input Voltage(V):
AC220-240V
Lamp Luminous Flux(lm):
1360
CRI (Ra>):
80
Working Lifetime(Hour):
30000
Lamp Body Material:
Aluminum+PC
IP Rating:
IP20
Certification:
CE, EMC, LVD, RoHS
Model Number:
AL1006-18W
Place of Origin:
Zhejiang, China
Brand Name:
Yusing
Application:
office
Install Style:
Embeded
Switch Type:
Touch On/Off Switch
Warranty(Year):
2-Year
Color Temperature(CCT):
2700-6500K
LED Light Source:
SMD2835
Lamp Luminous Efficiency(lm/w):
75
Working Temperature(℃):
-20 - 45
Installation:
Recessed,Surface Mounted optional
PF:
0.5
Beam Angle:
120°
Dimmable:
Triac
Color:
White
Type:
Ultra Thin LED Downlight
Supply Ability
Supply Ability:
150000 Piece/Pieces per Month for led light downlight
Packaging & Delivery
Packaging Details
Quantity less than 2000PCS,white box+Label
Quantityno less than 2000PCS,OEM color box
1PCS/Inner box
20PCS/CTN
9KG/CTN
0.05Cubic meter/CTN
Port
Ningbo
Lead Time:
Quantity(Pieces)1 - 10001001 - 2000 >2000
Est. Time(days)2530To be negotiated
Specification

Slim Round Integrated Downlight LED 18W, LED Recessed Downlight Dimmable With CE

Ultra Slim Integrated LED Downlight
Light Color
White+Brown, White
Installation
Recessed, Surface Mounted
Material
Aluminum+PC
Wattage
6W/12W/18W
Voltage
AC220-240V
Color Temp.
2700-6500K
Cut Out Size
95mm/150mm/200mm
Warranty
2 Years
Product Description


Top Design

This downlight is designed and produced by Yusing factory. The housing is simple and fashion with 2 colors to choose. In the middle of the back, the logo can be customized. This downlight is our hot sale product.


Ultra Slim Housing

Ultra thin, and the thickness is only 32mm.

With PMMA LGP, to be high transmittance and high efficiency.

New integrated fixture design can easily replace the traditional lamps.


Main Parameter

Wattage:     6W/12W/18W

Lumen:       360lm/840lm/1260lm

LED Type:   SMD2835

Material:     Alu.+PC

Function:Dimmable,Triac


Other Features

The color temperature is 2700-6500K, can not be adjusted. If you have no special requests, we only produce by 4000K.

The lifetime can be up to 30000 hours.

CE, RoHS Certification.

Warranty for 2 years.

Wattage
Lumen
Size
Ceiling Hole
6W
300lm
Φ115*31mm
Φ95mm
12W
840lm
Φ170*32mm
Φ150mm
18W
1440lm
Φ220*32mm
Φ200mm
Installation Process

Recessed

Surface Mounted

Applications
Hot Sale

6W/12W/18W

Aluminum + PC

Recessed, Surface Mounted optional

32W/36W/40W/45W

Size: 600x600x12mm

Ceiling, Embedded or Suspended

10W/18W/27W/36W

Iron + PC

Ra>70, PF>0.5

10W/14W/18W/24W

IP44 IP Rating

Color Temp. Adjustable, Dimmable

40 Watt

IP65 IP Rating

Ceiling or Embedded Installation

20W/40W

220° Beam Angle

Emergency Duration: 2 hours
