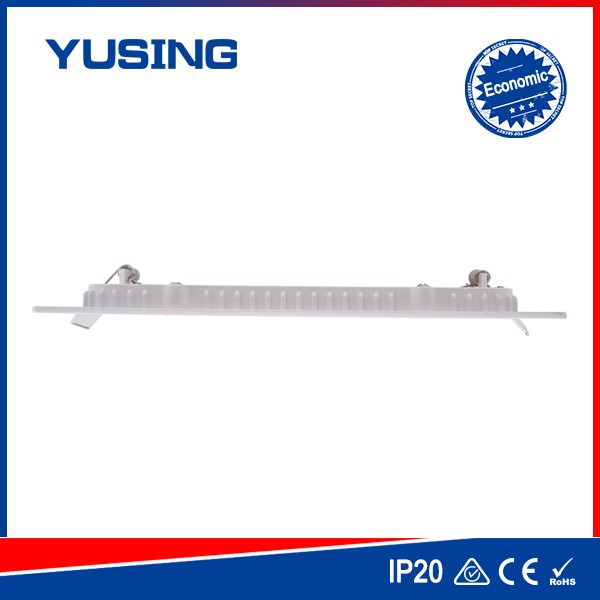

Ultra-Thin LED Downlight With 130mm Cut Out, 9W LED Downlight Square

Click on the image to view the original image

Product：	views：2Ultra-Thin LED Downlight With 130mm Cut Out, 9W LED Downlight Square
Branch：	YUSING
Type：	Ultra Thin LED Downlight
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 16:46

Product Details

Overview

Quick Details

Light Source:: LED

Input Voltage(V):: AC100-240V

Lamp Luminous Flux(lm):: 450

CRI (Ra>):: 70

Working Lifetime(Hour):: 30000

Lamp Body Material:: Aluminum

IP Rating:: IP20

Certification:: CE, RoHS

Model Number:: AL1002-9W

Place of Origin:: Zhejiang, China

Brand Name:: YUSING

Application:: office

Install Style:: Embeded

Switch Type:: Touch On/Off Switch

Warranty(Year):: 2-Year

Color Temperature(CCT):: 3000-6500K

LED Light Source:: SMD2835

Working Temperature(℃):: -20 - 40

Material:: Aluminum+PS

Size:: 145*145*13mm

PF:: >0.5

Power:: 3-24W

Beam Angle:: 120°

Type:: Ultra Thin LED Downlight

Product name:: led downlight 9w

Supply Ability

Supply Ability:: 100000 Piece/Pieces per Month for led downlight 9w

Packaging & Delivery

Packaging Details: 1Pcs/Box;led downlight 9w

Port: Ningbo/Shanghai/Shenzhen

Product Description

Data

Code	Power	Lumen	LED Type	LED Qty	Ceiling Hole	Size
AL1002	3W	120lm	SMD2835	15pcs	65*65mm	858513mm
AL1002	6W	240lm	SMD2835	30pcs	105*105mm	12012013mm
AL1002	9W	450lm	SMD2835	60pcs	130*130mm	14514513mm
AL1002	12W	600lm	SMD2835	60pcs	164*164mm	17017013mm
AL1002	15W	750lm	SMD2835	75pcs	170*170mm	19019013mm
AL1002	18W	1080lm	SMD2835	90pcs	205*205mm	22522513mm
AL1002	24W	1440lm	SMD2835	100pcs	280*280mm	30030013mm

Advantages

Seiko Manufacturing

Imported 2835 LED Chip;

International brand;

Top quality;

Green environmental protection;

High efficiency and energy saving.

Integrated Striped Radiator

Annular heat dissipation design;

Thick pure aluminum design;

Cooling fast;

Extend the downlight life.

Connected Plug-and-socket Design

Quick connect;

Easy use.

Features

Ultra slim edge-light LED downlight;
This LED downlight use die-casting aluminum housing for heat dissipation;
Higher power LED downlight in limited size;
This LED downlight have high transparency diffuser;
This LED downlight with higher lumen;
This LED downlight have better lighting effect;

Applications

Commercial Lighting ;
Office Lighting ;
Hospital Lighting ;
Supermarket Lighting ;
School lighting ;
Home lighting, ect.
