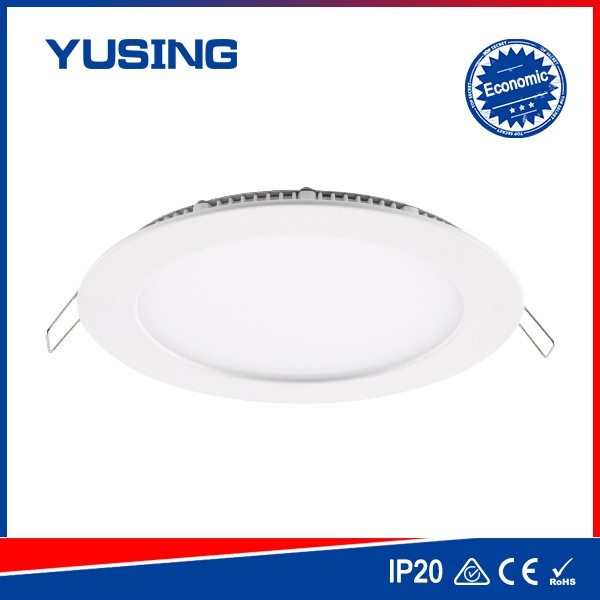

Economic 9W Downlight Round Panel LED, Edge Lighting LED Downlight Slim Design

Click on the image to view the original image

Product：	views：2Economic 9W Downlight Round Panel LED, Edge Lighting LED Downlight Slim Design
Branch：	Yusing
Type：	Ultra Thin LED Downlight
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 16:46

Product Details

Overview

Quick Details

Light Source:: LED

Input Voltage(V):: 100-240

Lamp Luminous Flux(lm):: 600

CRI (Ra>):: 70

Working Lifetime(Hour):: 3000

Lamp Body Material:: Aluminum

IP Rating:: IP20

Certification:: CE, RoHS

Model Number:: AL1001-9W

Place of Origin:: Zhejiang, China

Brand Name:: Yusing

Application:: office

Install Style:: Embeded

Switch Type:: Touch On/Off Switch

Warranty(Year):: 2-Year

Color Temperature(CCT):: 2700-6500K

LED Light Source:: SMD2835

Lamp Luminous Efficiency(lm/w):: 65

Working Temperature(℃):: -20 - 40

Material:: Aluminum+PS

Size:: 145*13mm

Power:: 3-24W

Beam Angle:: 120 degree

Type:: Ultra Thin LED Downlight

Product name:: 9w led downlight

Supply Ability

Supply Ability:: 100000 Piece/Pieces per Month for 9w led downlight

Packaging & Delivery

Packaging Details: 1Pcs/Box;

Port: Ningbo/Shanghai/Shenzhen

Product Description

Data

Code	Power	Lumen	LED Type	LED Qty	Ceiling Hole	Size
AL1001	3W	150lm	SMD2835	15pcs	Φ65mm	Φ85*13mm
AL1001	6W	350lm	SMD2835	30pcs	Φ105mm	Φ120*13mm
AL1001	9W	600lm	SMD2835	60pcs	Φ130mm	Φ145*13mm
AL1001	12W	800lm	SMD2835	60pcs	Φ164mm	Φ174*13mm
AL1001	15W	1000lm	SMD2835	75pcs	Φ180mm	Φ200*13mm
AL1001	18W	1300lm	SMD2835	90pcs	Φ205mm	Φ225*13mm
AL1001	24W	1800lm	SMD2835	100pcs	Φ280mm	Φ300*13mm

Advantages

Seiko Manufacturing

Imported 2835 LED Chip;

International brand;

Top quality;

Green environmental protection;

High efficiency and energy saving.

Integrated Striped Radiator

Annular heat dissipation design;

Thick pure aluminum design;

Cooling fast;

Extend the downlight life.

Connected Plug-and-socket Design

Quick connect;

Easy use.

Features

Ultra slim edge-light LED downlight;
This LED downlight use die-casting aluminum housing for heat dissipation;
Higher power LED downlight in limited size;
This LED downlight have high transparency diffuser;
This LED downlight with higher lumen;
This LED downlight have better lighting effect;

Applications

Commercial Lighting ;
Office Lighting ;
Hospital Lighting ;
Supermarket Lighting ;
School lighting ;
Home lighting, ect.
