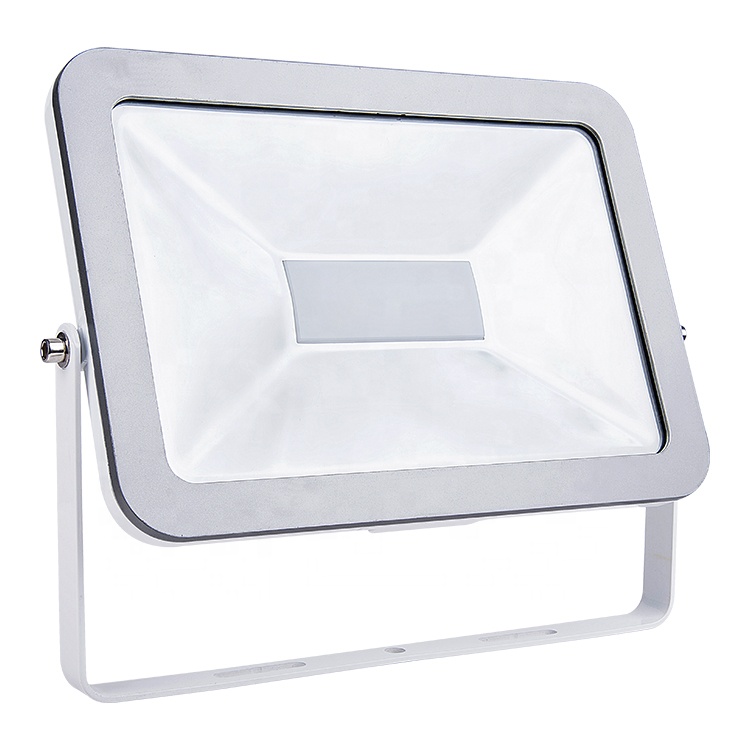

Patent 30W 240V LED Flood Light, Slim Design Outdoor LED Floodlight 30W

Click on the image to view the original image

Product：	views：5Patent 30W 240V LED Flood Light, Slim Design Outdoor LED Floodlight 30W
Branch：	YUSING
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 16:46

Product Details

Overview

Quick Details

Input Voltage(V):: AC 100-240V

CRI (Ra>):: 80

Beam Angle(°):: 100

Working Lifetime(Hour):: 30000

Lamp Body Material:: Aluminum

IP Rating:: IP65

Certification:: CE, GS, LVD, RoHS

Place of Origin:: Zhejiang, China

Brand Name:: YUSING

Model Number:: LG116-30W

Application:: Park

Light Source:: LED

Warranty(Year):: 2-Year

Working Temperature(℃):: -25 - 40

Lamp Luminous Flux(lm):: 2400

Lamp Luminous Efficiency(lm/w):: 80

Color Temperature(CCT):: 3000-6500K

Frequency:: 50/60Hz

PF:: >0.5

CRI:: >70

Cable:: 0.3m

Cover Material:: Toughened glass

LED Light Source:: SANAN SMD2835

Supply Ability

Supply Ability:: 100000 Piece/Pieces per Month

Packaging & Delivery

Packaging Details: floodlight led:
color box;

Port: Ningbo

Product Description

Data of LED Floodlight

Code	Wattage	Lumen	LED Type	LED Qty.	IP	Color Temp.	SIZE
LG116	10W	800lm	Nichia SMD3030	10pcs	IP65	3000-6500K	14813026mm
LG116	20W	1600lm	Nichia SMD3030	20pcs	IP65	3000-6500K	20517331mm
LG116	30W	2400lm	Nichia SMD3030	30pcs	IP65	3000-6500K	30726538mm
LG116	50W	4000lm	Nichia SMD3030	48pcs	IP65	3000-6500K	30726538mm
LG116	100W	7000lm	Nichia SMD3030	96pcs	IP65	3000-6500K	45537042mm

Introduction

ispot LED are ultra-compact LED floodlights, which high lighting parameters are combined with stylish and modern casing. The white color of the body and fitting arm makes the impression of lightness and it is perfectly matched by the white wire which enables perfectly matched by the white wire which enables to power the fitting without any interference into its interior. ispot LED is a perfect solution illuminating and for highlighting of different architectural elements.

Features

50000H:Long service life
-25℃ to 40℃: Operation in extremely low and high temperatures
Ra>80: Real color rendering: high color rendering index
IP65: Protection against water jets and dust-proofness
PC Diffuser:Anti-dazzle design for protecting men"s eyes
Mirror Alu. Reflector: Higher Lumen
High quality Die-casting Alu. body
Toughened Glass Light cover
LED Chip Nichia

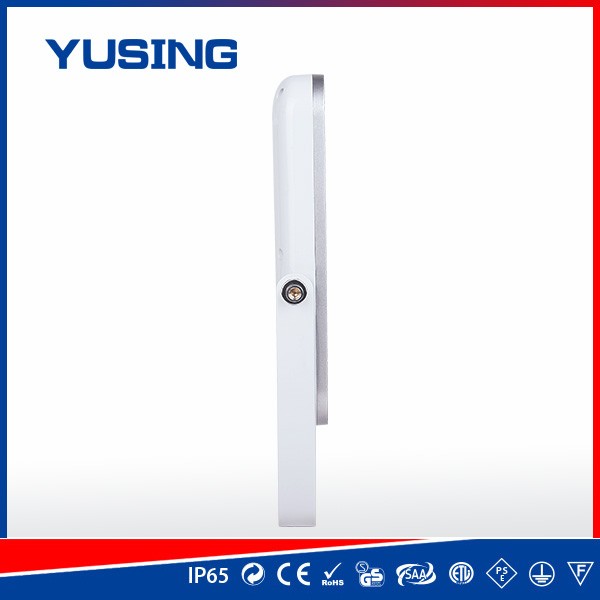

Ultra thin: 24.5mm

Details

The Fittings are available in two light colors

the warm light color which is perfect for accenting selected elements in modern interiors
the neutral light color which makes it possible to highlight the building façade and to expose the beauty of garden details from the dark by dynamizing their composition

Typical Applications

Replace of traditional incandescent lamp, CFL, halide lamp
Lighting application for home, office, school, office, factories, entertainment locations like hotel, restaurant, shop, bar ect
Lighting application for big buildings, playground, exhibition, garden, landscape, parth, parlour, ceiling, cupboard, floor, swimming pool ect.

Products certification

Packaging & Shipping

Ningbo Yusing Lighting Co., Ltd.

Patent 30W 240V LED Flood Light, Slim Design Outdoor LED Floodlight 30W
