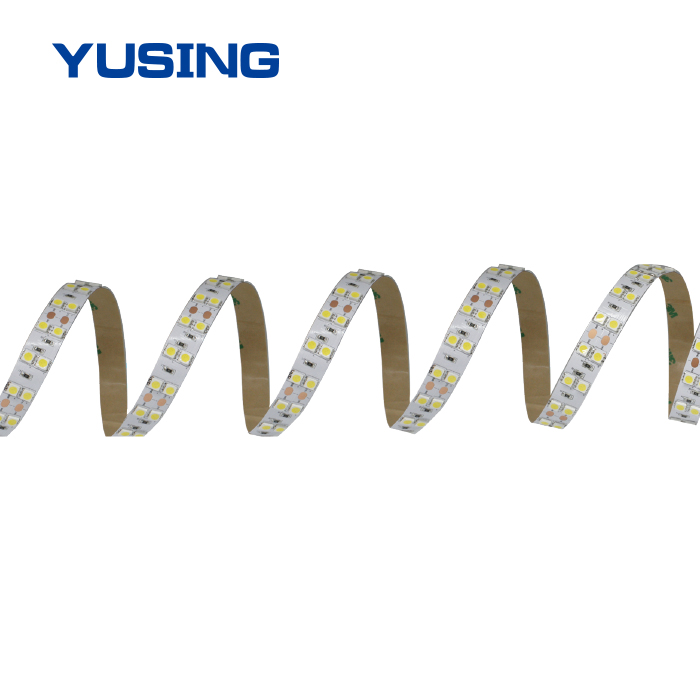

24Volt 2x60 LEDs/Meter Flexible SMD Double Sided LED Strip Light
Click on the image to view the original image
Product： views：324Volt 2x60 LEDs/Meter Flexible SMD Double Sided LED Strip Light
Branch： YUSING
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 16:46
  Negotiated
Product Details
Overview
Quick Details
Support Dimmer:
No
Input Voltage(V):
DC12V/24V
Lamp Power:
28W/M
Lamp Luminous Flux(lm):
5~6lm/LED
CRI (Ra>):
70
Working Temperature(℃):
-10 - 45
Working Lifetime(Hour):
50000
Lamp Body Material:
Copper
Certification:
CE, RoHS
Place of Origin:
Zhejiang, China
Brand Name:
YUSING
Model Number:
LR7-NW
Application:
Decoration
Light Source:
LED
Warranty(Year):
2-Year
Color Temperature(CCT):
4000-4500K
LED Light Source:
SMD 5050
IP Rating:
IP20 / IP65
Electrical Connection:
2*cable with 2-PIN to open wires
Max. quantityper powerinput:
5m
Size:
15*2.5mm / 16*4.5mm
Cuttable:
all 12 LEDs/ all 6 LEDs
Beam angle:
120°
Certificate:
CE,ROHS
LED Qty:
30LEDs/M,60LEDs/M,120LEDs/M,240LEDs/M etc
Supply Ability
Supply Ability:
300000 Meter/Meters per Month
Packaging & Delivery
Packaging Details
5M/Roll,1Roll/Anti-static Bag
Port
Ningbo/Shanghai/Shenzhen

24Volt 2x60 LEDs/Meter Flexible SMD Double Sided LED Strip Light


Data

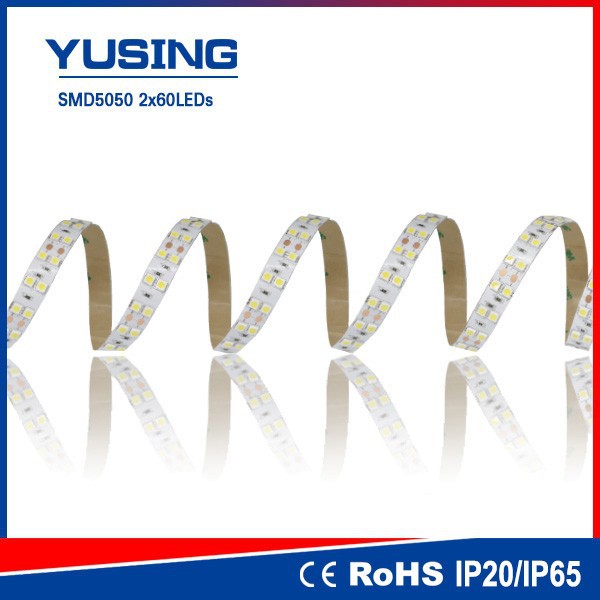

SMD5050 2x60LEDs/Meter

Model NO.

LEDColorPacking
(pcs/m3/kg)
LR7-R-5MLR7-R-1MSMD 5050Red20/0.02/5
LR7-G-5MLR7-G-1MSMD 5050Green20/0.02/5
LR7-B-5MLR7-B-1MSMD 5050Blue20/0.02/5
LR7-NW-5MLR7-NW-1MSMD 5050Neural White(4200K)20/0.02/5
LR7-WW-5MLR7-WW-1MSMD 5050Warm White(2700K)20/0.02/5
LR7-CW-5MLR7-CW-1MSMD 5050Cool White(6500K)20/0.02/5

Advantages
  • Assessed Supplier by TUV ;
  • ROHS,CE Certificated ;
  • Each LED can work independently;
  • Super bright top Epistar SMD LED, Low power consumption, high intensity;
  • High visual impact and excellent brightness ;
  • Lower luminous decay,no RF interference ;
  • Energy efficient,major reduction in power costs;
  • Unique circuit design with strong resistance against static electronic ensures the stability of the strip lights for long lifespan guaranteed;
  • Lifespan more than 50,000hrs ,3 Years" Warranty .
Features
  • Available in full range of single-color (red, yellow, green, blue, white, RGB full color);
  • Easy to install by the 3M tape on the FPC back;
  • Low power consumption,high intensity and stability;
  • PCB colour: Brown, white and black colour optional;
  • Easy connection with snap-in connectors;
  • Flexible & slim form, 5 meters/roll;
  • Every three or six LED lights can form a loop,every three or six LED lights can be cut along any of the above tangent, without damaging other parts.
Typical Applications
  • Stairway Accent Lighting;
  • Auditorium Walkway Lighting;
  • Backlighting For Signage Letters,Signboard;
  • Architectural Decorative Lighting;
  • Emergency Hallway,Exit Path Lighting ;
  • Theater And Archway, Canopy And Bridge Edge Lighting;
  • Construction,bridge,road,garden lighting etc.
