Click on the image to view the original image
- Item Type:
- Ceiling Lights
- Light Source:
- LED
- Install Style:
- Suspended
- Input Voltage(V):
- AC120-277V
- Lamp Luminous Flux(lm):
- 4400
- CRI (Ra>):
- 80
- Working Temperature(℃):
- -25 - 60
- Working Lifetime(Hour):
- 50000
- Lamp Body Material:
- Iron
- IP Rating:
- IP44
- Certification:
- ETL, UL, VDE
- Place of Origin:
- Guangdong, China
- Brand Name:
- Halcon
- Model Number:
- HG-L225A
- Application:
- office, Indoor Lighting Application
- Base Material:
- Iron
- Cover Material:
- Plastic
- Warranty(Year):
- 5-Year
- Color Temperature(CCT):
- Cool White
- LED Light Source:
- SMD2835
- Lamp Luminous Efficiency(lm/w):
- 180
- Power:
- 25w 20w 30w 40w
- Material:
- Iron+PC
- Color:
- White
- Warranty:
- 5years
- Name:

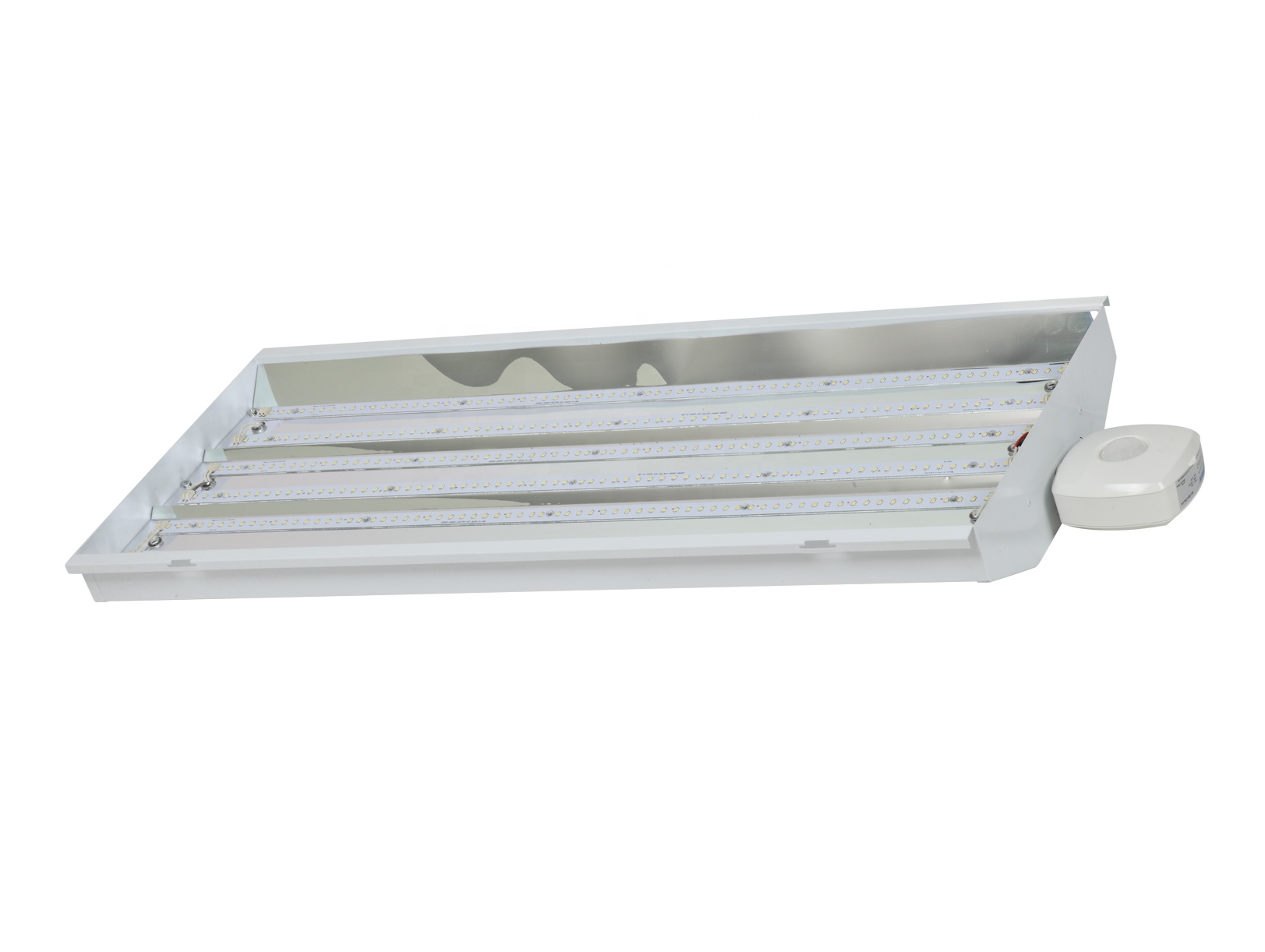

- LED Linear High Bay
- Shape:
- Rectangle
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 125X65X9 cm
- Single gross weight:
- 4.0 kg
- Package Type:
- 1pcs pack into 1 master carton, standard export packing
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 1 >1 Est. Time(days) 12 To be negotiated
5 Years warranty SMD2835 office 50W 68W led high bay 68w led troffer
CONSTRUCTION
Die formed of 0. 6mm cold-rolled steel body
All steel surface are painted after fabrication with high gloss backed white matte powder painted
High reflectance backed white acrylic paint finished
High-diffusion light-milky PC diffuser
Fully recessed luminaire fits standard T-Grid ceilings
ELECTRICAL
All electrical components are UL approved, Input Voltage from 120-277V digelu/Everlight/Edison SMD2835 LED Chips
Nextech 120-277V 1-10V LED Driver
5 Years Warranty
LABELS
CE, UL and cUL Listed, approved for dry/damp location unless otherwise noted
OPTIONS
1-Available for dimmable version
2-Available for emergency version
3-Available for installing with sensor
| LED SYSTEM | 80W | 100W | 120W | 150W | 180W |
| Total Input Watt | 50000hours | ||||
| Calculated L70 | 1040lm | 13000lm | 15600lm | 19500lm | 23400lm |
| Luminaire Efficacy Rating | 130lm/w | ||||
| Correlated Color Temperature | 3000k,3500k,4000k,5000k | ||||
| Color rendering Ind | >80 | ||||
Applications:
Led Rigid Bar 240W Led Offroad Light Bar
1.Car decoration
2.Architectural decorative lighting
3.Archway, canopy and bridge edge lighting
4.Amusement park, theater and aircraft cabin mood lighting
5.Emergency hallway lighting
6.Auditorium walkway lighting
7.Stairway accent lighting
8.Backlighting for signage letters
8.Channel letter lighting
10.Emergency exit path lighting
11.Cove lighting
12.Indoor and outdoor decoration
