2018 latest products, through the signal line or 2.4G wireless online control par light, convenient and quick.

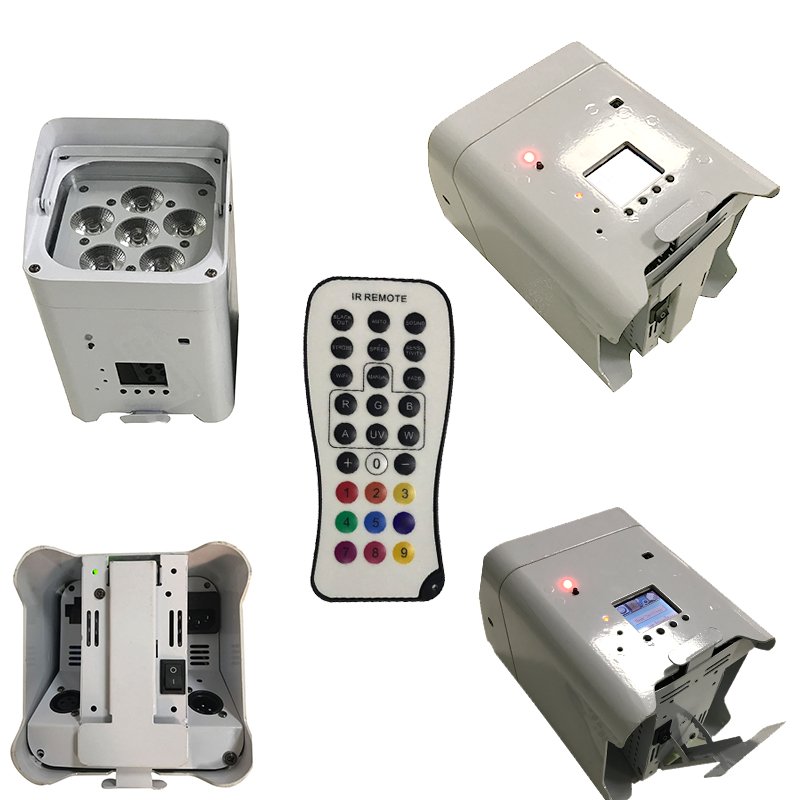

product Structure
Product Features

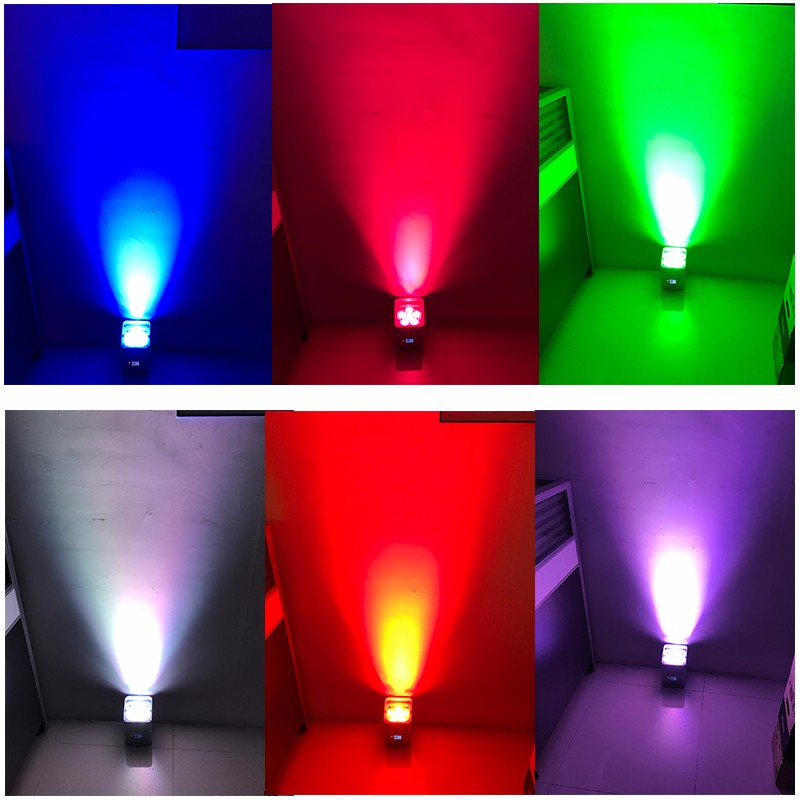

Product Effect
1.Product function
l DMX512 console control，can be controlled by signal wire or 2.4G wireless mode
l Master slave can be controlled by signal wire or 2.4G wireless mode
l Mobile cellphone WiFi operate control,support Android 2.3 above version，apple iOS 4.3 and 4.3 above version(this function only adopt for WIFI main board)
l Mobile phone APP：LEDWiFi language：software will automatic recognize Chinese or English by the system
l Static color selection(6color、dimming value 0-255) + strobe function（speed adjustment 0-20）.
l Macro color：32 colors optional.
l Color automatic change function（speed adjustment 1-20）.
l Color gradual change function （speed adjustment 1-20）.
l Color mutation function（speed adjustment 1-20）.
l With red color background strobe，with green color background strobe，with blue background strobe，with yellow color background strobe（speed adjustment 0-20）.
l 3 kinds of sound control function（jump change、jump change+gradual change、strobe）+ sound control sensitivity(0-100)can be adjust by menu or remote adjust control.
l 2.4G wireless electronic switch，can power on or off from 2.4G wireless power source，to discern and judge the wireless mode power on or off from the icon appear or disappear which on the top left corner of the display table.
l WiFi Module electronic switch，You can switch on or off the WiFi module power via the menu, and see whether the WiFi module is turned on or turned off through the top left corner of the interface white bal set ，make proper adjustment of the six color brightness （It also has the function of trimming current），numerical values（127-255）
l The battery icon in the upper right corner of the interface can be set to a closed state by setting an icon that can be turned on or off, such as a battery free product
l Screen saver settings: can be set to normally open or 5 seconds, 10 seconds, 15 seconds later, automatically turn off the screen backlight lighting
l Automatic key lock: can be set or turned on or off by menu
l Fan control: according to the temperature intelligent open fan or shut down, at the same time can be forced to set at high speed, medium speed, low speed mode
Infrared remote control function settings: can be set by menu, turn on or off
2.method of operation
To select a preset function, press menu button to enter the main menu, the screen will display the corresponding menu function, when you press the menu button again, select the next menu. If repeated press menu button will continue to select each menu function, the use of up/down in the main menu mode or also can the main menu selection, selection is completed, press the enter button to confirm or enter the next menu function. If there is a system parameter settings, press the enter button will automatically return to the menu function on the level of system parameters“Choose Pattern”
Select "choose pattern" (mode), press the enter button to confirm, the display will show the corresponding function menu. As static color, macro color mixing, acting mode, voice mode. Use up/down key to choose between functions, if press enter key, display will enter the next menu item, if the press the menu key to exit the menu mode on a higher level. The parameters will be automatically saved after selection.
“User Settings”
Select "user settings" (user console mode), press the enter button to confirm, the screen will enter the channel options, use the up/down button to select the "6ch" (6 channel mode), "10Ch" (10Ch channel mode), when you press the enter button again, the menu will automatically jump to the address setting mode, "DMX512" use the up/down button, can adjust the required to set the address code between 1 to 512, after choosing the parameters will be automatically saved. When receiving a DMX512 signal, the interface will appear "connection" prompt, if you disconnect the DMX512 signal, the interface will appear "disconnect" prompt, if press enter or menu button. The display will exit to the menu mode on a higher level.
The "slave" side mode select "slave" (slave mode), press the enter button to confirm, will display "OK!". That has entered the Deputy machine to receive mode, the parameters will be automatically saved after selection, when receiving the host signal, the interface will appear "connection" prompt, if you disconnect the host signal when the interface will appear "disconnect" prompt, if press enter or menu button will exit the menu mode to display on a higher level.
"System settings" system settings "system settings" mode (system settings mode), press the enter button to enter the next level menu, use the up/down button to select different settings in the settings, press enter or menu button will exit the menu mode to display on a higher level.
3.DMX512 Console control mode
In the "user settings" interface, press the enter button to confirm. "Channel display screen" (channel mode), use up/down key to choose according to "6ch" (6 channel mode) or "10Ch" (10Ch channel mode), press the enter button to automatically jump to the "DMX512" (DMX512 code set). Use the up/down button, can adjust the required to set the address code between 1 to 512, then we can receive the DMX512 console control signal. If you want to use this feature, please refer to the following diagram set before the 4 lamp DMX512 address:6CH： 1：A001，2：A007，3：A013，4：A019
10CH： 1：A001，2：A011，3：A021，4：A031
4.Main and sub computer built-in program control
With the main and auxiliary mode to connect multiple lamps, in addition to the first lamp, the other lamps behind select "slave" (sub machine mode), press enter The key that will display "OK!". That has entered the Deputy machine to receive mode, the parameters will be automatically saved after selection, when receiving the host signal, the interface will appear "connection" prompt, if you disconnect the DMX512 signal, the interface will appear "disconnect" prompt, if press enter or menu button, display the exit to the menu mode on a level. The first lamps as hosts, can choose all the acting mode, deputy machine will host synchronous control perform the same action.
5. WIFI operator mode
In the "user settings" interface, press the enter button, use the up/down button to select the "WiFi" (WiFi mode), press the enter button, the WiFi icon will appear, that has opened the WiFi module, then the mobile phone set to connect control. Open mobile phone settings, and find a wireless network WLAN, led_xxx connection the name of the device.When the connection is successful, exit the mobile phone function settings, open the ledhome application software, for the first time need to add scene, select the entertainment scene after storage, and then select the direct control, there will be color ring control interface, then we can make the corresponding mode of operation. Different mobile phone interface may be slightly different, but the function is the same.
6. DMX512 channel table
6CH mode:
Channel | number range | function declaration |
1 | 0~255 | Red dimming |
2 | 0~255 | Green dimming |
3 | 0~255 | blue dimming |
4 | 0~255 | white dimming |
5 | 0~255 | yellow dimming |
6 | 0~255 | purple dimming |
10CH mode:
Channel | Number range | Function instruction |
1 | 0~255 | Main dimming,+9th channel(0~9) |
2 | 0~9 | strobe off |
10~255 | strobe：10slowest，255fastest | |
3 | 0~255 | red，maximum The maximum is determined by the main dimming |
4 | 0~255 | green，The maximum is determined by the main dimming |
5 | 0~255 | blue，The maximum is determined by the main dimming |
6 | 0~255 | white，The maximum is determined by the main dimming |
7 | 0~255 | yellow，The maximum is determined by the main dimming |
8 | 0~255 | purple，The maximum is determined by the main dimming |
9
| 0~9 | Dimming mode |
10~29 | Color selection：10th channel choice color | |
30~49 | Jump change：10th channel control speed | |
50~69 | Gradual change：10th channel control speed | |
70~89 | mutation：10th channel control speed | |
90~109 | Red always bright+strobe：10th channel control speed | |
110~129 | green always bright+strobe：10th channel control speed | |
130~149 | blue always bright+strobe：10th channel control speed | |
150~169 | yellow always bright+strobe：10th channel control speed | |
170~189 | purple always bright+strobe：10th channel control speed | |
190~209 | Sound mode jump change | |
210~229 | Sound mode jump change+gradual change | |
230~255 | sound control strobe | |
10 | 0~255 | The function of this channel depends on the value of the ninth channel: when the ninth channel is in the 10~29, then the channel is used to select the color. When the ninth channel is at 30~189, then the channel controls speed: 0, slowest, 255 fastest |
7. Attention items
CAUTION
— Circuit board should not overlap keep，handle with care,not throw and out of place everywhere,prevent the circuit board deformation,prevent the bad situation,such as damage of components,welding spot fall off。
— Power import range 12-36V，different light circuit board will import different power，please consult before operate，avoid the bad situation burn board or led bead from the current source，cause unnecessary economic loss，power positive and negative can not connect reversed。
— When assembling,you ought to handle the side of the board，do not touch and press the component to assemble，avoid the welding spot fall off or damage 。
— All the connect wire terminal should be assemble follow the correct connect way，pay attention about the direction and pole。
— Please do not operate with power on or unplug the cable，avoid the short circuit or components damage。
— As far as possible anti-static electricity treatment。
— The burn and defect which from customer Incorrect operation or other factitious issues will not in scope of exchange,The cost of the components is charged for maintenance。
