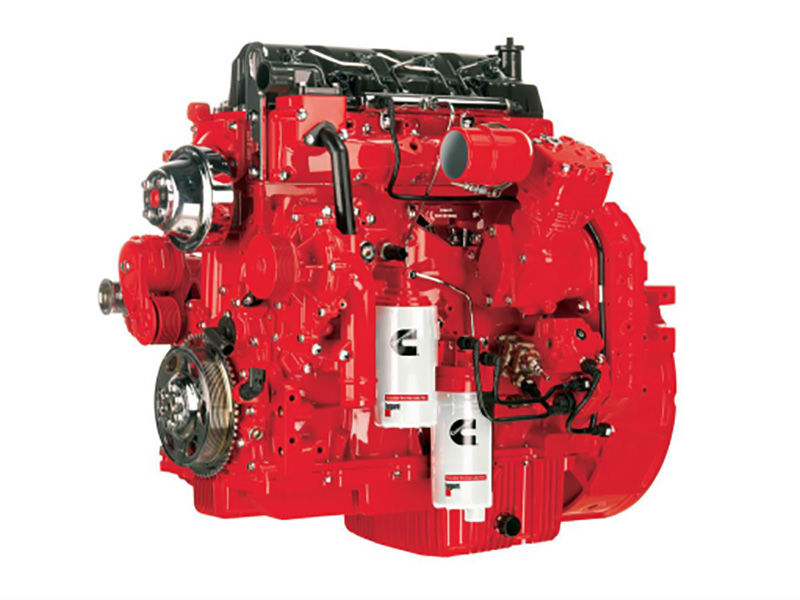

Cummins Diesel Engine

Cummins engines are designed and manufactured by Cummins. Cummins engine displacement ranges from 1.4 to 91 liters, and the power range covers 31 to 3500 horsepower. It is widely used in road vehicles such as heavy trucks, medium trucks, buses, recreational and recreational vehicles, light commercial vehicles and pickup trucks, as well as engineering machinery, mining equipment, Off-highway equipment such as agricultural machinery, ships and railways.

Cummins engine reliability, durability and fuel economy are among the few in the industry, and they have been leading the industry in meeting fierce competition from increasingly stringent automotive emissions, off-highway motor equipment emissions, and marine engine emissions.

Power range coverage: 31 ~ 3500 horsepower

Engine displacement: 1.4 ~ 91 liters

Introduction

Cummins Inc. (NYSE: CMI), which pioneered diesel-engine vehicles, was founded in 1919 and is headquartered in Columbus, Indiana, USA. Cummins is a leading global power equipment manufacturer. It designs, manufactures and distributes engines and related technologies including fuel systems, control systems, intake air treatment, filtration systems, exhaust gas treatment systems and power systems, and provides corresponding after-sales services. service. Cummins is headquartered in Columbus, Indiana, USA, and provides services to customers through its more than 550 dealer outlets in more than 160 countries and regions around the world.

Business Unit (EBU)

The Engine Division produces and distributes diesel and natural gas engines with a wide range of power and corresponding component products for use in the automotive, industrial, and power generation industries. Cummins engine displacement ranges from 1.4 to 91 liters, and the power range covers 31 to 3500 horsepower. It is widely used in road vehicles such as heavy trucks, medium trucks, buses, recreational and recreational vehicles, light commercial vehicles and pickup trucks, as well as engineering machinery, mining equipment, Off-highway equipment such as agricultural machinery, ships and railways. Cummins engines are not only known in the industry for first-class reliability, durability, and fuel economy, but also to meet increasingly stringent automotive emissions (US EPA 2007/2010, European Nos. 4 and 5), and off-highway motor equipment emissions (Tier 3 and above) And the fierce competition of marine engine emissions (IMO standard) has been in the leading position in the industry.

Advantage

First: forward-looking design and development capabilities, Cummins can develop corresponding solutions for different emission standards.

Second: mature supporting capabilities, Cummins' emission control technology can be perfectly matched with the engine life cycle and the entire vehicle, so that customers get the best economic benefits.

Third: Advanced exhaust emission control technologies, including cooled exhaust gas recirculation (COOLED EGR), selective catalytic oxygen (SCR), and particulate filter (DPF).

Fourth: Bulk procurement capabilities. With the continuous expansion of the Cummins emission aftertreatment market, a batch procurement scale has been formed to provide customers with cost-effective products.

Cummins Engine Highway Market

Cummins ISF series 2.8 / 3.8-liter engine

Cummins ISB series 4.5 liter, 6.7 liter / ISL series 8.9 liter engine

Cummins ISM series 11 liters launched

Features

B series

More fuel-efficient: Originated from Cummins' advanced design and sophisticated manufacturing, fuel consumption is much lower than similar products.

Powerful: The design of the wastegate valve makes the low-speed performance more perfect and the power better.

Excellent reliability: The integrated design of the cylinder body and the cylinder head prevents the occurrence of water and oil leakage, and the parts are more than 25% less than other similar products. Greatly reduced failure rate

Lower maintenance costs: The lower number of parts and lower operating failures greatly reduce the overall engine maintenance costs. Maintenance time is saved by more than 50% compared with other similar products.

Excellent cold-start performance: It is equipped with intake electric warm-up settings and a 6.6KW high-power starter, which has completely improved the cold-start performance of the engine. Passed China's Arctic Village-Mohe 36 degrees below zero

Meet Euro 2 emission standards

C series

More fuel-efficient: Originated from Cummins' advanced design and sophisticated manufacturing, the use and economic improvement of China make the fuel consumption 20% lower than similar domestic products

Powerful: Low-speed power has been fully upgraded for better starting performance. Faster acceleration and better climbing performance.

Excellent reliability: sufficient margins are reserved for the design of key components. The strength is more than 30% of other similar products. Engine life is longer.

Lower maintenance costs: The lower number of parts and lower operating failures greatly reduce the overall engine maintenance costs. Maintenance time is saved by more than 50% compared with other similar products.

Excellent cold-start performance: Configure the intake air preheating setting and 7.8KW high-power starter, which has completely improved the cold-start performance of the engine. Passed China's Arctic Village-Mohe 36 degrees below zero

Meet Euro 2 emission standards

The Difference

The M-series engine has a displacement of 11 liters (670 cubic inches) and the N-series engine has a displacement of 14 liters (855 cubic inches).

M11 power range 168-373kW, bore x stroke: 125 x 147 mm.

N14 power range 146-358 kW, bore x stroke: 140 x 152 mm.

The M11 series engine is smaller than the N series. The M series imported parts are 56%, and the N series imported parts are only about 10%. Compared with the N series engine, the technology maturity is better than the M series. The M11 engine is more expensive than the N series engine.

Model

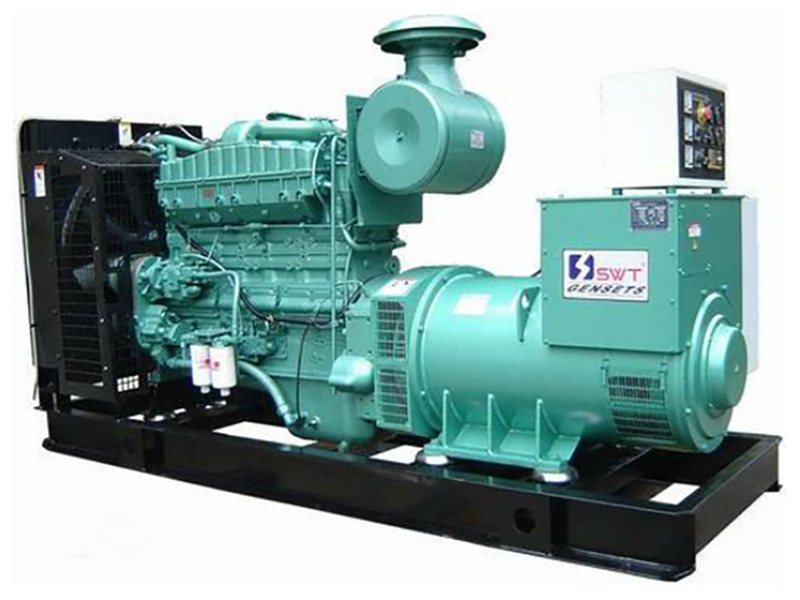

Cummins diesel generator components are joint venture Dongfeng Cummins, joint venture Chongqing Cummins and original imported Cummins.

Its power segment of Dongfeng Cummins is between 20kw-200kw. Common models are: 4B3.9-G1, 4BT3.9-G1, 4BTA3.9-G2, 6BT5.9-G1, 6BTA5.9-G2, 6CTA8.3-G2, 6CTA8.3-G3, 6LTAA8.9- G2

The power segment of Chongqing Cummins is between 200kw-1000kw. Common models are: NT855-GA, NTA855-G1A, MTAA11-G3, NTA855-G2A, NTAA855-G7A, KTA19-G3, KTA19-G4, KTAA19-G5, KTAA19-G6A, KTA38-G2, KTA38-G2A, KTA38- G5, KTA38-G9

The power section of imported Cummins is between 120kw-1800kw. Common models are: KTA19-G3, KTA19-G4, VTA28-G5, VTA28-G6, KTA38-G5, KTA38-G9, KTA50-G3, KTA50-G8, QSK60-G3, QSK60-G4

Mine market

The machine can meet the power requirements from small construction machinery to large equipment to the largest extent, and provides ideal power for various types of construction machinery such as excavators, loaders, rollers, graders, pavers, air compressors, cranes and forklifts.

Cummins engine specifications for construction machinery

Cummins is the world's leading manufacturer of mining engines. It has the broadest product line in the industry, with a displacement covering 15-78 liters and a power range of 600-3500 horsepower. It is widely used in various mining equipment, from rock drills to the largest mines truck in the world.

Agricultural market

Cummins agricultural engines have a wide product line, with displacement covering 1.4-15 liters, power range 31-600 horsepower, mechanical and full electronic control methods, excellent power, reliability and fuel economy, meeting today's requirements The most stringent European and American non-road motor equipment emission standards (Tier3 or higher).

Ship market

Cummins has been successful in the marine machinery market since its inception. The first engine we successfully designed and manufactured was for ships, and we didn't stop there. In fact, between 1919 and 1934, more than half of our products were used on ships. From 76BHP to 2000BHP (57-1492KW), Cummins marine engines are used in various types of vessels such as trawlers, ferries, yachts, work boats, tugboats, fishing boats, fire boats, passenger ships and so on.

Oil field market

Cummins is the world's leading manufacturer of oil and gas field power equipment. It can provide a full range of power for oil and gas field drilling, workover and production equipment, including engines, generator sets, mobile power stations, filters, fire pumps and exhaust aftertreatment devices. solution. Cummins oil and gas field engines, including mechanical and fully electronic 1.4- to 78-liter diesel engines and 5.9- to 91-liter natural gas engines, meet emissions of today's most stringent roads (US EPA07, Euro III / Euro IV) and off-highway equipment (U.S. Tier 2 / Tier 3) emission standards are widely used in petroleum rigs, workover rigs, fracturing trucks, pump units and gas compressor units.

Railway market

With the rapid development of the railway transportation industry, increasing the operating speed, increasing passenger capacity, and reducing operating costs have become the most critical issues in railway operations. The basis for solving these problems lies in improving the performance of vehicle engines. In order to meet the above requirements, Cummins has developed a series of engines suitable for the railway transportation industry. These products have the following characteristics: high power, high durability, low emissions, and low lifetime operation and maintenance costs of the engine. The power range of the engine series is 68-3500 horsepower, and all of them are electronically controlled, which can meet the second and third phase (Tier 2 / Tier 3) emission standards of European and American non-road motor equipment, and fully meet the operator's environmental protection requirements. Claim.

Power Products

Cummins Power's product line includes diesel and alternative fuel generator sets (2.5 kW ~ 2.7 MW), alternators (0.6 KVA ~ 30,000 KVA), unit engines, control systems, transfer switches (40 amps ~ 3,000 amps) And switch cabinets are widely used in office buildings, hospitals, factories, municipalities, power plants, universities, recreational vehicles, yachts and home power supplies.
