With the increasing modularity of equipment and systems, the size of machines used in the industrial sector is getting smaller and smaller. What it needs is a compact, modular and durable connection for small loads. HARTING is catering to this trend with Han® 1A. The rectangular connector has many advantages: it is suitable for data, signal and power transmission, and provides an ideal solution for control system, small drive and switch cabinet installation.
The new product series' housings, connectors and cable glands are made of high-performance plastic, so the connectors are lightweight. Han® 1A is smaller than all previous Han® solutions. Compared to Han® 3A, the smallest rectangular connector series to date, space requirements are reduced by approximately one third.
The modular design of Han® 1A allows maximum flexibility for a wide range of applications. With just a few design elements, you can develop a solution for every task. Rated up to 16 A / 400 V, up to 12 signal contacts per connector, and capable of transmitting data at 10 Gbps (Category 6).

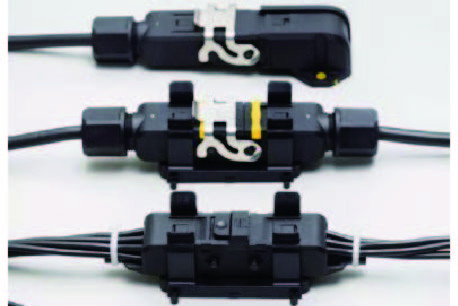

The new connector series can provide appropriate solutions according to customer requirements. As a result, users can choose between a classic metal clip lock and a latch that has been integrated into the housing. In addition, the connection technology offers two options: screw connection and crimp connection.
In addition, various practical accessories enhance flexibility. Han® 1A systems can be converted from IP20 solutions to IP65 connectors suitable for harsh industrial environments in seconds using cable connectors or single wire seals.
Han® 1A overview:
-Light weight overall: Compared with metal connectors, Han® 1A with plastic components is lighter overall.
-Versatility: The modular concept allows it to provide "custom" solutions for a variety of applications. Han® 1A offers connectors for data, signal and power transmission, as well as various accessories.
-Save time: Since all single-piece components have a simple "engage / click" design, the connector can be assembled in seconds.
-Space saving: Han® 1A modules are in line with miniaturization trends. At the same time, reliable Han® connectors can be created even in harsh industrial environments.
-Cost savings: The modular system consists of only a few single-piece components. Almost infinite solutions can be created with a small number of different components, ultimately reducing storage costs.
-Super Category 6 data transmission: Han®1A is extremely flexible. In addition to transmitting power and signals, it also supports high-speed data transmission.
-IP protection can be achieved if necessary: IP65 protection can be easily achieved using housing elements or single wire seals.

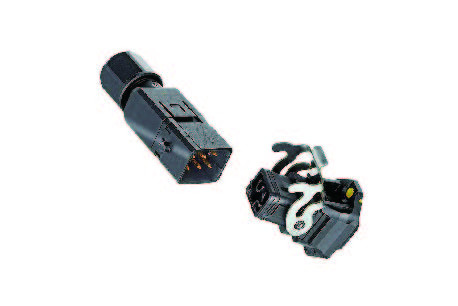

Rectangular plastic connector Han® 1A suitable for data, signal and power transmission
