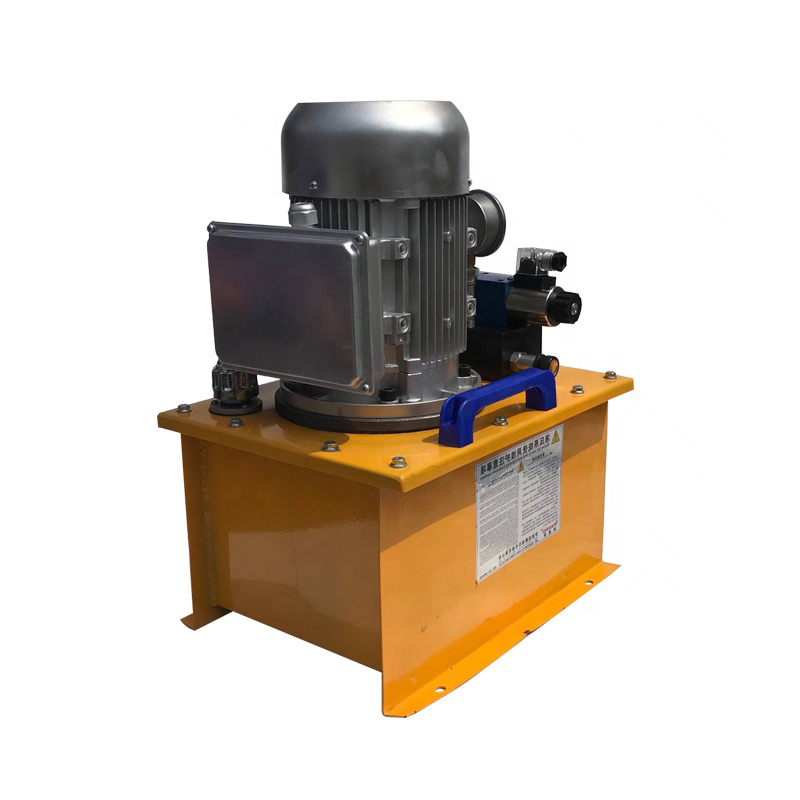

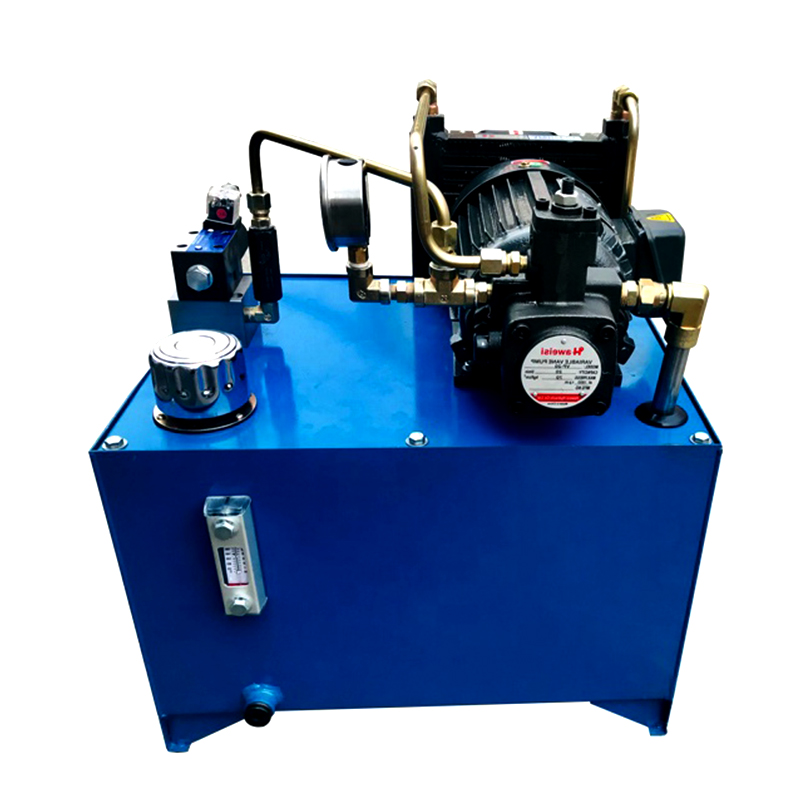

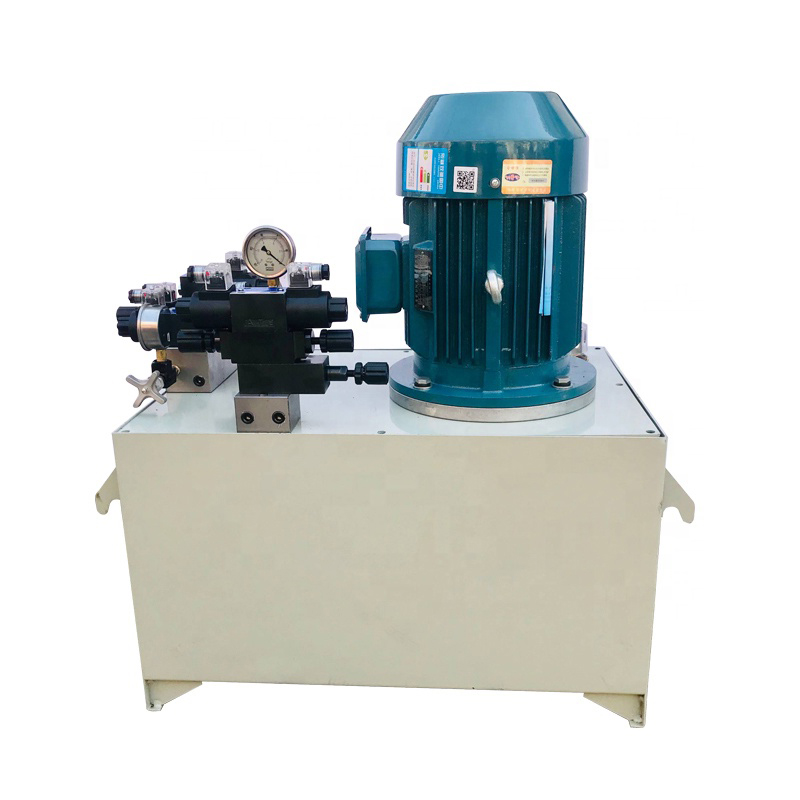

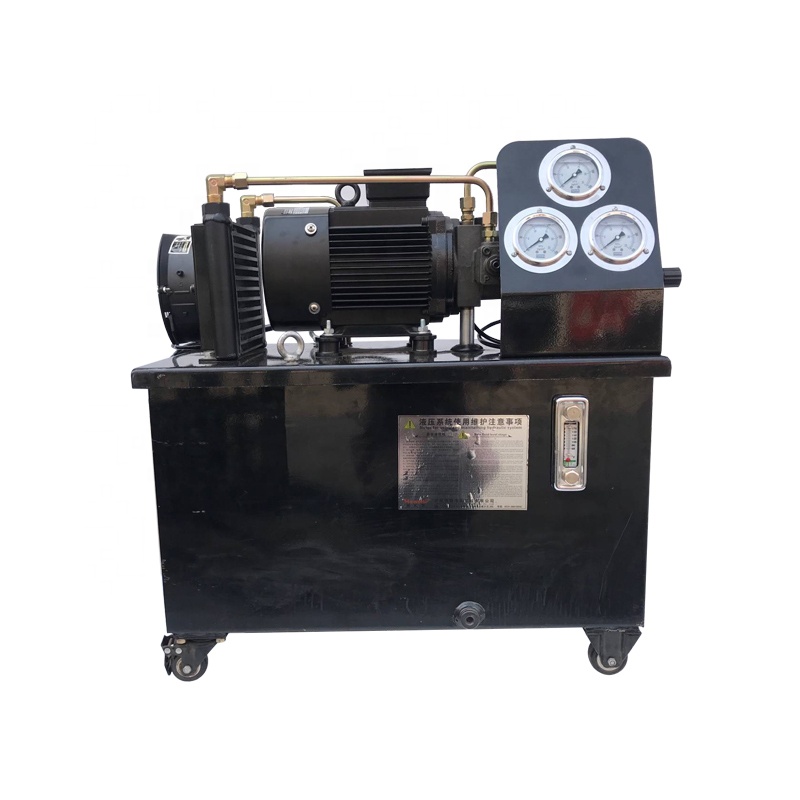

Hydraulic station function Hydraulic station is generally for large and medium-sized industrial production of mechanical operation to provide lubrication, power electromechanical devices.
The use of hydraulic system is due to the hydraulic system in power transmission has a wide range of USES, high efficiency and simple structure characteristics.The primary task of a hydraulic system is to convert power from one form to another.
Hydraulic station is also called the hydraulic pump station, motor drive the oil pump, the pump from the fuel tank preview after oil absorption, can convert mechanical energy into hydraulic oil pressure and hydraulic oil through the integrated block (or valve) by hydraulic valve realizes the direction, pressure, flow rate adjustment after the external transmission line to the oil cylinder of hydraulic machinery or oil motor, so as to control the size of the liquid motive direction transformation, power and speed of speed, drive all kinds of hydraulic machinery work is done.
Hydraulic station is independent of the hydraulic device and its oil supply, according to the requirements of driving device (host) and control the oil flow direction, pressure and flow, it is suitable for the host and the hydraulic device can separate all kinds of hydraulic machinery, the oil pump driven by motor rotation, pump from the fuel tank preview after oil absorption, can convert mechanical energy into hydraulic oil pressure.
After the purchase of the user as long as the hydraulic station and the main engine of the actuator (oil cylinder and oil motor) with oil pipe connected, hydraulic machinery can achieve a variety of specified action, working cycle.
Structure installation:
1) upper mounted vertical 2) upper mounted horizontal 3) side mounted
Cooling method:
1) natural cooling and 2) forced cooling
Tank form :
1) ordinary steel plate 2) stainless steel plate
Structure :
1) piston type 2) plunger type 3) telescopic type 4) swing type
TY1S (B792S), B157, TE130 are used for 2JK, 2JK/A, 2JK/E single-rope double cylinder series hoist.
TY1D (B792D), B159, TE131 are used for JKM-C, JKMD-C, JKMD-A, JKMD-A, JKMD-E, JKMD-E tower-type and floor type multi-rope hoist of JK, JK/A, JK/E single-rope single-barrel series.
Hydraulic delay two-stage brake hydraulic station:
TY3S (TK083S) and TE002 are used for single-rope and double-barrel series hoist (same as above).
TY3D (BTK083D) and TE003 are used for single-rope single-barrel series hoist and multi-rope series hoist (tower type and floor type) (same as above).
Functional components:The hydraulic station is composed of pump device, manifold block or valve combination, oil tank and electric box. The functions of each component are as follows
components and parts:(1) motor and gear pump (2) electromagnetic directional valve (3) electromagnetic relief valve (4) pressure reducing valve (5) speed regulating valve (6) hydraulic oil filter (7) pressure gauge (8) air filter (9) oil level gauge (10) temperature gauge (11) connecting pipeline
The use of hydraulic station on the gas generator has been very common, which is used for the transmission of coal feeding mechanism and ashbasin. Reasonable maintenance and maintenance should be paid attention to during the use:
1. If oil leakage and other abnormal phenomena are found in the pipeline during work, stop the machine for repair immediately.
2. In order to extend the service life of hydraulic oil, the oil temperature should be less than 65℃;Check the quality of hydraulic oil every three months, depending on the quality of hydraulic oil half a year to once a year.3. Timely observe the level of the oil level gauge in the oil tank, and replenish the required hydraulic oil in time to avoid empty of the oil pump.
4. Clean or replace the oil filter regularly.
5. Keep the working environment of the hydraulic station clean and tidy.
