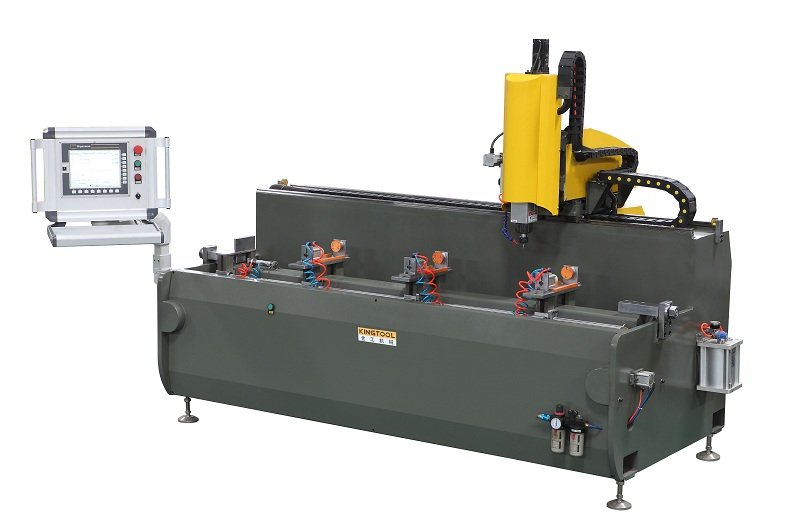

Introduction of KT-G393 Aluminum Profile CNC Drilling and Milling Machine

   date:2020-10-27     browse:0    comments:0
Summary:Introduction of KT-G393 Aluminum Profile CNC Drilling and Milling Machine











Suitable for processing holes, launder slots, lock holes on all kinds of aluminum alloy profiles. Processing three sides of profile after once loading. Adopts Germany PA CNC system, flexible touch screen and mouse control, offer friendly operate surface. Adopts 3.5KW main spindle, manual tool changer, high precision processing on various kind of profile. Worktable can automatic rotate at (-90)~0~(+90) degree. Adopts spray cooling system, cooling tools.



Main Technical Parameter

1.

Worktable rotation angle

(-90)~0~(+90) degree

2.

Saw cutting (L*W*H)

2000*150*120mm

3.

Main motor power

3.5kw

4.

Main spindle rotary speed

12000r/min

5.

Tool

ER25

6.

Operation air pressure

0.6-0.8Mpa

7.

Operation power

380V

8.

Feeding speed:X/Y/Z

30/20/15m/min

9.

Servo motor (Japan YASKAWA) X/Y/Z

0.75/0.75/0.4kw

10.

Working accuracy: Position

                 Reposition

                 Drilling sag

                 Cylinderical

+/-0.1mm

0.1/100mm

0.1mm

0.1mm

11.

Overall dimension

2370*1100*1600mm

12.

Weight

1000kg
