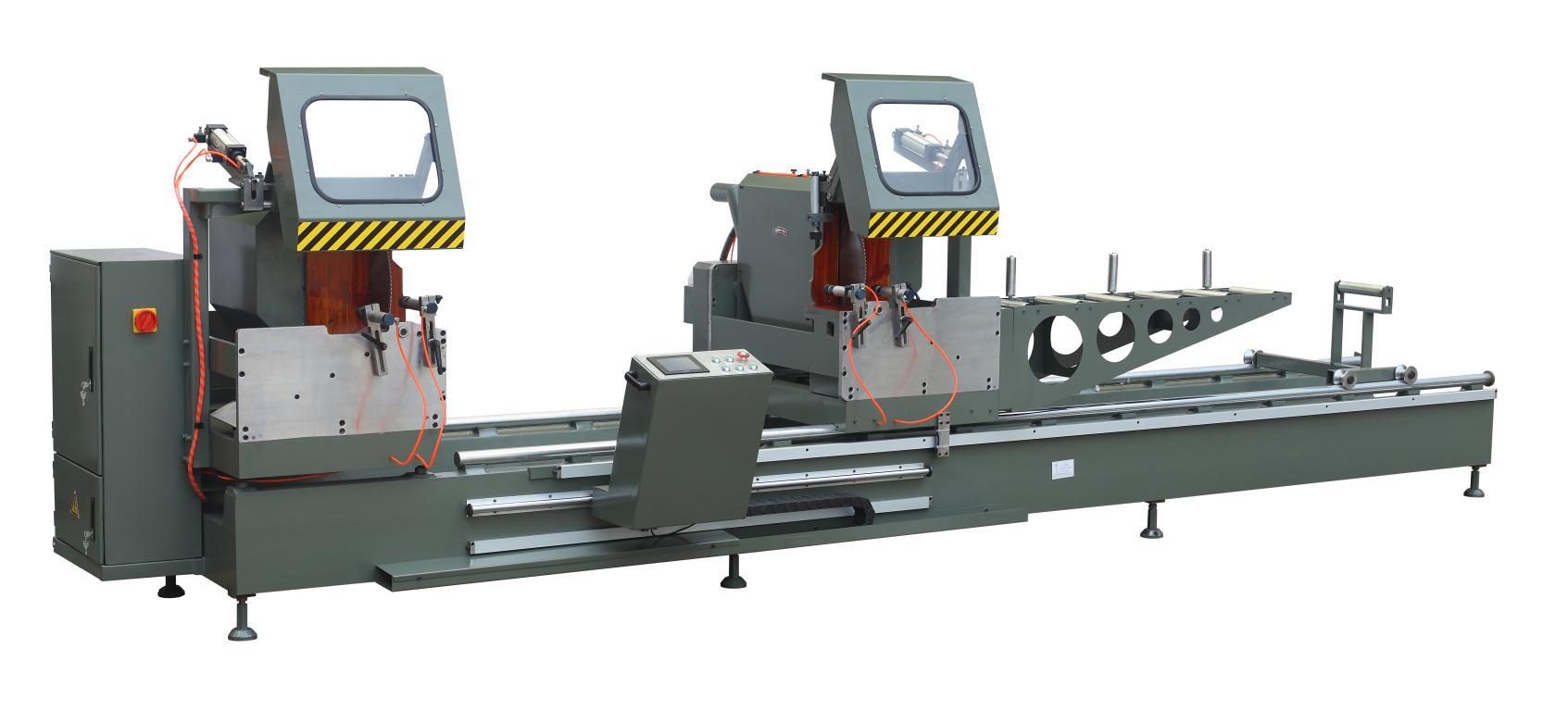

KT-383FC CNC Double Mitre Saw

   date:2020-10-27     browse:0    comments:0
Summary:KT-383FC CNC Double Mitre Saw





(only 45 and 90 degree cutting)

It is mainly used in the aluminum alloy curtain wall material, cutting material plan of window material, also available in cutting material plan or plastic profile. By using hard alloy saw blade, the outer diameter is 20", Both its line speed and processing precision are high. When the machine bed works, the blades of double-head saws can carry on cutting simultaneously or separately. The saw blades cut 45° and 90°. In this machine bed, Japanese Panasonic NC system and feedback system of German ELGO original assemble, whose positioning precision is high, repeating positioning precision is about ±0.1 mm, Italy original assemble motor, whose cutting precision is high, and its stability is good, so they are more suitable for cutting at any angle for aluminum door and window and aluminum curtain wall material.



MAIN TECHNIQUE PARAMETER

1.

Saw cutting length

420(90°)-4500mm

2.

Saw cutting (W×H)

135 x 260mm

3.

Main motor power

2.2kw x 2

4.

Main motor rotation speed

2850 rpm

5.

Saw blade dimension

ø500 x ø 30 x 120T

6.

Swing angle of saw blade

4 and 90°

7.

Saw blade feeding speed

0~3m/min

8.

Saw blade retracting speed

2~3m/min

9.

Operation air pressure

0.6~0.8Mpa

10.

Overall dimension(L×W×H)

7500 x 1700 x 1750mm

11.

Weight

2100kg


Article Source: KT-383FC CNC Double Mitre Saw
