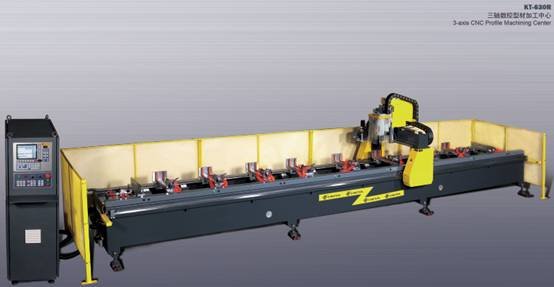

1. Suitable for processing of installation holes, launder slots, lock holes on aluminum alloy profiles.
2. Processing of all the holes and launder slots on one side after once loading, high efficiency.
3. Adopts PA CNC system, offers friendly operation surface.
4. Adopts Italian high speed and efficiency spindle, ensures perfect performance in various kinds of processing.
5. Adopts high quality AC servo motor, ball lead screws and linear guide track, ensures high precision.
6. Adopts HSD high speed main spindle.
7. Adopts 6-position automatic tool changer, changes tools automatically.
8. Adopts protection device, ensures operator’s safe.
9. Adopts automatic positioning and clamping system.
10. Adopts spray cooling system, cooling tools.
MAIN TECHNIQUE PARAMETER
1. | Work area: X/Y/Z axis | 6500/500/250mm |
2. | Working accuracy Locating Repeat locating Drilling sag Cylinder Cutting surface roughness | +/-0.1mm +/-0.05mm 0.1/100mm 0.1mm Ra12.5um |
3. | Speed of feeding: X/Y/Z | 52/35/18m/min |
4. | Blade exchange time | 20 seconds |
5. | Spindle: Power/rev | 7.5Kw / 24000 rpm |
6. | Servo motor(YASKAWA): X/Y/Z/C/R (Tools store) | 1.30/0.75/0.75/0.4 Kw |
7. | Max. collet diameter | ø16 |
8. | Voltage/total power | 380V50HZ/10KW |
9. | Overall dimension of lather (L×W×H) | 5550 x 1300 x 1600mm |
10. | Overall dimension of control box (L×W×H) | 600 x 1400 x 1800mm |
11. | Power supply | 20KVA |
12. | Operation air pressure | 0.6~0.8Mpa |
13. | Weight | 4500KG |

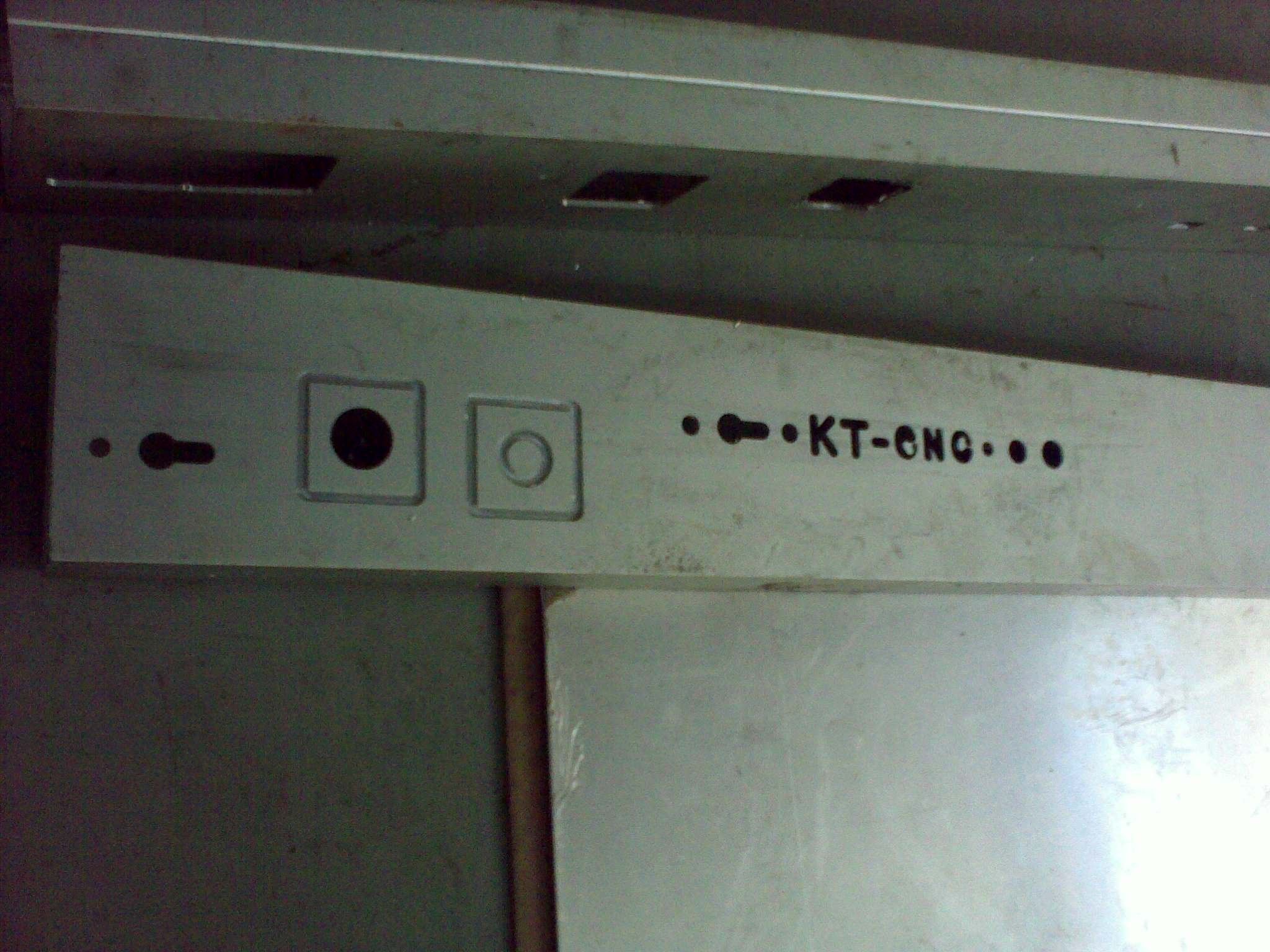

SAMPLE
