KT-S860 4-Axis CNC Machine attended Guangzhou Baiyun Airport Terminal 2 project

   date:2020-10-27     browse:0    comments:0
Summary:Our machine KT-S860 4-Axis CNC Machining Center is very honor to attend Guangzhou Baiyun Airport Terminal 2 project

The new terminal T2 of Guangzhou Baiyun Airport goes in service from 26 April 2018. The terminal building is about 658,7000 square meters, comprehensive transportation center is about 222,000 square meters. The passenger capacity can reach 45,000,000 per year.

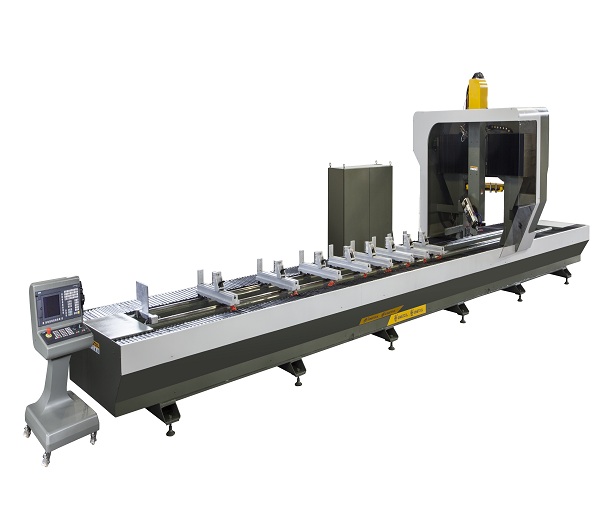

Our machine KT-S860 4-Axis CNC Machining Center is very honor to attend this amazing project. KT-S860 is suitable used for milling ,drilling ,cutting on aluminum alloy profiles, PVC, light alloy profiles. It can completed -110°--1+110° processing after one loading , and also with Siemens 828D CNC system, HSD Italian spindle, to make sure the high precision and efficiency.

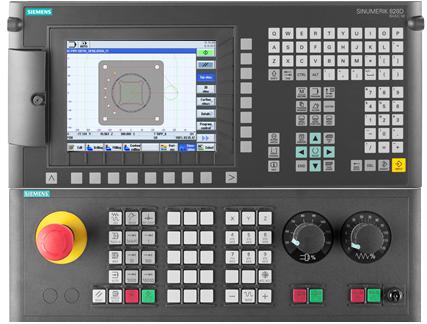

                SIEMENS 828D CNC SYSTEM



Machine Technical Parameter

Item

unit

         Data

Processing size

X-axis

mm

8500

Y-axis (3-axis)

mm

650

Y-axis (4-axis)

mm

600

Z-aixs

mm

500

A-axis angle range

-110-  +110

Processing precision

Positionning

mm

±0.1

Re-positioning

mm

±0.02

Extent of prependcicularity

mm/mm

0.1/100

Rough

mm

0.1

Extent of circularity

um

Ra 12.5 um

Feeding speed

X-axis

m/min

70

Y-axis

m/min

40

Z-axis

m/min

40

A-axis

r/min

102

Tool magazine

Tool quantity

6-position

ISO30

Blade change time

s

8

collet

Max. Diameter

mm

Ø 16

Main spindle (Italian HSD)

Power /rotary speed

KW /rpm

7.5/24000

Servo motor (Siemens)

X

KW

3.3

Y

KW

2.3

Z

KW

3.3

A

W

850

Voltage /Power supply

Total

380V 50HZ/10KW

Overall dimension of machine

mm

11300×2500×3200 mm

Overall dimension of electrical box

mm

600x1400x1800

Power source

Power

KVA

20

Air pressure

Kg/cm2

68


Air pressure

0.8MPa
0.2m3/min

Tool Size

 ф3mmф16mm

Weight

6500kg

Size

a)11500
b)2500
c)2800
