Skip Bins Standard Sizes
Description | Drawing NO | Weight(Kgs) | Internal Size
L*W*H(mm) | Plates
Side(mm) Floor(mm) | Door | Fork channel(mm) |
2M skip bin | HE-SK-2000 | 260 | 1800*1500*900 | 3 | 4 | NO | NO |
3M skip bin | HE-SK-3000 | 345 | 2400*1500*930 | 3 | 4 | NO | NO |
4M skip bin | HE-SK-400 | 435 | 3200*1500*930 | 3 | 4 | NO | NO |
5M skip bin | HE-SK-5000 | 515 | 3200*1500*1230 | 3 | 4 | NO | NO |
6M skip bin | HE-SK-6000 | 575 | 3600*1500*1250 | 3 | 4 | NO | NO |
8M skip bin | HE-SK-8000 | 730 | 4000*1500*1500 | 3 | 5 | NO | NO |
9M skip bin | HE-SK-9000 | 1025 | 4200*1650*1650 | 4 | 5 | NO | NO |
10M skip bin | HE-SK-10000 | 1090 | 4500*1650*1650 | 4 | 5 | NO | NO |
Description | Drawing NO | Weight(Kgs) | Internal Size L*W*H(mm) | Plates Side(mm) Floor(mm) | Door | Fork channel(mm) |
3M skip bin | HE-SKD-3000-N | 410 | 2400*1500*930 | 3 | 4 | YES | NO |
4M skip bin | HE-SKD-4000-N | 520 | 3200*1500*930 | 3 | 4 | YES | NO |
5M skip bin | HE-SKD-5000-N | 600 | 3200*1500*1230 | 3 | 4 | YES | NO |
6M skip bin | HE-SKD-6000-N | 645 | 3600*1500*1220 | 3 | 4 | YES | NO |
Description | Drawing NO | Weight(Kgs) | Internal Size L*W*H(mm) | Plates
| Door | Fork channel(mm) |
Side(mm) Floor(mm) | End(mm) | Base end(mm) | Back wall |
7M skip bin | HE-SKD-7000 | 860 | See drawing | 3 | 5 | 3 | 4 | 4 | YES | NO |
8M skip bin | HE-SKD-8000 | 985 | See drawing | 3 | 5 | 3 | 4 | 4 | YES | NO |
9M skip bin | HE-SKD-9000 | 1010 | See drawing | 3 | 5 | 3 | 4 | 4 | YES | NO |
10M skip bin | HE-SKD-10000 | 1215 | See drawing | 4 | 5 | 3 | 4 | 4 | YES | NO |
12M skip bin | HE-SKD-12000 | 1300 | See drawing | 4 | 5 | 3 | 4 | 4 | YES | NO |
Skip bin is a large open-topped waste container

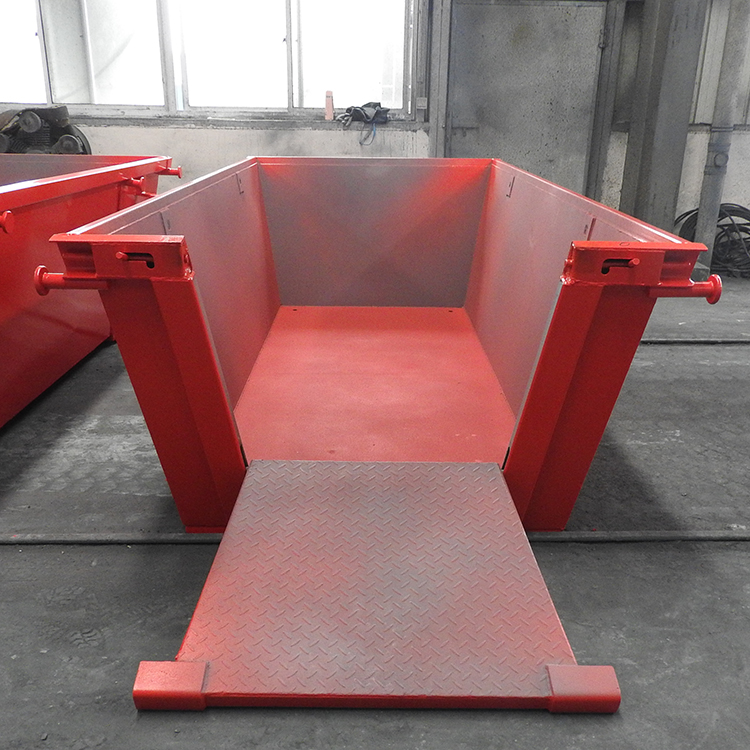

One end of the skip sometimes has a large door that hinges down to allow manual loading and unloading.
Normal sizes used in Australia are 3m3, 4m3 and 6m3. However, sizes ranging from 8m3, 10m3, and 12m3 are also available for larger waste management jobs.
Mini Skip Bins（sized from 2 to 3 cubic metres）
They are ideal for small projects like household cleaning, garden cleaning, etc. They’re more often suited for weekly waste collections from homes or residential areas.
Middle Sized Skip Bins ( sizes from 4 to 10 cubic metres)
They can carry double the weight capacity of mini sized skips and are designed to hold an enormous amount of industrial and commercial rubbish.
Jumbo Sized Skip Bins (sizes ranging from 10 to 30 cubic metres)
They are more common as industrial containers and are not suitable for domestic use.
