With the arrival of emerging fields and new economic models such as Internet of things, big data, intelligence, 5G, industry 4.0, unmanned driving and telemedicine, China's connector manufacturers are facing rare opportunities for development. In the future, more connectors will appear in the form of modularization, miniaturization, functionalization and intelligence.
Smart connector Munich electronics show was first proposed in 2010, the international comparison recognition is defined as: smart connector should have self configuration and self test, recovery environment adaptive capacity and the characteristics of more safety, energy saving, with the concept of "intelligent connection", on the basis of existing information and energy transmission function, and gradually increase such as information and communication, protection, programmable logic operation, standard conversion, sensing and detection, etc.

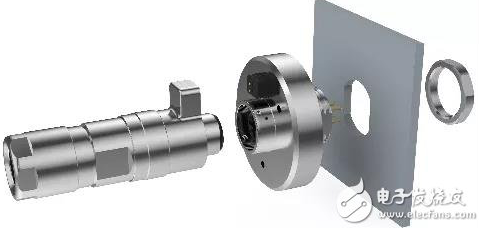

Driven by the trend of intelligent connector, avionics has developed a series of intelligent push-pull connectors -- SM12T series.
1. Product Introduction
The SM12T series connectors provide the following functions for industrial interconnection
1) Connector node arrangement conforms to iec61076-2-101, compatible with our existing M12 push-pull series connector;
2) There are two installation methods of panel front installation and panel back installation, which provide PCB welding (socket), crimping (plug) and other methods, and meet the requirements of IP50 (IP67 can be customized) after insertion.
3) With the function of status detection and status indicator light display, the status of connector can be visually observed.
4) The connector can realize the memory function of the corresponding link parameters, read the electronic tag and pair the head seat.
5) Intelligent push-pull connector can be accessed through serial interface to prevent unauthorized use of the connector and other functions, but also convenient for later management and maintenance.
2. Performance Index
Rated Current:
Withstand Voltage:1500 V AC
Insulation Resistance:≥5000MΩ（normal）
Service life:≥500 times
Operation Temperature:-40℃~85℃
Supply Voltage:DC5±5%
Power Consumption:≤0.2W
