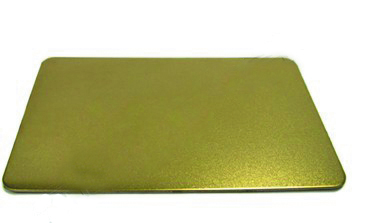

Stainless steel blasting plate is one of the products of stainless steel. This process uses zirconium beads to process the surface of the board through mechanical equipment, so that the surface of the board is finely beaded sand surface, and the blasting is realized through complicated process. Board surface. Because of the sandblasting appearance of the surface shape of the stainless steel plate, it is called a stainless steel sandblasting plate.
Product features
The sandblasting board refers to the processing of the surface of the board by the zirconium beads through the mechanical equipment, so that the surface of the board presents a fine bead-like sand surface, and through a complicated process to achieve a beautiful color on the surface of the sandblasting board, adding a pleasing aesthetic.
Product color

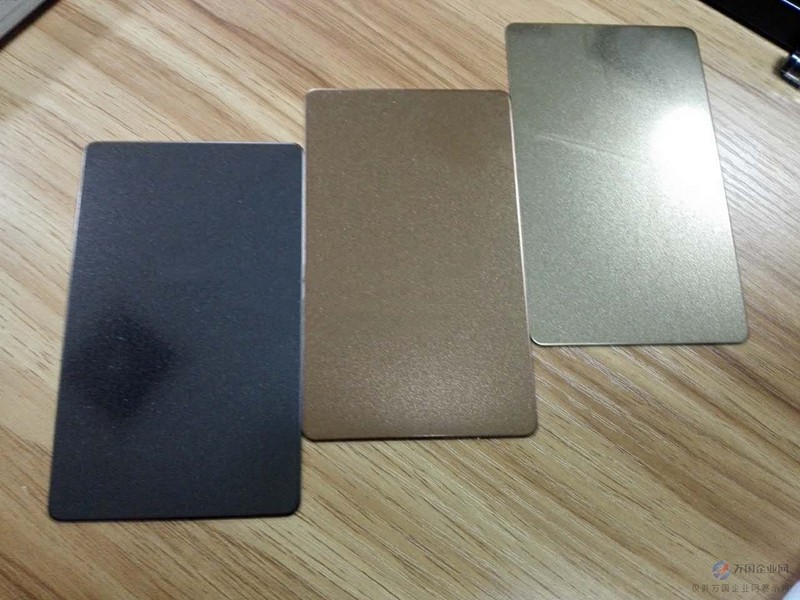

Stainless steel blasting plates are available for users to choose from: light golden yellow, golden yellow, sapphire blue, black gun color, brown, young color, zirconium gold, bronze, rose. The stainless steel blasting board not only retains the excellent mechanical properties and corrosion resistance of the stainless steel blasting board, but also has a colorful and beautiful color. It adds a pleasing aesthetic to the stainless steel blasting board, and the stainless steel blasting board also has better than the base. The corrosion resistance and other properties will be widely used in various fields of modern social life and national economy.
Product Size
Stainless steel blasting board materials are mainly 201, 304, 316, etc., the conventional size is 1220mm * 2400mm, 1000mm * 2000mm, 1220mm * 3050mm, etc., can be opened and fixed. The thickness is between 0.3mm and 6mm.
Craftsmanship
Stainless steel blasting board is a new environmentally friendly material. The stainless steel blasting board is manufactured by simply applying a layer of coloring agent to the surface of the stainless steel blasting board to produce a colorful color, which is achieved through a very complicated process. At present, the method adopted is mainly an acid bath oxidation coloring method, which forms a transparent chromium oxide film on the surface of the stainless steel blasting plate. After the light is irradiated onto the surface, different colors are produced due to different film thicknesses. The entire process of color processing a stainless steel blasting plate includes two steps of coloring treatment and hard film treatment. The coloring treatment is carried out in a hot chromium sulfuric acid solution tank, and after the stainless steel sandblasting board is immersed, a one-thickness oxide film having a diameter of only one hair filament is formed on the surface. As the time elapses and the thickness of the oxide film increases, the color of the surface of the stainless steel blasting plate is also constantly changing. When the thickness of the oxide film is increased from 0.2 μm to 0.45 μm, the color of the surface of the stainless steel blasting plate will appear blue, gold, red, and green in turn. By controlling the immersion time, the desired stainless steel blasting plate can be obtained. After the hard film treatment, a stable compound such as chromium trioxide or chromium hydroxide can be formed on the cathode. It not only fills in the tiny pores in the oxide film, but also improves the wear resistance, corrosion resistance and heat resistance of the oxide film, so that the overall performance of the material is greatly improved. The surface of the stainless steel blasting plate is more resistant to corrosion and wear than ordinary stainless steel. It can withstand more than 10 years of salt spray corrosion and 30 years of ultraviolet light without discoloration. The main body is integrated with the colored layer to maintain the basic structure and basic properties of the original stainless steel blasting plate, and can be subjected to conventional molding and drawing forming processes. The colored surface of the stainless steel sandblasting board has the advantages of colorful color, bright color, bright color, softness, elegance and smoothness.
Construction method
Stainless steel plate sandblasting board decoration generally uses material of 0.6-2mm thickness of 201 or 304 material. According to the thickness and decorative part of the stainless steel plate, the installation method can be divided into two types: a keel with a bottom plate type and a keel without a bottom plate type. Generally, a panel having a thickness of less than 1.2 mm is generally provided with a keel type bottom plate type mounting method. Panels with a thickness greater than 1.2 mm are often provided with a keel-free bottom plate mounting method. The former is mostly used for indoor wall cylinders or moisture-proof and waterproof locations, such as the facade decoration without rain, the keel is made of wooden keel, angle steel welded keel, light steel keel. The latter is mostly used for the decoration of outdoor wall surfaces. The keel is made of angle steel welded keel and light steel keel.
The above construction process is basically the following steps:
Installation of the dragon skeleton: the installation of the base layer dragon skeleton, the installation process can refer to the construction process of the wooden keel or the light steel keel, and repeatedly check the verticality and the flatness.
Fixed bottom plate: The bottom plate generally adopts 5-12mm thick plywood. The construction method and requirements are the same as ordinary wooden cover panel construction. However, when the keel is light steel keel or angle steel keel, first drill the hole on the keel with electric drill. The self-tapping screws secure the bottom plate to the keel and the screw head cannot be raised above the floor surface.
Fixed panel: The color stainless steel plate should be finished according to the design size and shape requirements before installation. When there is a bottom plate, apply the universal glue on the back of the bottom plate and the stainless steel respectively, and gently paste the prepared stainless steel plate on the bottom plate. When there is no bottom plate, the pre-machined stainless steel plate is fixed on the light steel keel with stainless steel screws or directly welded to the keel.
Closing edge: edge processing, at the interface between stainless steel or at the corners of the corners and corners, the method of filling and sealing with the method of filling the sealant and pressing the stainless steel tank.
Remove the protective film from the top layer; wipe the surface of the colored stainless steel with a soft, dry cloth and remove the protective film from the top.
Product Usage
The stainless steel blasting plate is colored on a stainless steel blasting plate. Stainless steel blasting plate refers to the processing of stainless steel plate surface by mechanical equipment with zirconium beads, so that the surface of the plate presents a fine bead-like sand surface, forming a unique decorative effect. Stainless steel sandblasting decorative board use: mainly used in building decoration, elevator decoration, industrial decoration, facility decoration and other stainless steel products.
