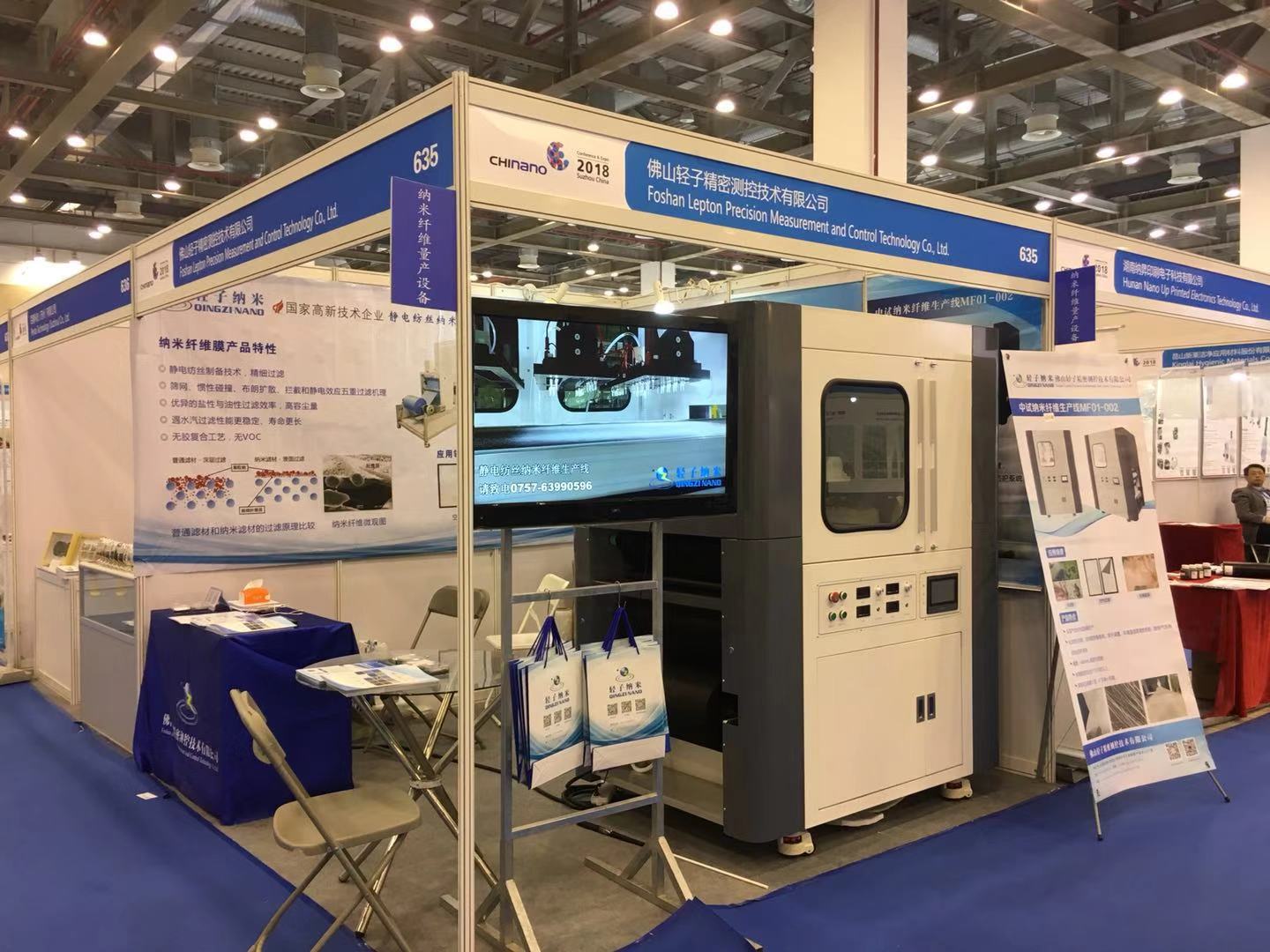

The Middle-scale Nanofiber Electrospinning Production Line MF01-002 was showing on the 9th China international nanotechnology industry expo.
Qingzi Nano’s MF01 is an equipment of series of nanofiber production line, including needle spinning( MF01-001 and MF01-002) and needle-free spinning (MF01-003 and MF01-004) series. It is based on electrospinning technology to produce nanofiber membrane in high efficiency and quantity production, which can meet the growing need for nanofiber applications and achieve industrial benefits.
Automatic roll-to roll system;
Precious feeding system: corrosion resistance, high-voltage resistance;
Temperature and humidity controllable;
Safeguard system;
Small risk with big return;
Stable production, easy to maintain, can be copied to expand productivity as a unit;
Technical electrospinning multi-nozzle array system: 128 needles;
Speed of roll-to roll: 0-5m/min, adjustable;
Continuous operation time: ≥ 8 hours;
Electrospinning high-voltage supply: 0-50KV, adjustable;
Effective width of nanofiber layer: 660mm.
