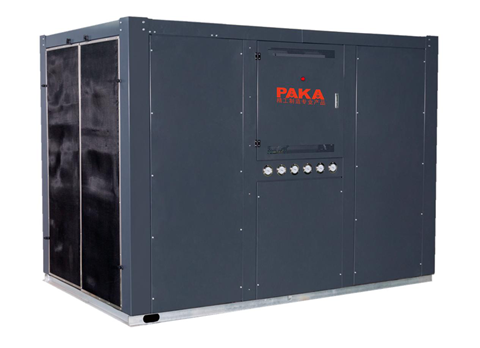

Tunnel type heat pump dryer

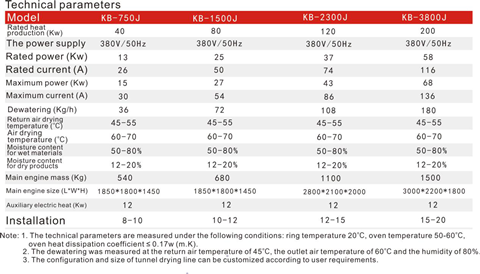

Parameters of tunnel type heat pump dryer

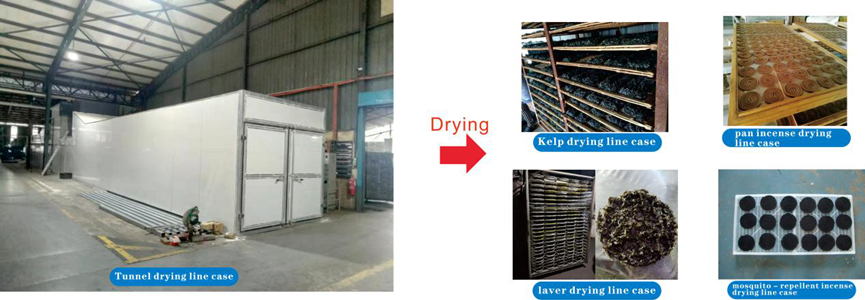

Tunnel drying line
The tunnel drying line is composed of heat preservation tunnel body, circulation system, heat pump dryer system, transmission system and control system.
Heat pump dryer has the following advantages:
1. The baked product is heated inside and outside at the same time. The temperature difference between inside and outside is small.
2. Fast baking speed, high efficiency, can shorten the baking time 1/6-1/4, greatly shorten the production cycle.
3. Reach the same production capacity, the total power is small, the most conservative energy saving rate is more than 20%.
4. Large energy transmission per unit area, small size, saving space and construction cost.
5. It can be used in conjunction with rail lines to effectively control drying speed, reduce handling and save manpower.
6. The temperature can be controlled in stages to meet the needs of different products. Reasonable temperature curve ensures stable product quality.

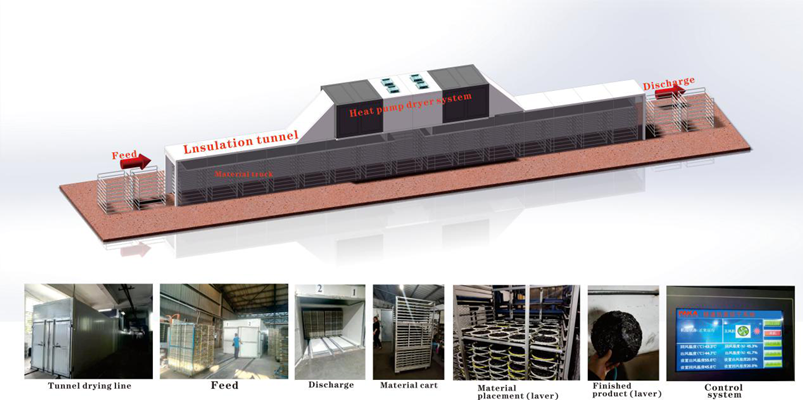

Heat pump dryer schematic diagram of tunnel drying line
