Product Details
- Place of Origin:
- Zhejiang, China
- Brand Name:
- Daier
- Model Number:
- LAS3-16F-11D
- Protection Level:
- IP65, IP65
- Max. Current:
- 3A, 3A
- Max. Voltage:
- 250VAC, 250VAC
- Item:
- 16mm Electrical High Button Dot LED Stainless Steel Push Button Switch
- Material:
- Metal
- Function:
- Momentary/Latch
- Certificate:
- CE,Rohs
- Electrical Life:
- 100,000Cycles
- OEM&ODM:
- YES
- Free Sample:
- YES
Packaging & Delivery
- Selling Units:
- Multiple of
- Package size per batch:
- 15X10X4 cm
- Gross weight per batch:
- 1.2 kg

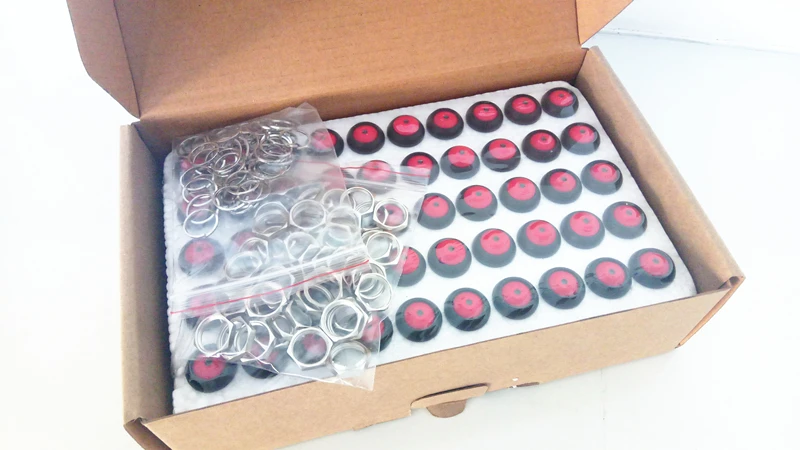

- Package Type:
- 40pcs/box for 16mm Miniature Electrical 12V Hight Button Dot LED Stainless Steel Push Button Switch
- Picture Example:
![package-img]()
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 40000 >40000 Est. Time(days) 10 To be negotiated
16mm Miniature Electrical 12V Hight Button Dot LED Stainless Steel Push Button Switch
TECHNICAL DATASHEET
Whether with LED | Without LED |
Operation Type | Momentary/Latch |
Crust Material | Stainless Steel/Copper Plated Ni/Aluminium/Copper Plated Cr/Copper Plated with Black |
Color | Metal |
Degree of Protection | IP65 |
Contact Type | 1NO /1NC |
Maximum Voltage | 250VAC |
Thermal Current | 3A |
Minimum Applicable Load | 5V AC/DC,1mA |
Contact Material | Silver Plated |
Terminal Style | .110” Solder/Quick Connect |
Operating Temperature | -25°C ~+55°C |
Operating Humidity | 45%~85% RH |
Contact Resistance | 50mΩ max. |
Insulation Resistance | 100mΩ min. (500V DC megger ) |
Vibration Resistance | 10~55HZ, amplitude 1.2mm p-p |
Degree of Protection | >10g |
Electrical Life | 100,000 operations min. (at full rated load) |
Mechanical Life | Maintained:1,000,000 operations min. Momentary:1,000,000 operations min. |
Dielectrical Life | Switch Unit: 2,000VAC,1 minute between terminals of same pole; 1,000VAC,1minute between contact and lamp terminals. Illumination Unit:2,000VAC,1min. Between live part/ground |
Soldering Temperature | 20W/5 seconds or 260 °C/3 seconds |
CERTIFICATIONS
PAYMENT AND SHIPMENT
L/C, Paypal,T/T,Westernunion,MoneyGram ,or other method.
Ship worldwide by sea, air, DHL, UPS,TNT, FEDEX and so on.
PRODUCING DEPARTMENTS
Our Advantage
1)Professional team, standard processes, standard production, quality products.
2)Safety, on-time delivery, credit suppliers.
3) Custom Available
Others
Please kindly inform us which items you are interested, and the best price will be provided you .
We will reply you ASAP after receipting of your inquiry .
Any questions about more items, please feel free to contact us.
We are sincerely looking forward to establish cooperative relationship with you.
Free sample is available !
If you need any parts, please kindly send us your drawings or sample for quotation.
ABOUT USWe are engaged in producing 9 categories and about 2,000 models of switches and etc. Most of our products have passed safety certifications as UL, cULus, CE, CCC, CQC. and lots of our products are made with RoHS compliant materials.
80% of our products are exported to Europe, North and South America. We satisfy all our customers with advanced products, competitive prices, fast delivery and one-stop service.
With a principle of being creative, advanced and honest, we are always improving our products and services to better satisfy you customers. We believe it"s our mission to boost our customer"s business, and then our customers will reward us with leadership sales and long-term relationships.
Join us, and we will be your best choice! Waterproof Switch 240V Waterproof Switch 240V Waterproof Switch 240V Waterproof Switch 240V Waterproof Switch 240V
Customer Reviews total 0 items
