Product Details
- Place of Origin:
- Zhejiang, China
- Brand Name:
- Daier
- Model Number:
- LAS2316F-11EP
- Protection Level:
- IP67, IP67
- Max. Current:
- 3A, 3A
- Max. Voltage:
- 250VAC, 250VAC
- Item:
- 16mm Illuminated Electrical Stainless Steel Float Switches
- Material:
- Metal
- Function:
- Latch/Momentary
- Certificate:
- CE,Rohs
- Electrical Life:
- 100,000Cycles
- OEM&ODM:
- YES
- Free Sample:
- YES
Packaging & Delivery
- Selling Units:
- Multiple of
- Package size per batch:
- XX cm
- Gross weight per batch:
- 1.1 kg
- Package Type:

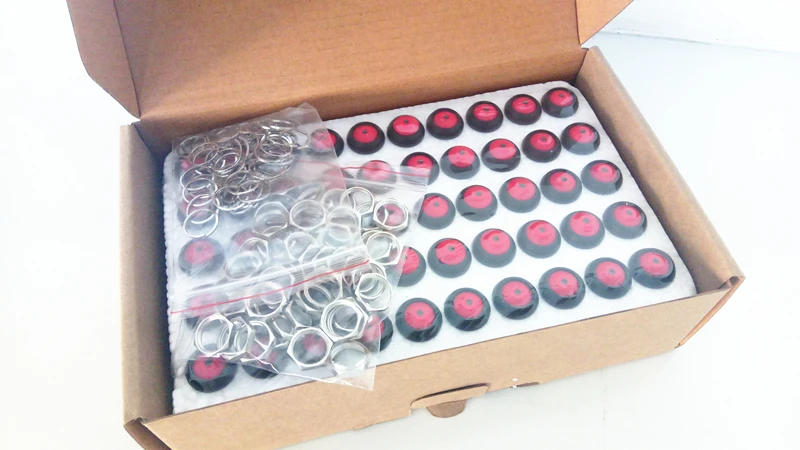

- 40PCS/BOX for 16mm Power Symbol Illuminated Electrical Stainless Steel Float Switches
- Picture Example:
![package-img]()
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 40000 >40000 Est. Time(days) 10 To be negotiated
16mm Power Symbol Illuminated Electrical Stainless Steel Float Switches
TECHNICAL DATASHEET
Whether with LED | With LED |
Operation Type | Latch/Momentary |
Crust Material | Stainless Steel/Copper Plated Ni/Aluminium/Copper Plated Cr/Copper Plated with Black |
Color | Metal |
Degree of Protection | IP65 |
Contact Type | 1NO /1NC |
Maximum Voltage | 250VAC |
Thermal Current | 3A |
Minimum Applicable Load | 5V AC/DC,1mA |
Contact Material | Silver Plated |
Terminal Style | .110” Solder/Quick Connect |
Operating Temperature | -25°C ~+55°C |
Operating Humidity | 45%~85% RH |
Contact Resistance | 50mΩ max. |
Insulation Resistance | 100mΩ min. (500V DC megger ) |
Vibration Resistance | 10~55HZ, amplitude 1.2mm p-p |
Degree of Protection | >10g |
Electrical Life | 100,000 operations min. (at full rated load) |
Mechanical Life | Maintained:1,000,000 operations min. Momentary:1,000,000 operations min. |
Dielectrical Life | Switch Unit: 2,000VAC,1 minute between terminals of same pole; 1,000VAC,1minute between contact and lamp terminals. Illumination Unit:2,000VAC,1min. Between live part/ground |
Soldering Temperature | 20W/5 seconds or 260 °C/3 seconds |
