Product Details
1.Product Description
LED fluorescent lamp, commonly known as straight tube lamp, is a substitute for traditional fluorescent lamp, embodied in energy saving and environmental protection. The size installation method is the same as the traditional fluorescent lamp, but the principle of luminescence is to use LED semiconductor chip for luminescence. They are divided into two categories according to their shell materials, 1 are glass, and 1 are aluminum and PC.
2.Specification

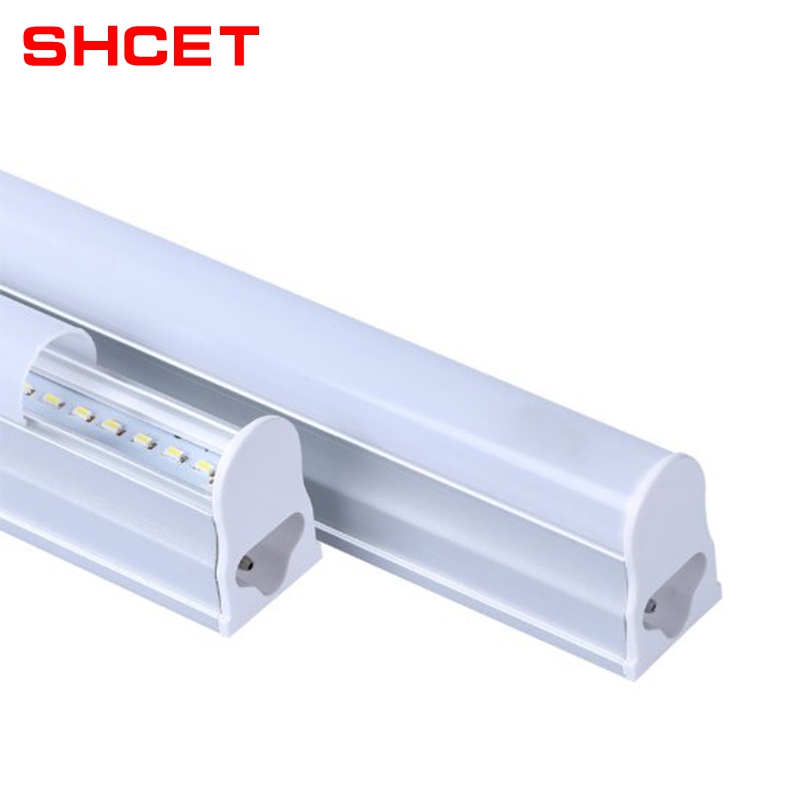

T8 LED Tube
| Model | CET-T8/B-0.6M | CET-T8/B-0.9M | CET-T8/B-1.2M | CET-T8/B-1.5M | CET-T8/B-2.4M |
| Lamp Size | 0.6mx∅26mm | 0.9mx∅26mm | 1.2mx∅26mm | 1.5mx∅26mm | 2.4mx∅26mm |
| Lamp Power | 10W | 14W | 18W | 22W | 36W |
| Lamp Flux | 900LM | 1400LM | 1800LM | 2200LM | 3600LM |
| LED Chips Model | 2835SMD 0.2W | 2835SMD 0.2W | 2835SMD 0.2W | 2835SMD 0.2W | 2835SMD 0.2W |
| Lamp Material | AL+ PC | ||||
| Shine Angle | 120° | ||||
| Surge protector | 2.5KV | ||||
| CRI | Ra>70-75 Or 80-85 | ||||
| Power Factor | 0.6-0.7 Or 0.9-0.97 | ||||
| Input Voltage | AC85-277V Or AC165-265V | ||||
| Color Temperature | 3000-3500K; 4000-4500K; 5000-5500K;6000-6500K; | ||||
| Remark | the G13 base can be: rotary or non-rotary | ||||
| Certificates | BIS ,SASO ,CE-LVD-EMC,RoHs ,IES ,TUV, EAC, ISO9001, SAA, Intertek TIR | ||||
T8 LED Glass Tube
| Model | CET-T8/G-0.6M | CET-T8/G-1.2M | CET-T8/G-1.5M |
| Lamp Size | 0.6mx∅26mm | 1.2mx∅26mm | 1.5mx∅26mm |
| Lamp Power | 9W | 18W | 22W |
| Lamp Flux | 900LM | 1800LM | 2200LM |
| Lamp Material | Glass Tube | ||
| Shine Angle | 320° | ||
| Surge protector | 2.5KV | ||
| CRI | Ra>70-75 Or 80-85 | ||
| Power Factor | 0.6-0.7 Or 0.9-0.97 | ||
| Input Voltage | AC85-265V Or AC165-265V | ||
| Color Temperature | 3000-3500K; 4000-4500K; 6000-6500K; | ||
| Certificates | BIS ,SASO ,CE-LVD-EMC,RoHs ,IES , EAC, ISO9001, SAA, Intertek TIR | ||
T5 LED Integrated Fixture
| Model | CET-T5 fixture-0.3M | CET-T5 fixture-0.6M | CET-T5 fixture-0.9M | CET-T5 fixture-1.2M | CET-T5 fixture-1.5M | CET-T5 fixture-2.4M |
| Lamp Size | 0.3m | 0.6m | 0.9m | 1.2m | 1.5m | 2.4m |
| Lamp Power | 5W | 8W | 12W | 18W | 22W | 36W |
| Lamp Flux | 450LM | 900LM | 1260LM | 1800LM | 2200LM | 3600LM |
| LED Chips Model | 2835SMD 0.2W | 2835SMD 0.2W | 2835SMD 0.2W | 2835SMD 0.2W | 2835SMD 0.2W | 2835SMD 0.2W |
| Lamp Material | AL+ PC | |||||
| Shine Angle | 120° | |||||
| Surge protector | 2.5KV | |||||
| CRI | Ra>70-75 Or 80-85 | |||||
| Power Factor | 0.6-0.7 Or 0.9-0.97 | |||||
| Input Voltage | AC85-277V Or AC165-265V | |||||
| Color Temperature | 3000-3500K; 4000-4500K; 5000-5500K;6000-6500K; | |||||
| Certificates | BIS ,SASO ,CE-LVD-EMC,RoHs ,IES ,TUV, EAC, ISO9001, SAA, Intertek TIR | |||||
T8 LED Integrated Fixture
| Model | CET-T8 fixture-0.6M | CET-T8 fixture-0.9M | CET-T8 fixture-1.2M | CET-T8 fixture-1.5M | CET-T8 fixture-2.4M |
| Lamp Size | 0.6m | 0.9m | 1.2m | 1.5m | 2.4m |
| Lamp Power | 8W | 12W | 18W | 22W | 36W |
| Lamp Flux | 900LM | 1260LM | 1800LM | 2520LM | 3600LM |
| LED Chips Model | 2835SMD 0.2W | 2835SMD 0.2W | 2835SMD 0.2W | 2835SMD 0.2W | 2835SMD 0.2W |
| Lamp Material | AL+ PC | ||||
| Shine Angle | 120° | ||||
| Surge protector | 2.5KV | ||||
| CRI | Ra>70-75 Or 80-85 | ||||
| Power Factor | 0.6-0.7 Or 0.9-0.97 | ||||
| Input Voltage | AC85-277V Or AC165-265V | ||||
| Color Temperature | 3000-3500K; 4000-4500K; 5000-5500K;6000-6500K; | ||||
| Certificates | BIS ,SASO ,CE-LVD-EMC,RoHs ,IES ,TUV, EAC, ISO9001, SAA, Intertek TIR | ||||
T8 led fluorescent fixture
| Model | CET523-0.6M led fixture | CET523-1.2M led fixture | CET523-1.5M led fixture | CET523-2.4M led fixture |
| Lamp Size | 600x75x23mm | 1200x75x23mm | 1500x75x23mm | 2400x75x23mm |
| Lamp Power | 18W | 36W | 40W | 72W |
| Lamp Flux | 1440LM | 2880LM | 3200LM | 5760LM |
| Lamp Material | AL+ PC | |||
| Shine Angle | 120° | |||
| Surge protector | 2.5KV | |||
| CRI | Ra>70-75 Or 80-85 | |||
| Power Factor | 0.6-0.7 Or 0.9-0.97 | |||
| Input Voltage | AC85-277V Or AC165-265V | |||
| Color Temperature | 3000-3500K; 4000-4500K; 5000-5500K;6000-6500K; | |||
| Certificates | BIS ,SASO ,CE-LVD-EMC,RoHs ,IES ,TUV, EAC, ISO9001, SAA, Intertek TIR | |||
3.Product Detail
4.Features
1.environmental protection lamps, protect the earth
2.efficient conversion, reduce fever
3.quiet and comfortable, no noise.
4.soft light, protect your eyes.
5.no ultraviolet rays, no mosquitoes.
6.Voltage adjustable.
7.save energy and life longer.
8.solid and reliable, long term use.
9.compared with ordinary fluorescent lamps, LED fluorescent lamps need no ballast, no starter and no strobe.
10.maintenance free, frequent switching will not cause any damage.
11.Safe and stable quality can withstand 4 kV high voltage, low heat dissipation, can work at low temperature - 30 high temperature 55.
12.good anti vibration, easy to transport.
5.More Products
6.Application
1.large factories, production workshops, workstations, office interior lighting;
2.shopping mall interior lighting;
3.underground parking lot, 24 hours of use, power saving is considerable.
4.Hospital indoor lighting;
5.Lighting in school classrooms;
6.family.
7.Packaging&Shipping
8.Certificate
9.About Us
10.FAQ
Q1: Can I have a sample for testing?
A: Yes, we can offer free sample, but you should afford the shipping cost.
Q2: Can I add my logo on the products?
A: Yes, OEM and ODM are available for us.
Q3: How can I get the after-service?
A: We will send you the free spare parts if the problems caused by us. If the products cannot be repaired, we will send you new free quantity together with next order.
Q4: Do you have inspection procedures for products?
A: our products100% self-inspection and testing before packing.
Q5: Can I have a visit to your factory before the order?
A: Sure, welcome to visit our factory.
Here is our factory address: #7 Tongyi Industrial Area, Zhongshan City, Guzhen
Our factory is near Guangzhou airport, and we can pick you up in the airport, Hotel booking service is available.
Q6: How about delivery time of the order?
A: 15-20 days after getting deposit.
Q7: How about payment terms?
A: 20%-30% deposit, the rest payment balance against B/L. If have regular order and good order quantity, we can give delay payment.
