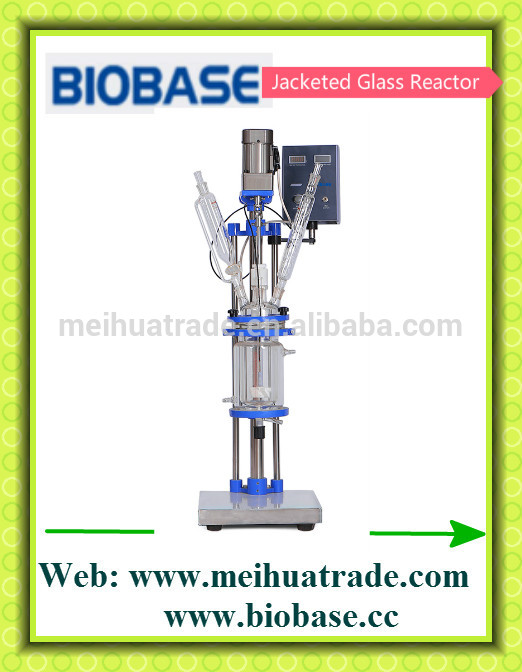

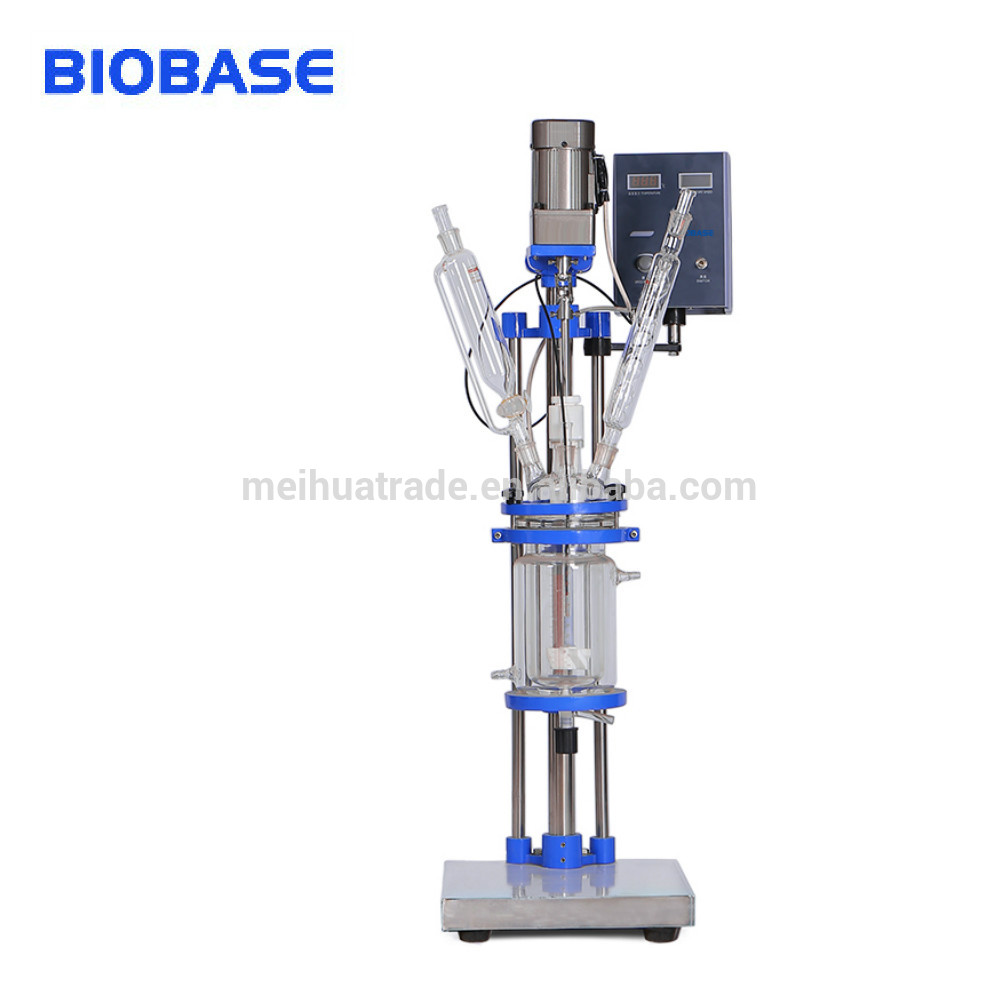

BIOBASE Jacketed Glass Reactor
Jacketed glass reactor is designed double-layer glass. The reaction material is put into the inner, which can be stirred. In the interbed with different cold and hot medium (refrigerating fluid, hot water and hot oil), do some heat circulation and cooling reaction. Under the constant temperature and ordinary pressure, as well as negative pressure, stirring reaction can be done in seal glass reactor, also back-flow, distillation etc.
Features:
* GG17 high-borosilicate glass, resistant to strong acidic properties of materials, experiment temperature -80°C to 250°C.
* The cover is easy to disassemble, clean and install.
* Stirring mechanical sealing, keeps higher vacuum degree.
* Glass (PTFE) discharge valve, non-dead angle mixing, fast emptying, no residue.
* Frequency control speed gear motor, smooth running, high torque, automatic booster, no spark, noise free, long life.
Optional Equipment:
* Circulating water vacuum pump: To provide a vacuum source.
* Refrigerated Circulator: Low temperature reaction and re-flux, condensation.
* Circulating water/oil bath: Thermal power.
Technical parameter:
Model | JGR-1L | JGR-2L | JGR-3L | JGR-5L | JGR -10L | JGR -20L | JGR -30L | JGR -50L | JGR -100L | ||
Stirring Power | 60W | 120W | 180W | ||||||||
Stirring Speed | 0-600rpm | ||||||||||
Max Speed | 1300rpm | ||||||||||
Stirring shaft Diameter | 12mm | 14mm | 16mm | 18mm | |||||||
Reaction Flask Capacity | 1L | 2L | 3L | 5L | 10L | 20L | 30L | 50L | 100L | ||
Power Supply | AC220V, 50/60HZ | ||||||||||
Motor Torque(g/cm) | 2000 | 2400 | 4800 | 1000 | 1200 | 1500 | 3000 | ||||
Note | Floor Type | 304 All Stainless Steel Frame | |||||||||
Package size(mm) | 1250*550*550 | 1330*550*550 | 1300*550*600 | 1520*600*680 | 1620*600*680 | 1950*820*900 | |||||
G.W(kg) | 40 | 45 | 91 | 95 | 110 | 116 | 160 | ||||
