Product Details

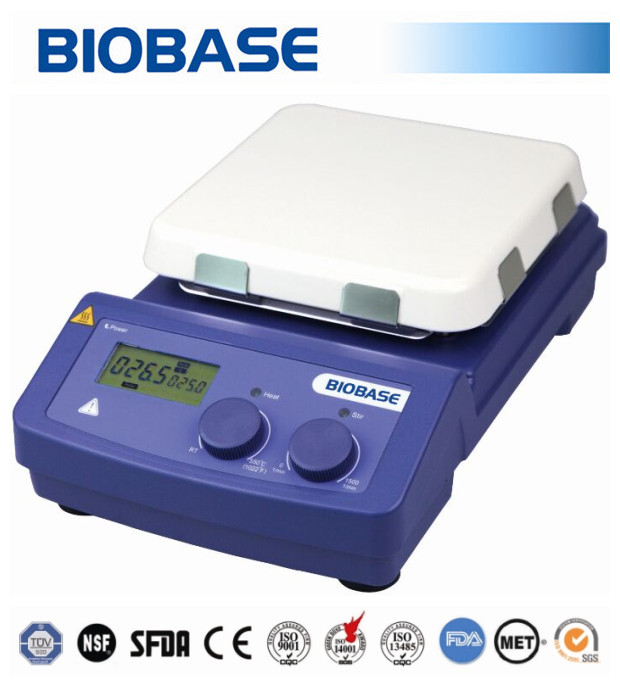

3L /10L /20L Hotplate Magnetic Stirrer /High Temperature Stirrer
Model | MS7-H550-Pro | MS7-H550-S | MS-H-Pro+ | MS-H-Prot | MS-H-S | MS-H280-Pro |
Work Plate Size | 184x184mm | 135mm | ||||
Work Plate Material | Glass ceramic | Stainless steel with ceramic coated | ||||
Max. Stirring Capacity | 20L | 10L | 20L | 3L | ||
Motor Type | Brushless DC motor | Shaded pole motor | Brushless DC motor | DC motor | Brushless DC motor | |
Motor Input | 18W | 15W | 18W | 5W | ||
Motor Output | 10W | 1.5W | 10W | 3W | ||
Speed Range | 100~1500rpm | 0~1500 rpm | 100~1500rpm | 0~1500rpm | 100~1500rpm | |
Speed Display | LCD | Scale | LCD | Scale | LED | |
Speed Display Accuracy | ±1rpm | / | ±1rpm | / | ||
Heating Output | 1000W | 500W | ||||
Heating Temp. Range | RT-550℃, increment 1 | RT-550℃, increment 5 | RT-340℃, increment 1 | RT~340℃ | RT-280℃, increment 1 | |
Control Temp. Precision | ±1(<100℃) ±1%(>100℃) | ±10℃ | ±1(<100℃), ±1%(>100℃) | / | ±1(<100℃) ±1%(>100℃) | |
Max Temp. | 580℃ | 360℃ | 350℃ | 320℃ | ||
Temp. Display | LCD | LED | LCD | Scale | LED | |
Display Temp. Accuracy | ±0.1℃ | ±1℃ | ±0.1℃ | / | ±1℃ | |
External Temp. Sensor | Optional PT1000 | / | Optional PT1000 | |||
Max. Stirrer Bar Length | 80mm | 50mm | ||||
Interface | RS232 | / | RS232 | / | / | |
Protection Type | IP21 | IP42 | IP21 | |||
Ambient Temp. | 5-40℃ | |||||
Relative Humidity | 80% | |||||
Power Consumption | 1050W | 1030W | 550W | 530W | 515W | |
Power Supply | AC110/220W±10%, 50/60Hz | |||||
External Size(W*D*H) | 215*360*112mm | 160*280*85mm | 150*260*80mm | |||
Package Size(W*D*H) | 280*420*200mm | 210*345*160mm | 225*290*190mm | |||
Gross Weight | 6.5kg | 3.5kg | 2.5kg | |||
Relative Stirrer
Hotplate Magnetic Stirrer Hotplate Magnetic Stirrer Magnetic Stirrer 1 Magnetic Stirrer 2
Multi-Position Magnetic Stirrer Overhead Stirrer 1 Overhead Stirrer 2 Hotplate Magnetic Stirrer
BIOBASE is a professional manufactuter of laboratary since 1999. Our main products are Biosafety Cabinet(I, II, III), Laminar Flow Cabinet, Fume Hood, Biochemistry Analyzer, Reagent, Autoclave and Incabutor. We have more than 1000 eployees and 20000 square meters production base. Our output reaches 10000 units per year. Pursuing the highest quality is the tenet of BIOBASE. We hope everyboy will enjoy BIOBASE service to keep away from the infectious disease.
